DISASSEMBLY

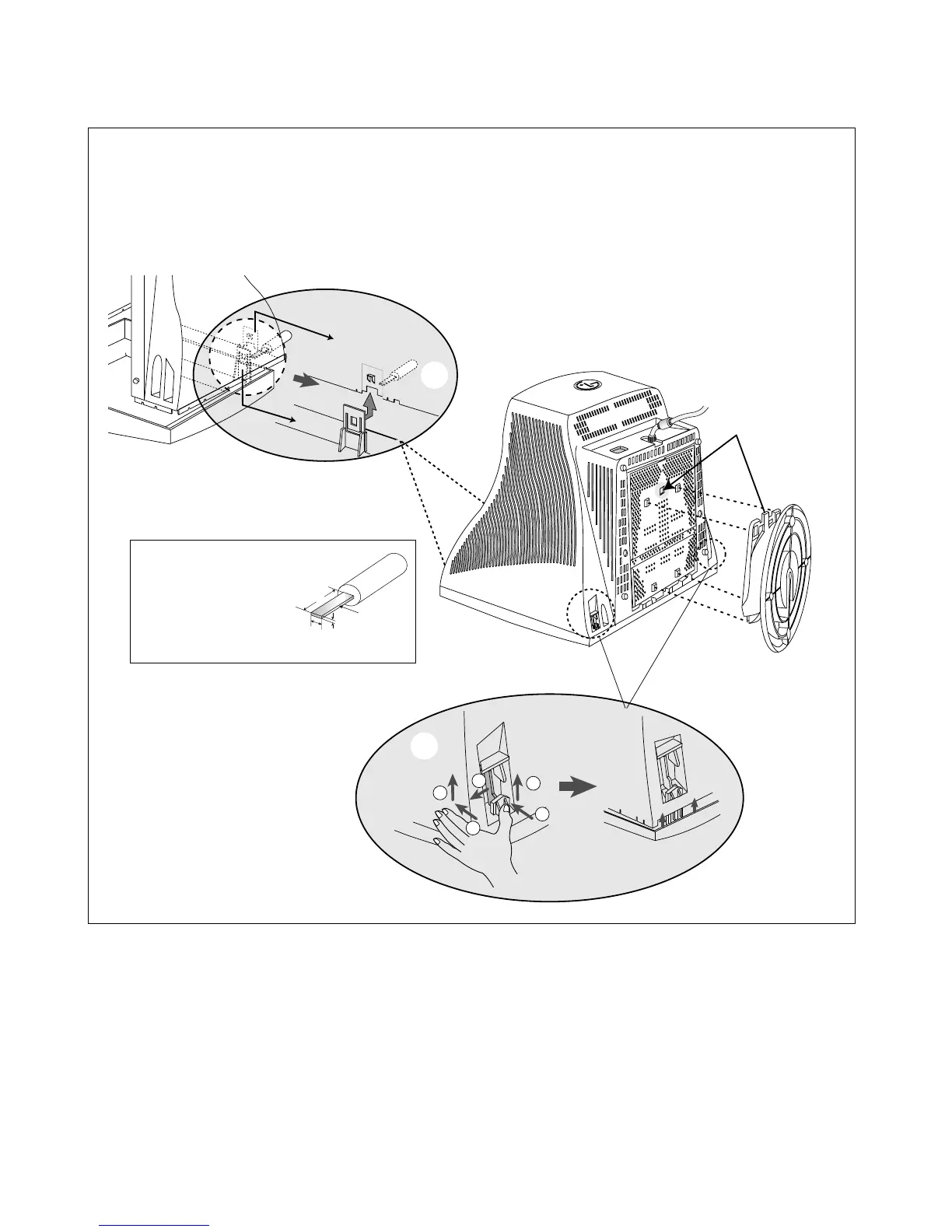

1. TILT/SWIVEL & BACK COVER REMOVAL
1) Set the monitor face downward.
2) Carefully remove the Tilt/Swivel by pulling it upward.
3) Pressing the latch (b), Back cover by pushing it upward.
4) Release the latch (c). (See Tip Spec.)
5) Slide the Back Cover away from the Front Cabinet of the monitor.
Tip
C
B
A
Tip Spec.
A(Width) : 5.0~15.0mm
B(Depth) : 0.6~0.9mm
C(Height) : 12.0mm
(a)
Back Cover
Cabinet
(b)
(c)
1
2
2
3
3
To Next Page
