LG TT-C186HLA0 User Manual

–6–
Timer Cancel
Program Week
Hour Min
Holiday
Set/Clr
RESET
ZONE
1234
AUTO SWING OPERATION FAN SPEED
Program set
SUB FUNCTION SET TEMP
Room Temp
HI
MED
LO
Defrost
Filter
Preheat
Out door
Time
Timer
On
Set no. Time
Off
01 03 05 07 09 11 13 15 17 19 21 23
3
9
11
13
14
10
12
17
15
2
1
5
4
8
7
16
1 Operation display
Displays the operation conditions.
2 On/Off Button
Operation starts when this button is pressed, and
stops when the button is pressed again.
3 Set Temperature Button
Used to set the temperature when the desired tem-
perature is obtained.
4 FAN Operation Button
Used to circulate room air without cooling or heating.
5 Fan Speed Button
Used to set the desired fan speed.
6 Operation Mode Selection Button
Used to select the operation mode.
• Auto Operation Mode
• Cooling Operation Mode
• Soft Dry Operation Mode
• Heating Operation Mode(except cooling model)
7 Auto Swing Button
Used to swing up and down.
8 Room Temperature Checking Button
Used to check the room temperature.
9
Timer Cancel Button
Used to cancel the timer.
10 Timer Set Button
Used to set the timer when the desired time is obtained.
11 Week Button
Used to set the day of the week.
12 Program Button
Used to set the weekly timer.
13 Holiday Button
Used to set the holiday of the week.
14 Time Set Button
Used to set the time of the day and change the
time in the weekly timer Function.
15 Set and Clear Button
Used to set and clear the weekly timer.
16 Jet Cool Button
Used to select jet cool mode.
17 Reset Button
Used to set the current time and clear the setting time.

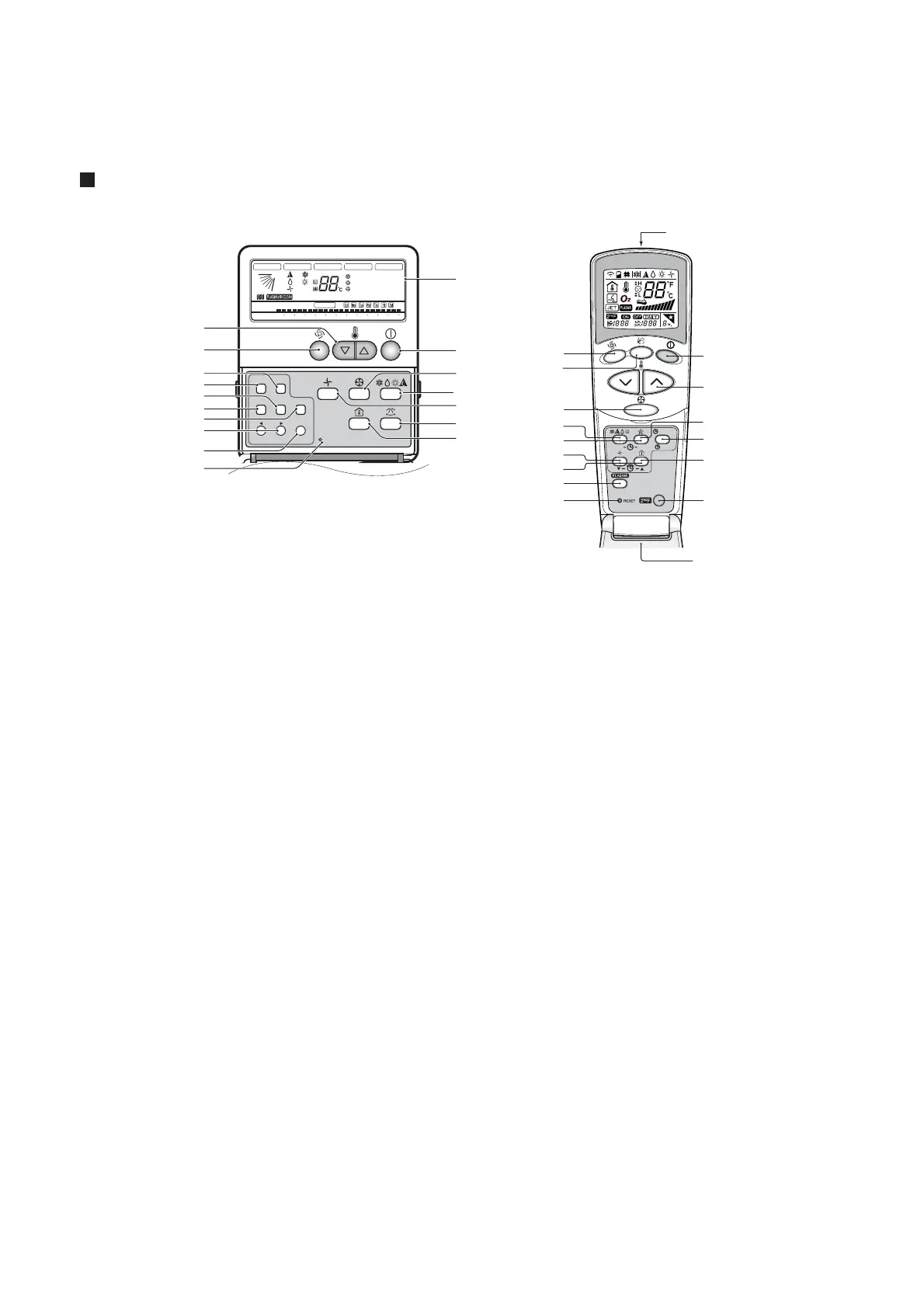

Remote Controller
6
1
3
5
4
7
9
10
12
2
8
1. START/STOP BUTTON
Used to turn off/on the unit.
2. OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
3. ROOM TEMPERATURE SETTING BUTTONS
Used to select the room temperature.
4. INDOOR FAN SPEED SELECTOR BUTTON
Used to select fan speed in four steps
low, medium, high and CHAOS.
5. JET COOL BUTTON
Used to start or stop the speed cooling.
(It operates fan in super high speed in cooling mode)
6. CHAOS SWING BUTTON
Used to stop or start louver movement and set the
desired up/down airflow direction.
7. ON/OFF TIMER BUTTONS
Used to set the time of starting and stopping
operation.
8. TIME SETTING BUTTONS
Used to adjust the time.
9. TIMER SET/CANCEL BUTTON
Used to set and to cancel the timer operation.
10. SLEEP MODE AUTO BUTTON
Used to set sleep mode auto operation.
11. AIR CIRCULATION BUTTON
Used to circulate the room air without cooling or
heating.
12. ROOM TEMPERATURE CHECKING BUTTON
Used to check the room temperature.
13. PLASMA BUTTON
Used to start or stop the plasma-purification
the botton of buttons.
14. RESET BUTTON
Used prior to using modes printed in blue at
13
14
11
6
Wireless Remote Controller(Only for “ PLASMA” model )
ON
OFF
CANCEL
SET
Flip-up door
(opened)
Signal transmitter
15
15. 2nd F BUTTON
Used prior to resetting time.
function.
Wired LCD Remote Controller

LG TT-C186HLA0 Specifications
