MAKING CONNECTIONS

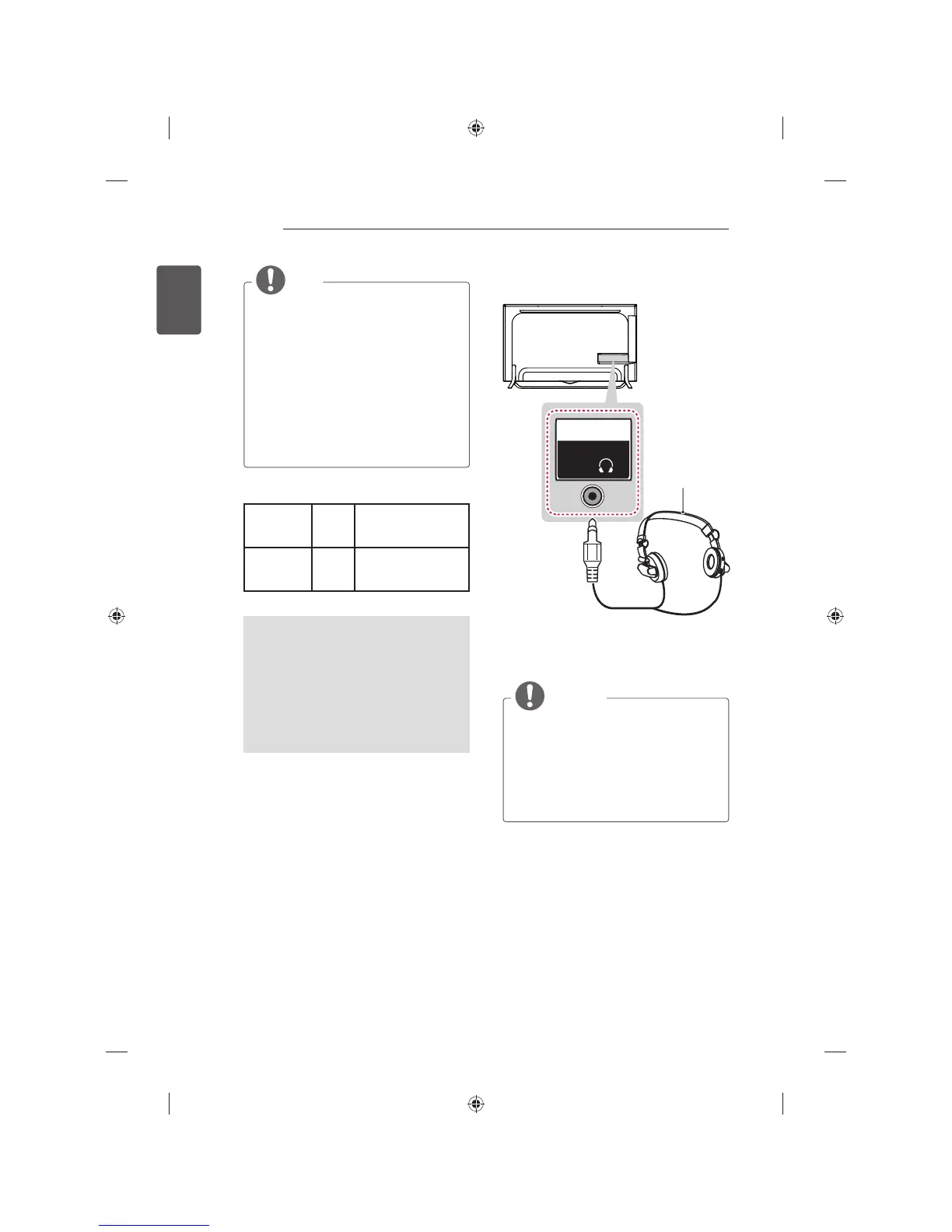

Headphone connection
OUT
EXT.SPEAKER
H/P
/
(*Not Provided)
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
NOTE
y
AUDIO menu items are disabled when
connecting a headphone.
y
Optical Digital Audio Out is not available
when connecting a headphone.
y
Headphone impedance: 16
y
Max audio output of headphone: 0.627
mW to 1.334 mW
y
Headphone jack size: 0.35 cm
NOTE
y
It is recommended to use the TV with
the HDMI connection for the best image
quality.
y
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
y
High Speed HDMI™ Cables are tested
to carry an HD signal up to 1080p and
higher.
y
Supported HDMI Audio format : Dolby
Digital (32 KHz, 44.1 KHz, 48 KHz),
DTS(44.1 KHz, 48 KHz), PCM (32 KHz,
44.1 KHz, 48 KHz, 96 KHz, 192 KHz)
4K @ 50/60 Hz Support Format
Resolution
Frame
rate
(Hz)
Colour Depth /
Chroma Sampling
3840 x 2160p
4096 x 2160p
50.00
59.94
60.00
8 bit / YCbCr 4:2:0
ARC (Audio Return Channel)
y
An external audio device that supports
SIMPLINK and ARC must be connected
using
HDMI(4K@60Hz)/DVI IN 2 (ARC)
port.
y
When connected with a high-speed
HDMI cable, the external audio device
that supports ARC outputs optical SPDIF
without additional optical audio cable and
supports the SIMPLINK function.
