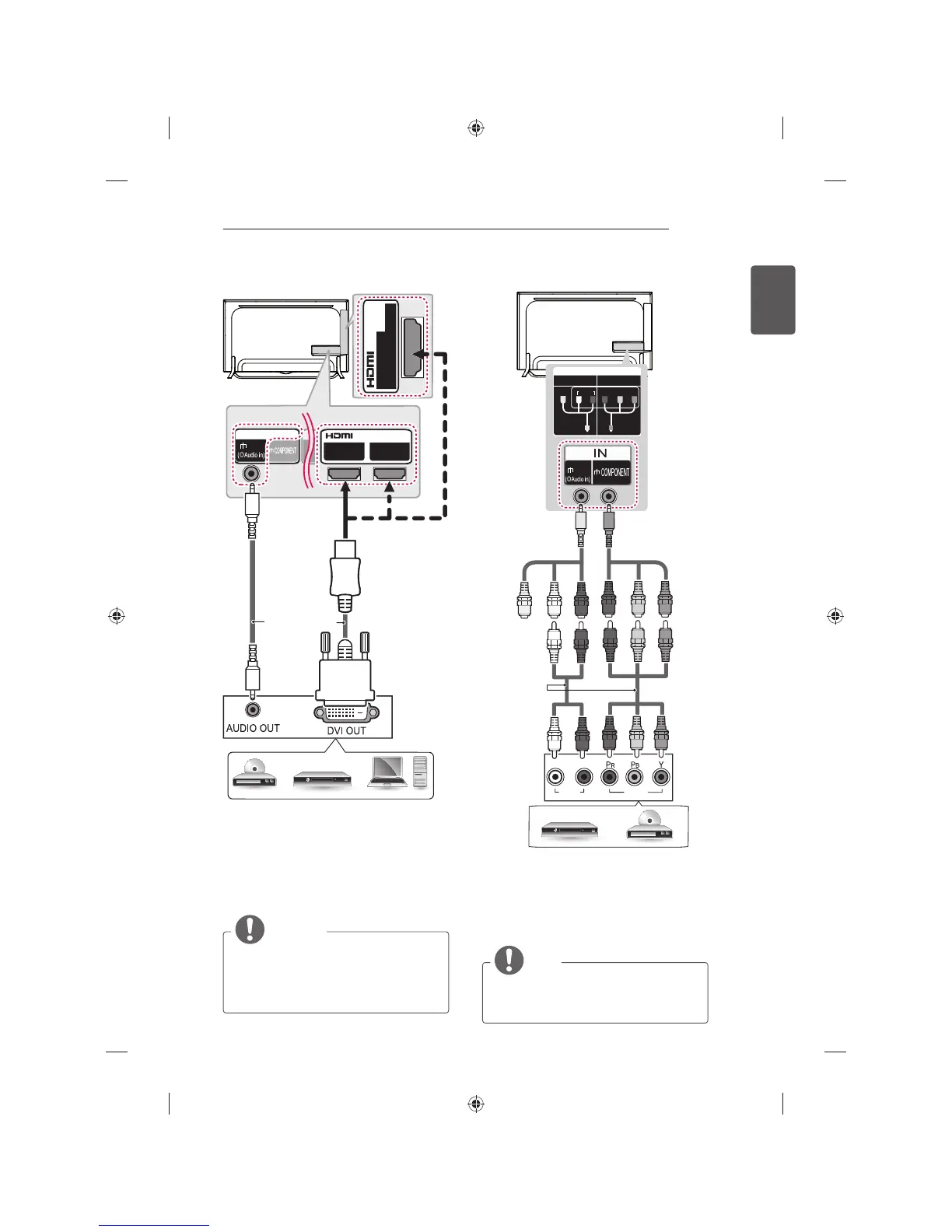

MAKING CONNECTIONS
Component connection
VIDEO
AUDIO
L R
IN
COMPONENT
YP B AUDIO
AV2
P R VIDEO
AV2
DVD / Blu-Ray / HD Cable Box
GREEN
(Use the
component gender
cable provided.)
YELLOW
(Use the composite
gender cable
provided.)
YELLOW
WHITE
RED RED
BLUE
GREEN
WHITE
RED RED
BLUE
GREEN
WHITE
RED RED
BLUE
GREEN
(*Not
Provided)
Transmits analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable(or component gender cable) as shown.
NOTE
y
If cables are not installed correctly, it
could cause this image to display in black
and white or with distorted colours.
DVI to HDMI connection
IN
AV2
/
/
/DVI IN
(4K@60Hz)
2 (ARC)
1 (HDCP2.2)
(4K@60Hz)/
DVI IN
3 (MHL)
DVD / Blu-Ray / HD Cable Box / HD STB / PC
(*Not Provided)
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
y
Depending on the graphics card, DOS
mode may not work if a HDMI to DVI
Cable is in use.
y
When using the HDMI/DVI cable, only
Single link is supported.
