LG UB80 series User Manual

28
ENGLISH

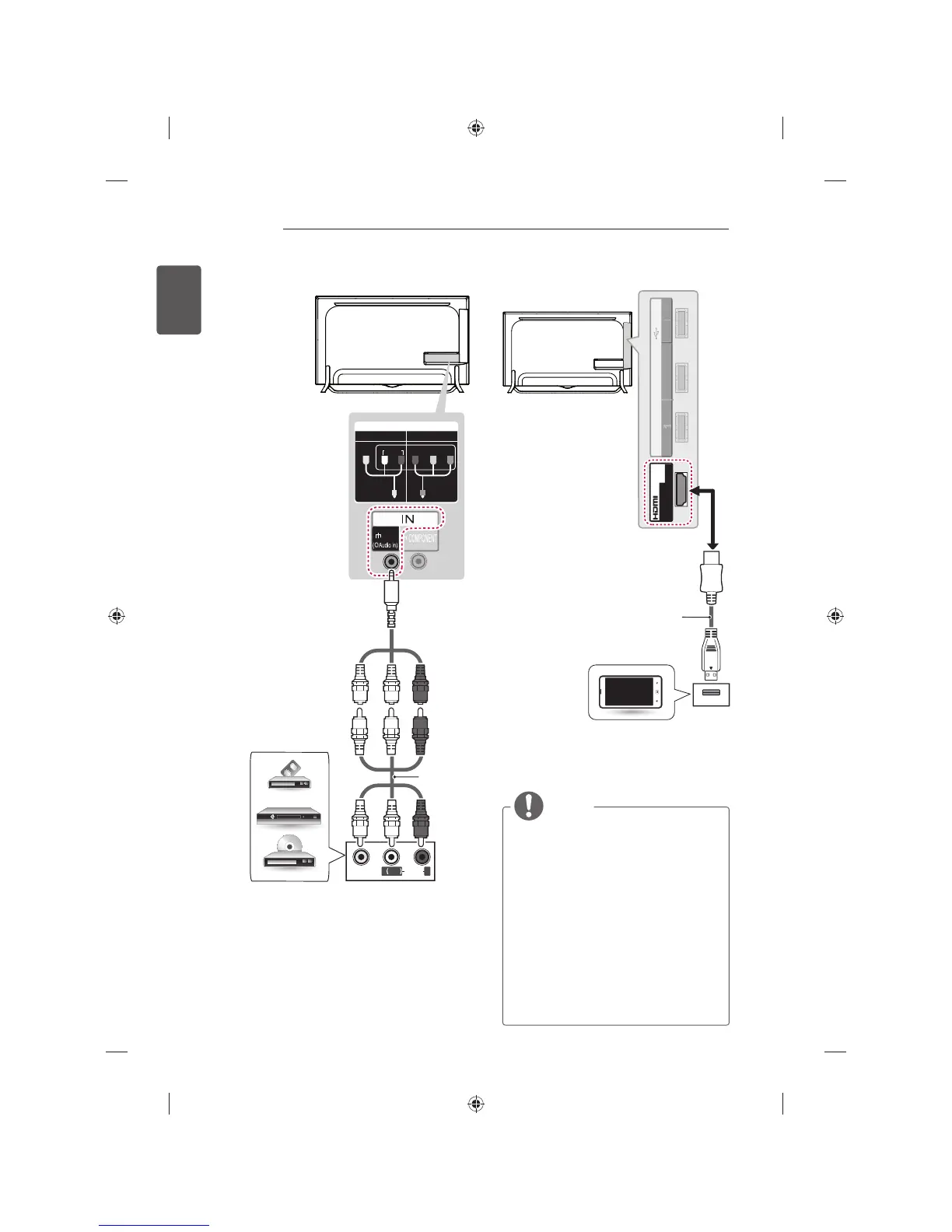

MAKING CONNECTIONS
Composite connection
VIDEO
MONO
( )
AUDIOL R
IN
COMPONENT
YP B AUDIO
AV2
P R VIDEO
AV2
DVD / Blu-Ray /
HD Cable Box / VCR
YELLOW
(Use the composite
gender cable provided.)
RED
WHITE
YELLOW
RED
YELLOW
(*Not
Provided)
RED
WHITE
YELLOW
WHITE
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with the composite cable as
shown.
MHL connection
HDD I
N
2
1
3
US
B I
N
(4K@60Hz)/
DVI IN
3 (MHL)
MHL passive cable
(*Not Provided)
Mobile phone
Mobile High-definition Link (MHL) is an interface
for transmitting digital audiovisual signals from
mobile phones to television sets.
NOTE
y
Connect the mobile phone to the
HDMI(4K@60Hz)/DVI IN 3 (MHL) port to
view the phone screen on the TV.
y
The MHL passive cable is needed to
connect the TV and a mobile phone.
y
This only works for the MHL-enabled
phone.
y
Some applications can be operated by
the remote control.
y
For some mobile phones supporting MHL,
you can control with the
Magic Remote.
y
Remove the MHL passive cable from the
TV when:
-
the MHL function is disabled
-
your mobile device is fully charged in
standby mode
