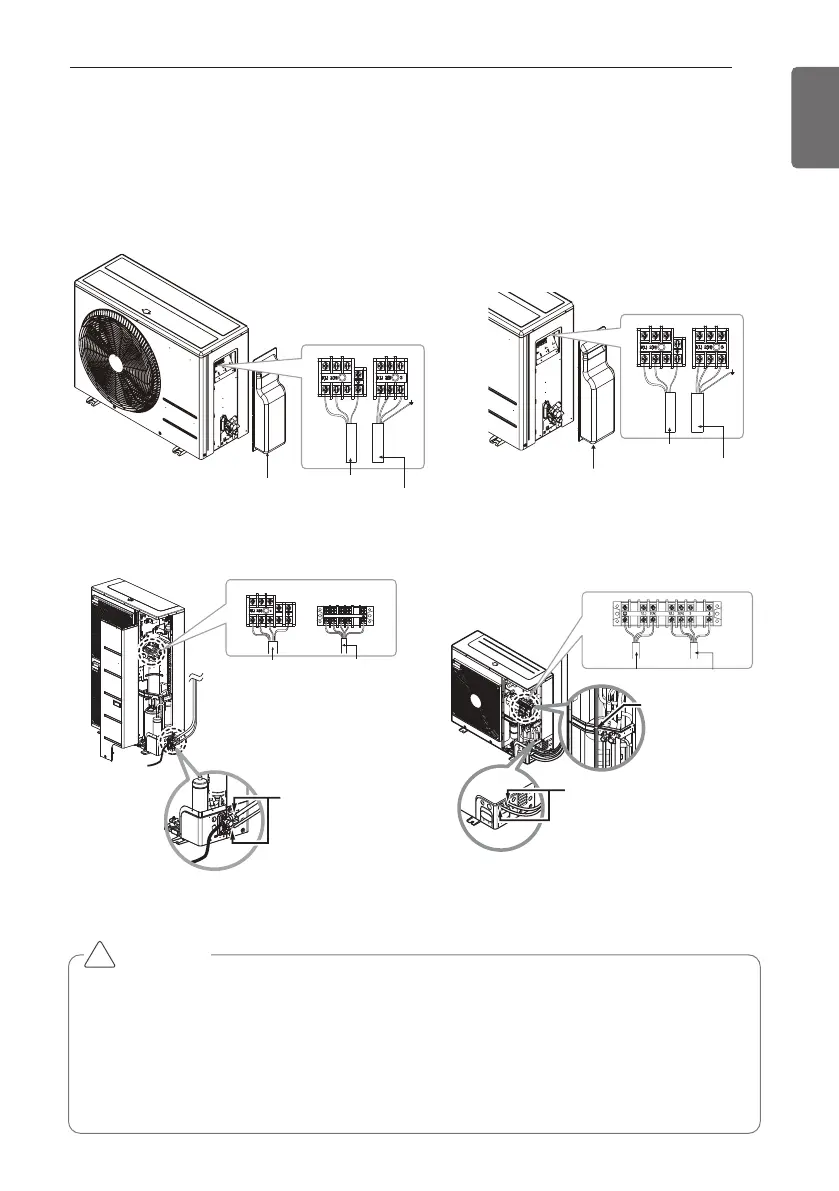

WIRING CONNECTION
13
ENGLISH
Power connecting cable
Cord clamp
Power cord
* Make sure the rubber
bushes are properly used
in knock-out holes after
connecting main power.
* Make sure the rubber
bushes are properly used
in knock-out holes after
connecting main power.
Power connecting cable
Power cord
• The circuit diagram is not subject to change without notice.
• Be sure to connect wires according to the wiring diagram.
• Connect the wires firmly, so that not to be pulled out easily.
• Connect the wires according to color codes by referring the wiring diagram.
• The Power cable connected to the unit should be selected according to the following
specifications.
CAUTION
!
Connecting the cable to Outdoor Unit
Remove the side panel for wiring connection.
Use the cord clamp to fix the cable.
Earthing work
- Connect the cable of diameter more to the earthing terminal provided in the control box and do
earthing.
Tubing Cover
Power cord
Power
connecting cable
Power cord
Power
connecting cable
Tubing cover
3
R S T N
