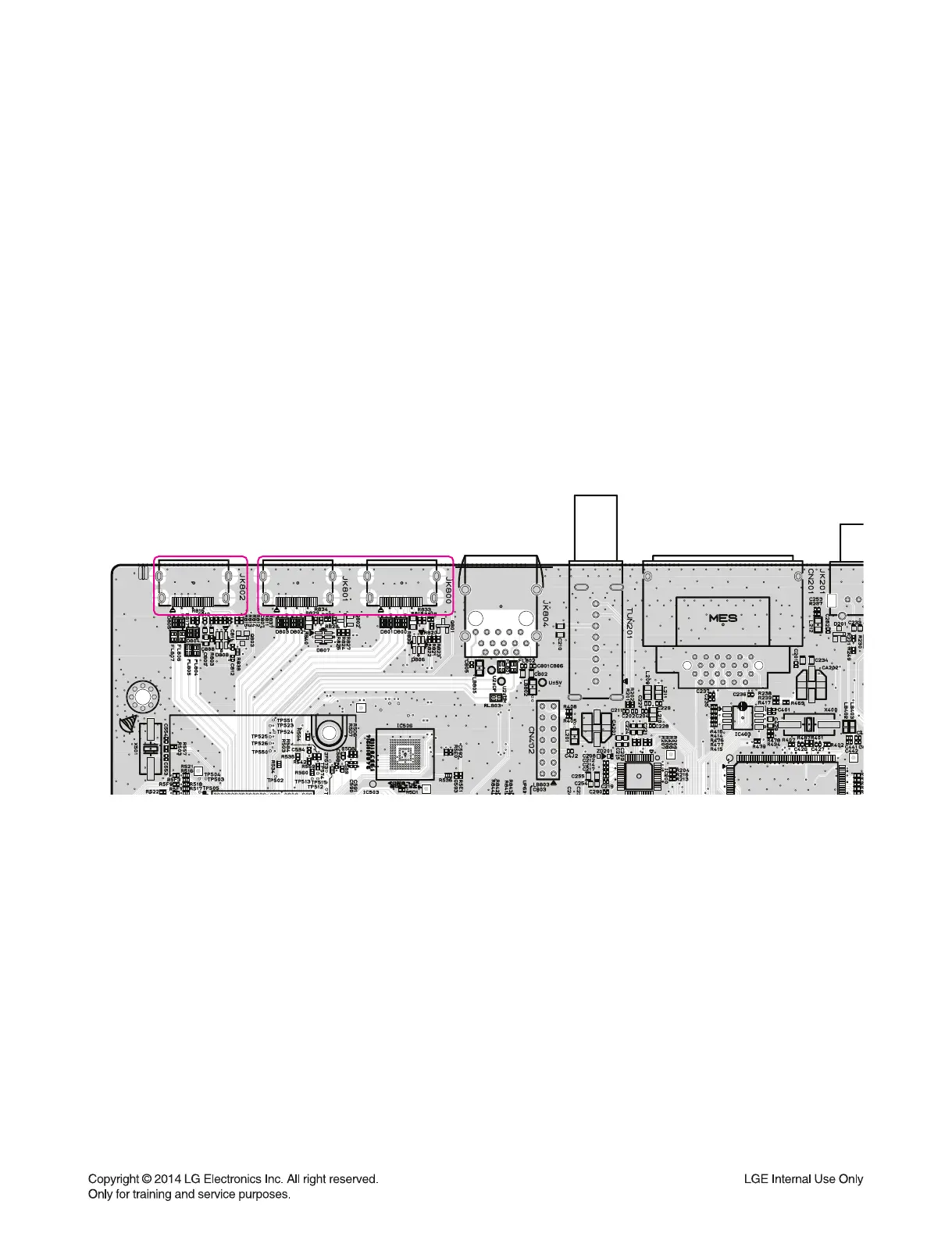

< MAIN board top view >
ONE POINT REPAIR GUIDE
5. BAD HDMI VIDEO / AUDIO OUTPUT
When unit is connected to HDMI TV using HDMI cable, picture shows bad color, no output or mixed
color on the screen. But component output is OK.
5-1. JK802 (HDMI JACK)
5-1-1. Solution
Replace JK802 (HDMI Jack).
5-1-2. How to troubleshoot (Countermeasure)
1) Check JK802 pin soldering.
2) If there is short soldering on pin JK802, re-soldering pin JK802.
3) If problem still occurs, check HDMI data.
- If all data OK, replace JK802.
- If data NG, check set on BD mode:
Replace IC501.
5-1-3. Service hint (Any picture / Remark)
HDMI OUT HDMI IN
To Next Page
