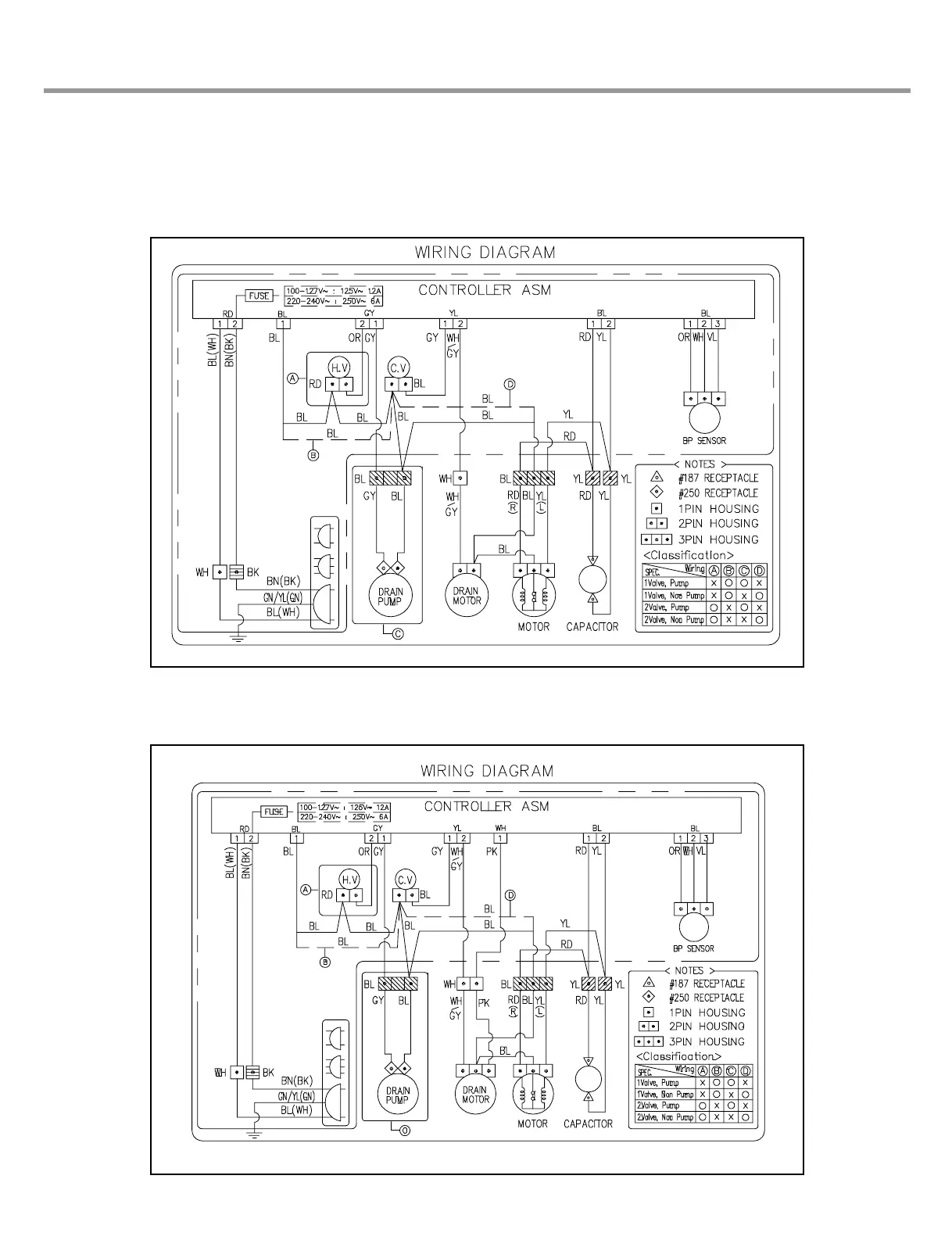

4-2. WIRING DIAGRAM
A) WF-S(F,C)51(~4,7)0(~2)0(~7) Series, WF-S(F,C)670(~2)1(~5)P(T)C(H,P,D,E,F)
WF-S(F,C)61(2,7)0(~2)0(~7) Series, WF-T7014PP, WF-80TL, WF-F655TC/F656TC/S5500PC
WF-F611PC/F612PC, WF-S5800PPK, WF-S5700PPM, WF-S6702PP, WF-F6012
B) WF-T51(~4,7)0(~2)0(~7) Series, WF-T68PC
WF-T61(2,7)0(~2)0(~7) Series, WF-T6605TD
