4-5. DISASSEMBLY INSTRUCTION
Be sure to unplug the power to repair and replace
electric parts.

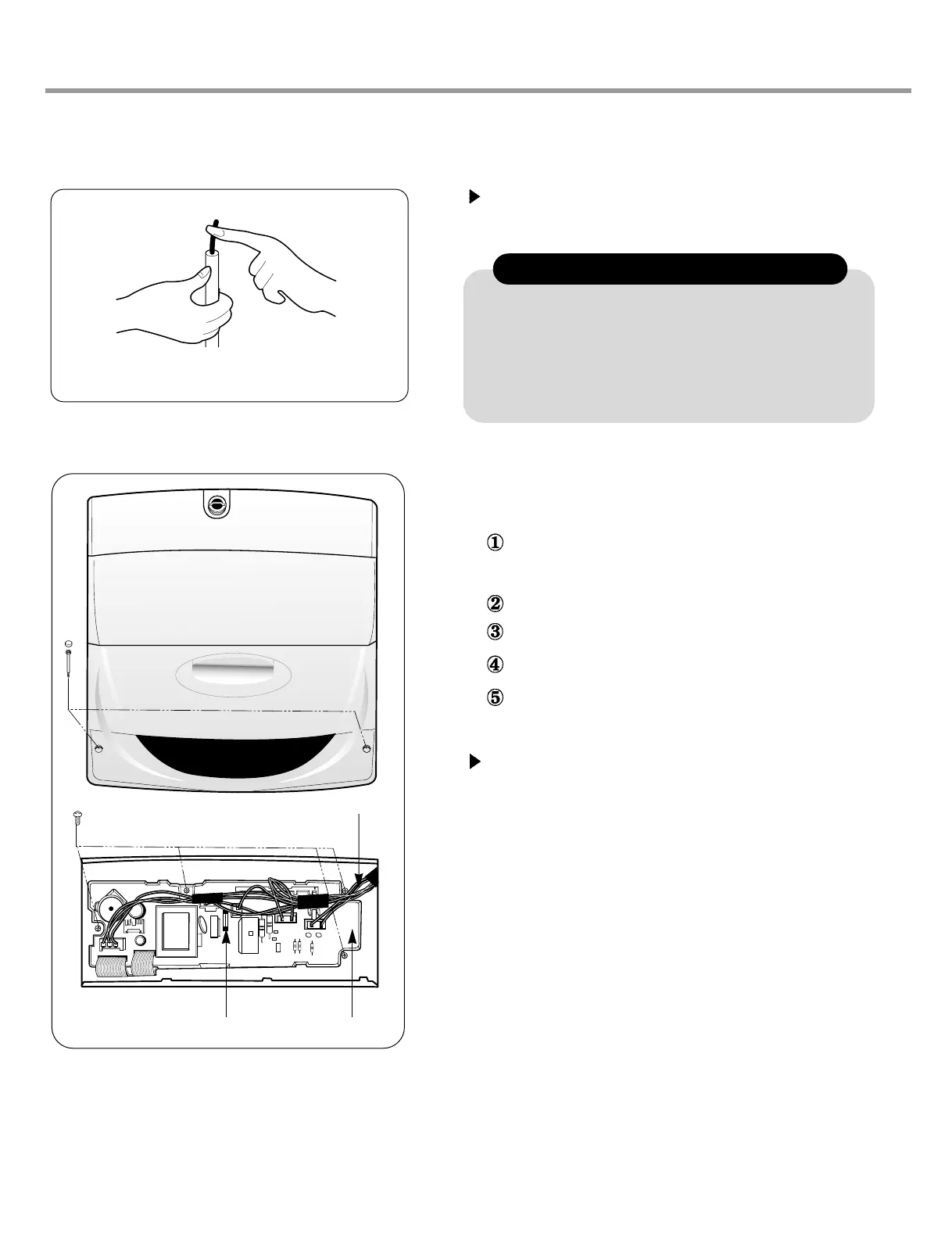

1) Disassembly of Front Panel & PCB
Assembly
Remove two screw caps using a sharp tool and two
front panel fixing screws.
Push the front panel to the left side then pull it out
Disconnect the leads from the controller
Remove 4 screw from the front panel
Remove the PCB Assembly.
Fuse is located in the PCB assembly
For fuse replacement use the following rated fuse
* Rating of fuse
- 250V 6A fusing type for 220-240V product
- 125V 12A fusing type for 100-127V product
Be sure to make earth connection for trouble
diagnosis and parts replacement. If impossible,
touch earth wire on the body to remove electric
deviation between the body and product before
work.
CAUTION FOR ELECTROSTATICS
leads
PCB AssemblyFuse
