42

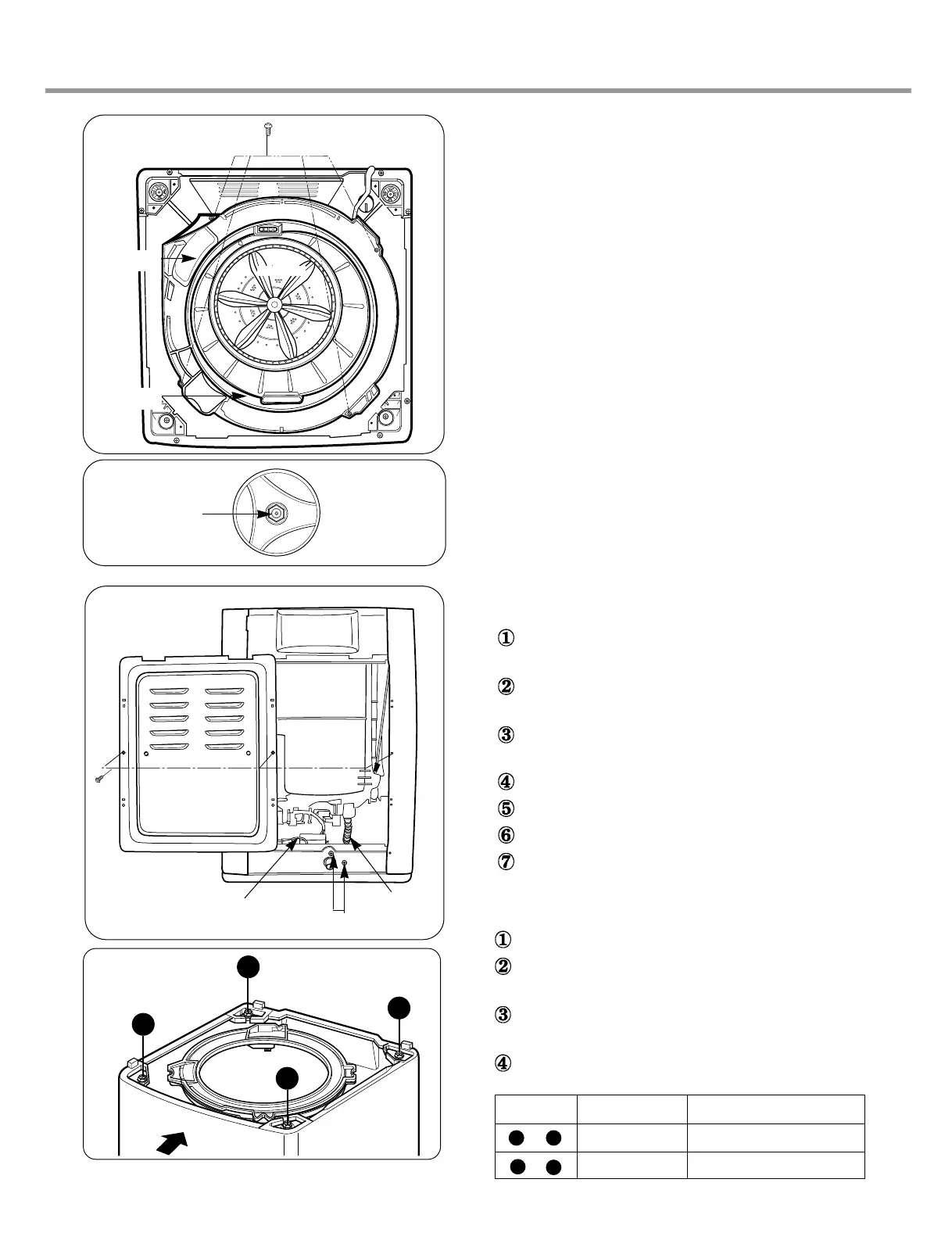

4) Disassembly of Back Cover, Drain
Pump, Clutch(Transmission) & Motor
Remove back cover fixing screws then disassemble
the back cover.
Disconnect the leads and the drain hose-p from the
drain pump.
Remove the pump fixing screws then disassemble
the drain pump.
Fall down the washer for clutch & motor removal.
Remove the belt.
Disassemble the clutch.
Remove two motor fixing screws then disassemble
the motor.
5) Replacement of Damper asm
Separate top cover from washing machine.
As in the fig, lift snubber bar and take it out of out
case with out tub.
Damper assembly shall not be disassembled.
Replace damper as assembly.
For assembly, keep the following.(Location & color)
Location P/No. PIVOT(Color)
, A051 NATURAL
, A052 BLUE
A D
C
B
