8-6. HEATER ASSEMBLY
1. The wash heater is designed to raise the wash water to the desired temperature
selection during certain wash cycles.
Result
Test points
Function
Wering
diagram

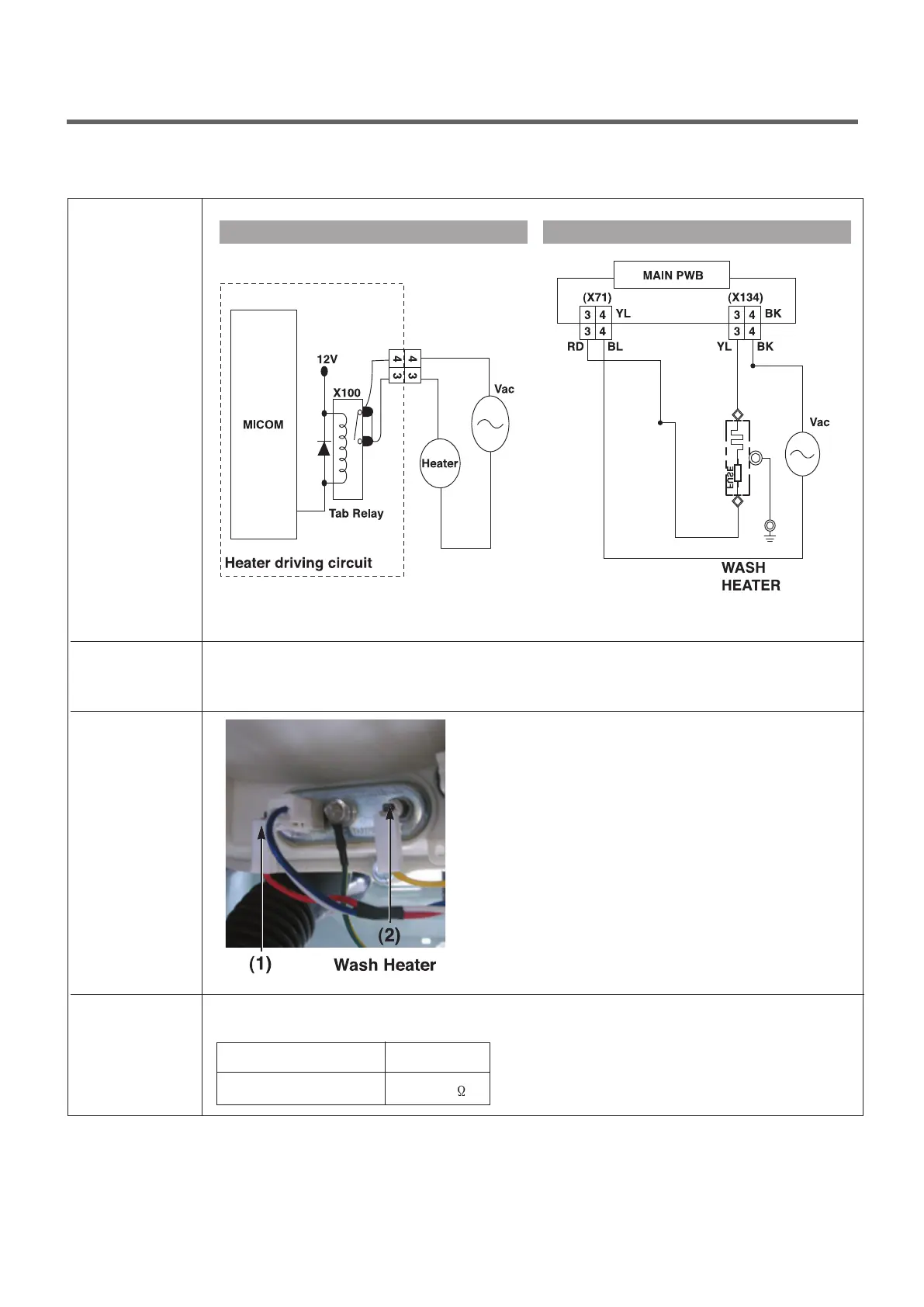

* Each circuits of loads in wiring diagram are all same.
Wash Heater
Wiring diagramCircuit in the MAIN PWB
Test Points
(1) to (2) 12-18
Result
42
