LG WT-R10(~3)3(7)1(3,5)TP(H) User Manual

40
Hub fixing nut
DT Housing
ASM
Inlet valve
ASM
Power
Cord
Hinge Pin
Tub Cover
Inner Tub Cap
Hub Fixing Nut
Inner Tub Cap
Out Tub
Inner Tub
Rotor
Stator
Rotor Nut
Shaft
Bearing Housing ASM

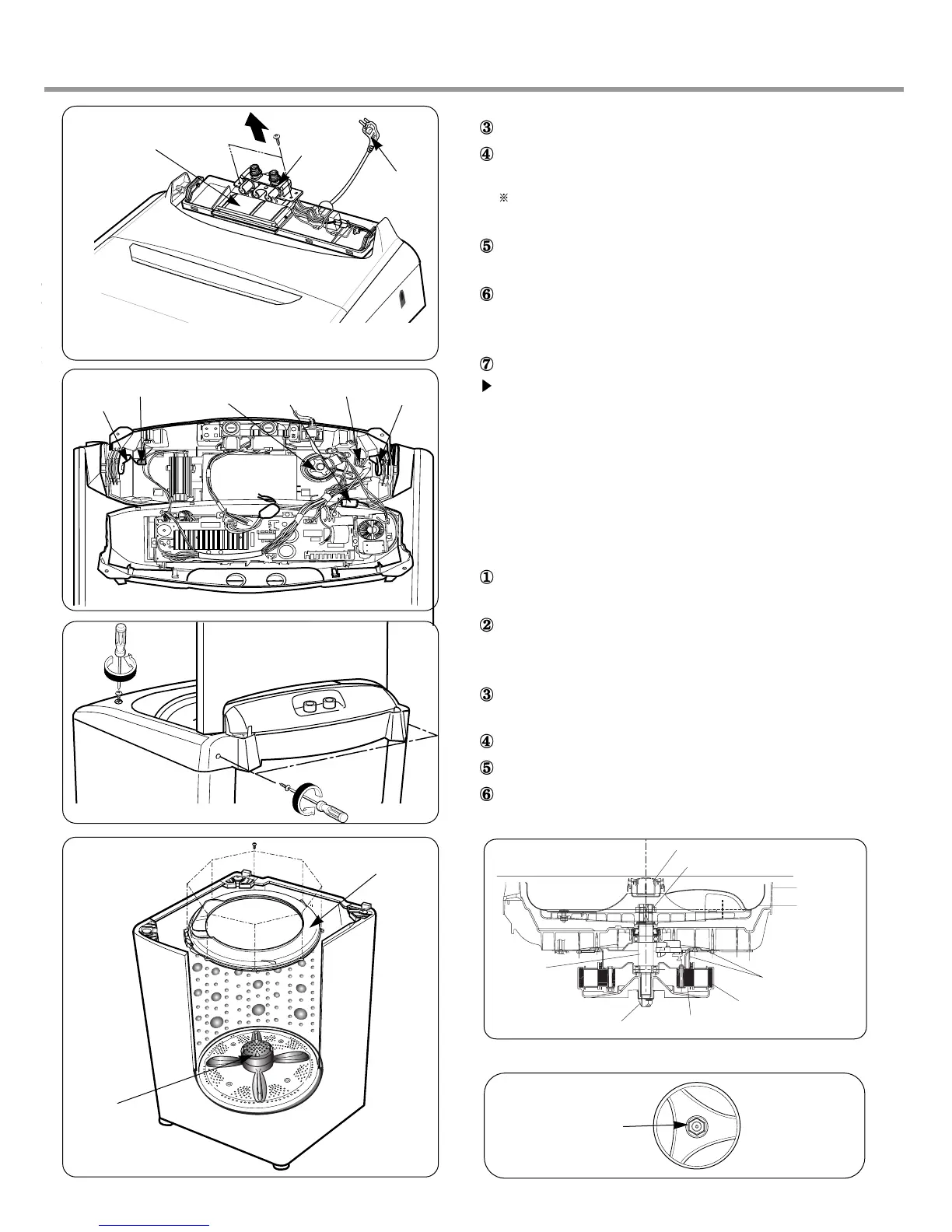

Disassemble the power cord.
Remove two inlet valve screws and pull up inlet valve from D.T
housing assembly.
Be careful that the silicon rubber of D.T housing assembly for
sealing is not missing.
Inlet valve assembly is disassembled by pulling out the lead wire
attached on inlet valve assembly.
To disassemble D.T housing assembly, loosen the three screws
tightened with the top cover and then pull the assembly back
slopped down.
Remove the Pressure Switch.
Fuse is located in the fuse holder.
For fuse replacement use the following rated fuse
* Rating of fuse
- 250V 8A fusing type for 220-240V product (time delay type)
- 125V 12A fusing type for 100-127V product (time delay type)
3) Disassembly of Lid Assembly, Top Cover,
Tub Cover & Inner Tub
Remove Q-spring & two hinge pins then disassemble the lid
assembly
Remove two screw caps using a sharp tool and loosen the two
front special screws and the two fixing screws in the back side
and disassemble top cover from washing machine.
Remove tub cover fixing screws then disassemble
the tub cover.
Remove the Inner tub cap asmebly with “_” type driver.
Remove the hub fixing nut by a special tool.
Disassemble the inner tub.
Hinge Pin
Q-Spring
Q-Spring
Pressure
Switch
Fuse
holder

LG WT-R10(~3)3(7)1(3,5)TP(H) Specifications

General

Power Sourse	Refer to rating label on the back of Washer
Input	Refer to rating label on the back of Washer
Rating of Fuse	250V, 8A for 220~240V/50Hz 125V, 12A for100~127V/60Hz
Auto Power Off	Applied
Capacity	Refer to rating label on the back of Washer
Spin Speed	710 50
Lint Filter	Double
Softener Dispenser	Applied
Detergent Dispenser	Applied
Bleach Inlet	Applied
Inner Tub	Stainless
Inlet Water Pressure	0.3kgf/cm2~ 8kgf/cm2
Water Level	7 Stages
Reservation	Available for 3 ~ 24 Hr
Program	DELICATE, WOOL, NORMAL, SPEEDY, JEAN
Lid Interlock Switch	Magnet Sensor
Child Lock	Applied

Weight and Dimensions

Dim.	Refer to rating label on the back of Washer
Weight	Refer to rating label on the back of Washer
