41

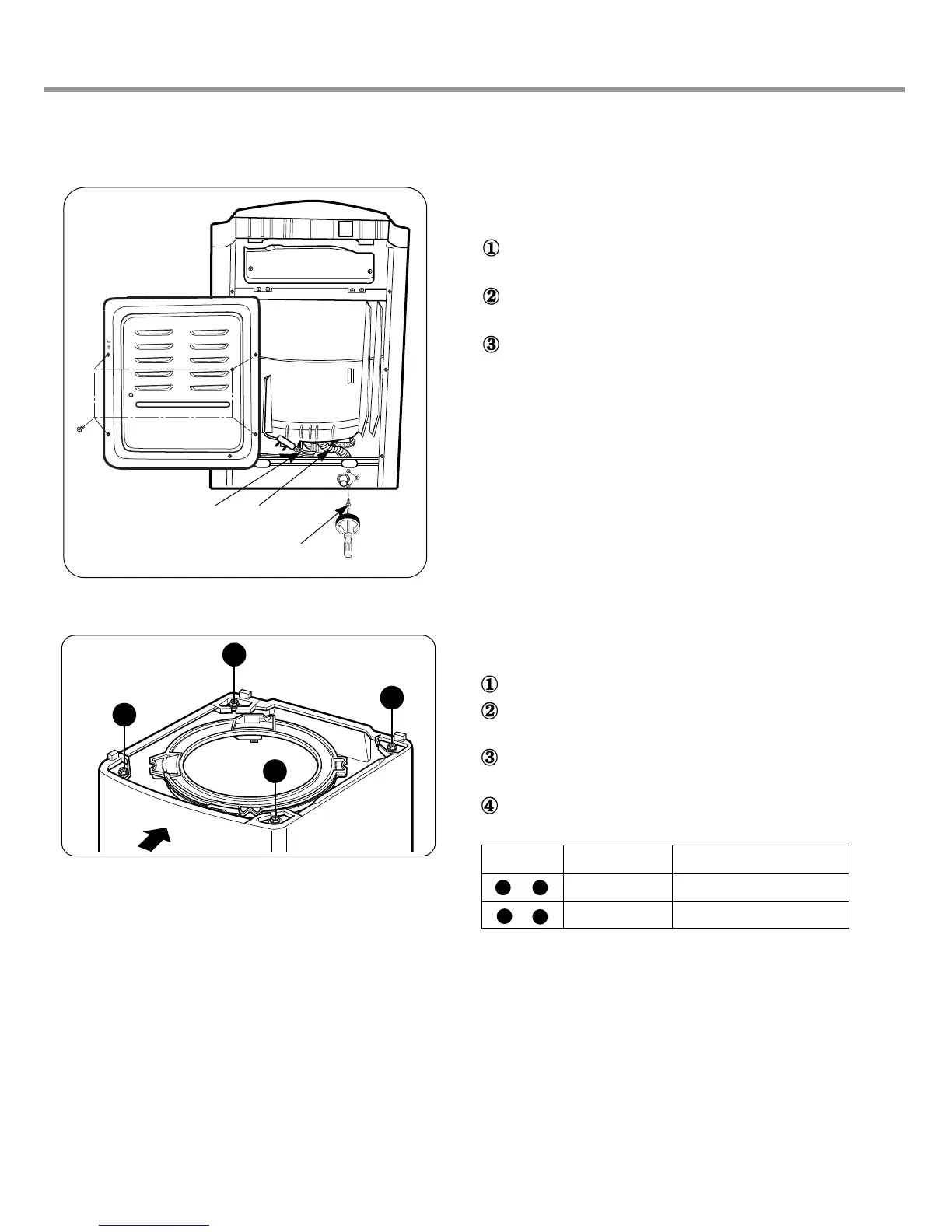

4) Disassembly of Back Cover, Drain
Pump.
Remove back cover fixing screws then
disassemble the back cover.
Disconnect the leads and the drain hose-p from the
drain pump.
Remove the pump fixing screws then disassemble
the drain pump.
5) Replacement of Damper asm
Separate top cover from washing machine.
As in the fig, lift snubber bar and take it out of out
case with out tub.
Damper assembly shall not be disassembled.
Replace damper as assembly.
For assembly, keep the following.(Location & color)
Location P/No. PIVOT(Color)
, A102 MIDDLE BLUE
, A101 WHITE
A B
C
D
C
D
A
B
FRONT
Leads
drain hose-p
pump fixing screw

LG WT-R10(~3)3(7)1(3,5)TP(H) Specifications

General

Power Sourse	Refer to rating label on the back of Washer
Input	Refer to rating label on the back of Washer
Rating of Fuse	250V, 8A for 220~240V/50Hz 125V, 12A for100~127V/60Hz
Auto Power Off	Applied
Capacity	Refer to rating label on the back of Washer
Spin Speed	710 50
Lint Filter	Double
Softener Dispenser	Applied
Detergent Dispenser	Applied
Bleach Inlet	Applied
Inner Tub	Stainless
Inlet Water Pressure	0.3kgf/cm2~ 8kgf/cm2
Water Level	7 Stages
Reservation	Available for 3 ~ 24 Hr
Program	DELICATE, WOOL, NORMAL, SPEEDY, JEAN
Lid Interlock Switch	Magnet Sensor
Child Lock	Applied

Weight and Dimensions

Dim.	Refer to rating label on the back of Washer
Weight	Refer to rating label on the back of Washer
