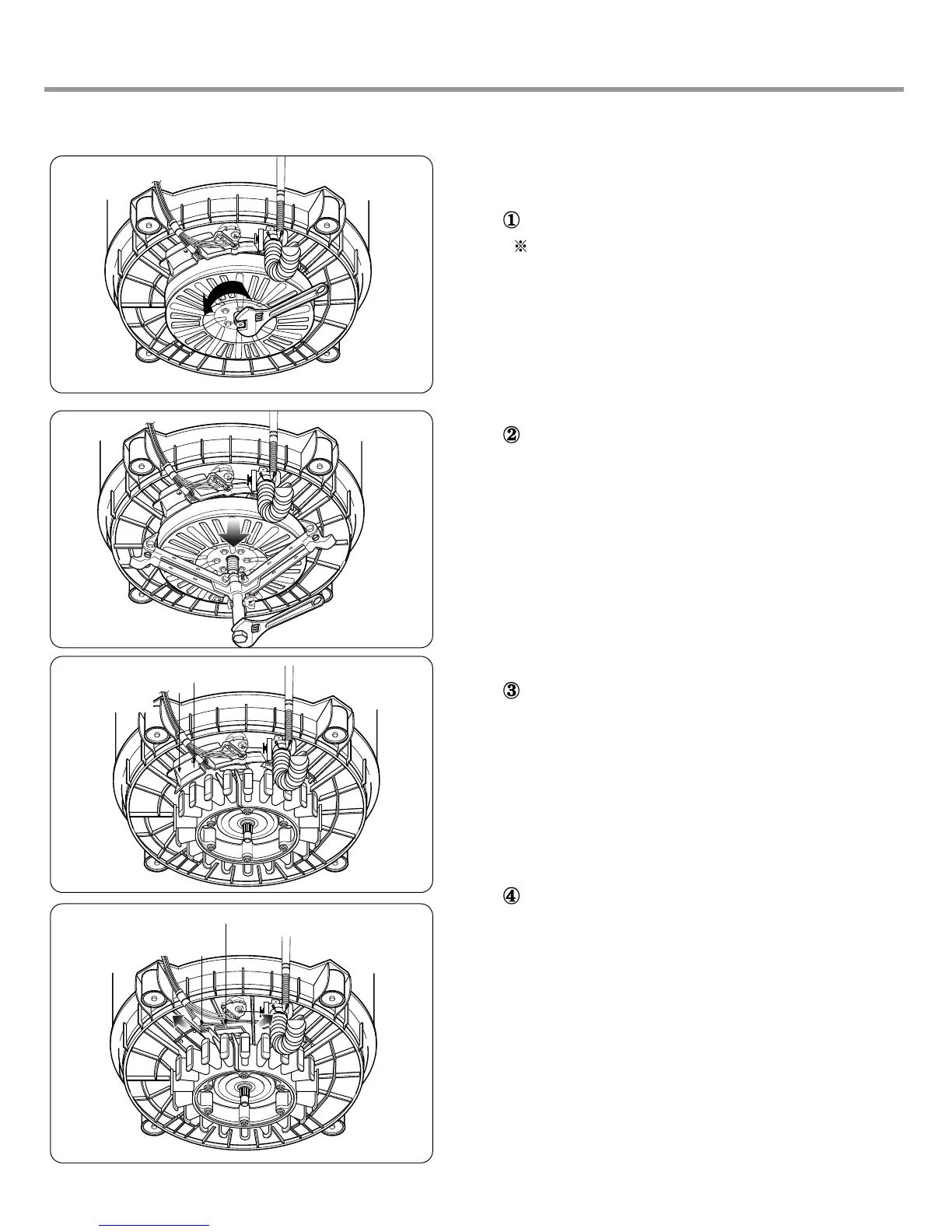

6) Replacement of Rotor & Stator
Disassemble rotor nut with boxer(M18) or spaner.
(
In assembled, the force is over than 200kgf.cm)
Disassemble rotor, pull out the rotor as shown the
figure.
Disconnect the drain motor wire, loose fixing screw
and disassemble the water guide & drain motor.
Before disassemble stator, disconnect the hall
sensor and stator housing.
Hall Sensor
Water Guide
Fixing Bolt
Stator Housing
