12
EN

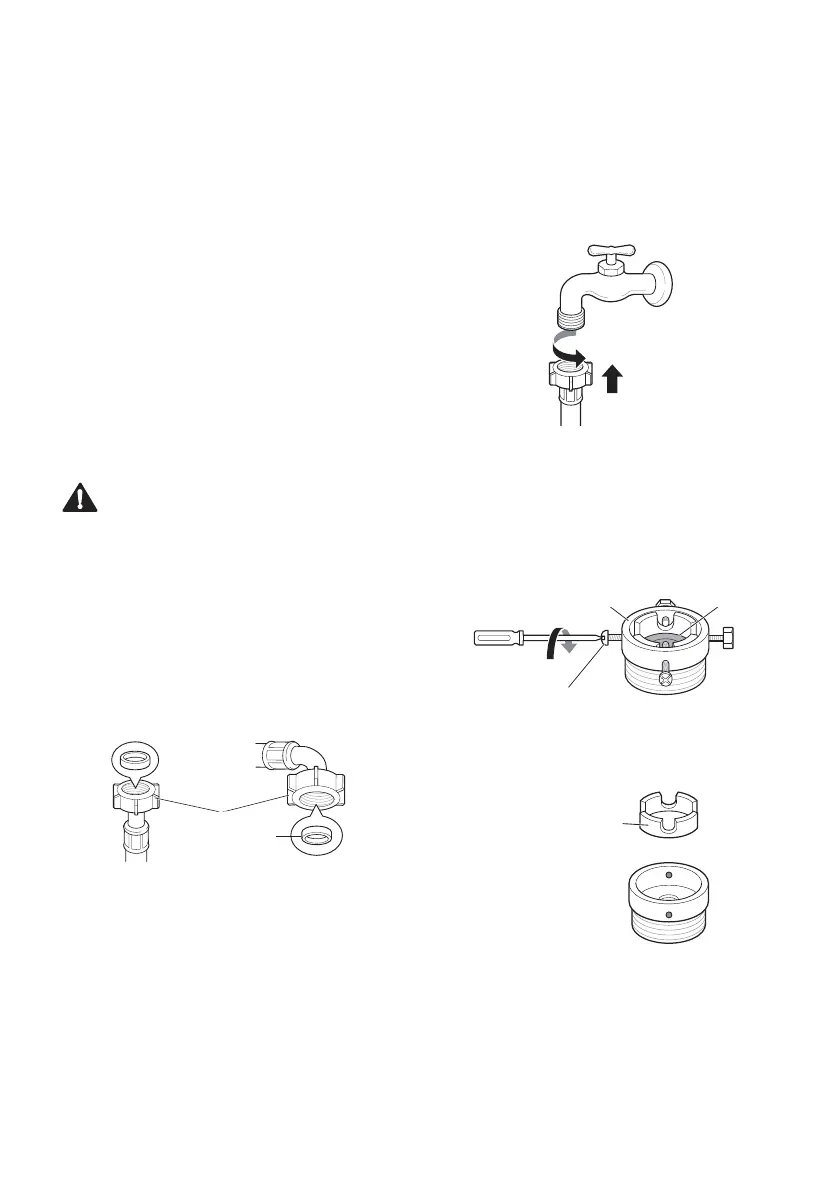

Connecting the Supply
Hose
Before connecting the water supply hose to the
water tap, check the hose type and then choose
the correct instruction.
Notes for Connection
• The water supply hose supplied may vary from
country to country.
• Water supply pressure must be between 30 kPa
and 800 kPa (0.3 - 8.0 kgf / cm²).
• Do not overtighten the water supply hose.
• If the water supply pressure is more than
800 kPa, a decompression device should be
installed.
• Periodically check the condition of the hose and
replace the hose if necessary.
WARNING
• Do not connect to hot water supply for one valve
model.
Checking the Rubber Seal on the
Supply Hose
Two rubber seals are supplied with the water
supply hoses. They are used for preventing
water leaks. Make sure the connection to taps is
sufficiently tight.
Rubber seal
Hose connector
Connecting Hose to Water Tap
Connecting Screw-Type Hose to Tap
with Thread
Screw the hose connector onto the water supply
tap.
Connecting Screw-Type Hose to Tap
Without Thread
1
Loose the four fixing screws.
Fixing screw
Upper
connector
Rubber
seal
2
Remove the guide plate if the tap is too large
to fit the adapter.
Guide plate
To Next Page
