LG WT4901C Series - Disassembly of Tub Cover and Pulsator; Assemble Service Tool; Remove Hub Attachment Nut

23

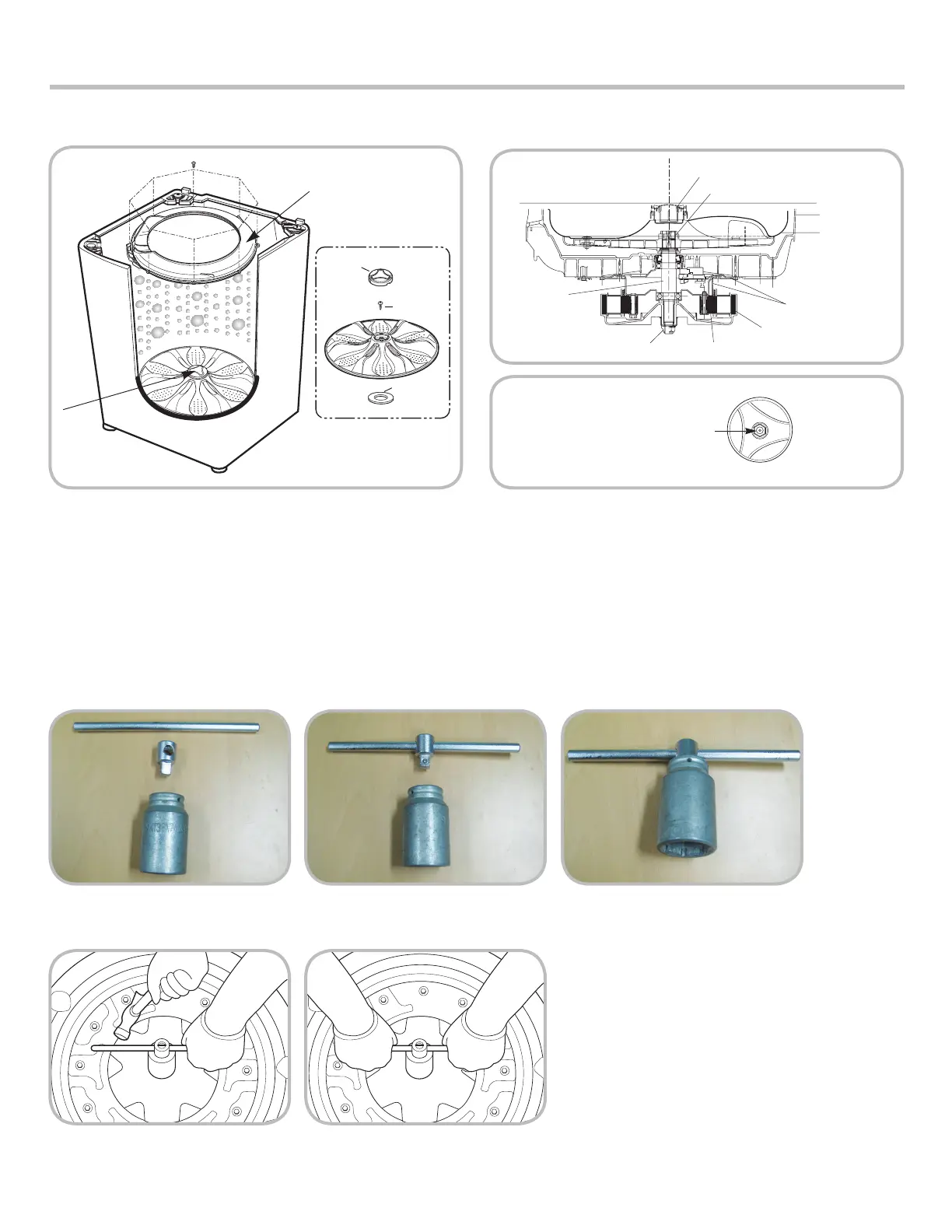

4) Disassembly of Tub Cover and Pulsator
① Remove 8 screws and take off the tub cover.
② Remove the pulsator cap.
③ Remove the pulsator screws.
④ Remove the pulsator washer.
Tub Cover
Pulsator Cap
Pulsator
Screw
Pulsator
Inner Tub Cap
Hub Fixing Nut
Outer Tub
Inner Tub
Stator
Rotor Nut
Hub Attachment Nut
Shaft
Bearing Housing ASM
Rotor
Inner
Tub Cap
① Hit the bar using the hammer. ② Disconnect hub nut and disassemble the inner tub.
5) Assemble the service tool (38 mm wrench)
6) Remove the hub attachment nut. (38 mm)
