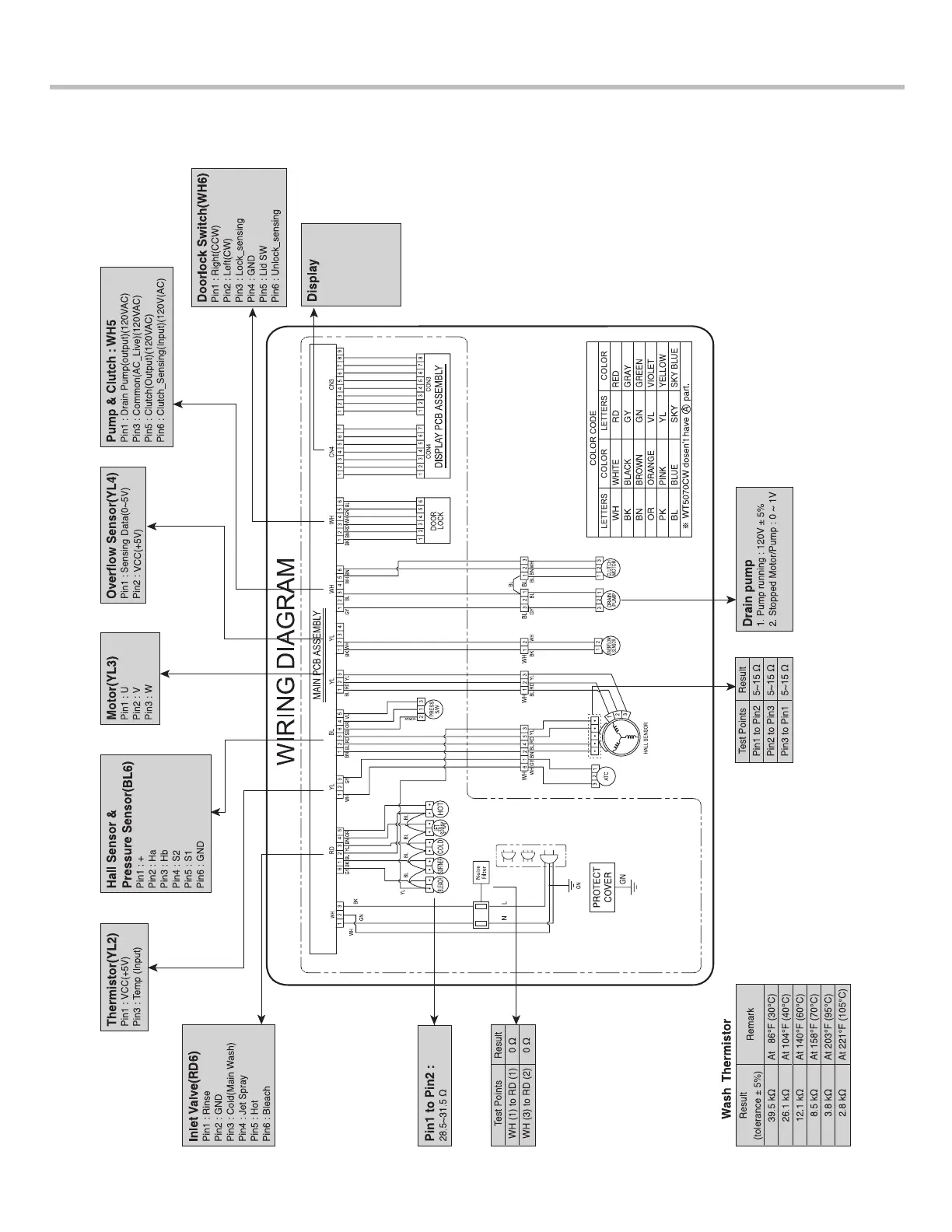

4-5. TROUBLESHOOTING SUMMARY
30
Pin1: Rx
Pin2: Tx
Pin3: Smps2_5v
Pin4: GND
Pin5: -
Pin6: Smps2_13v
Pin7: Boot
