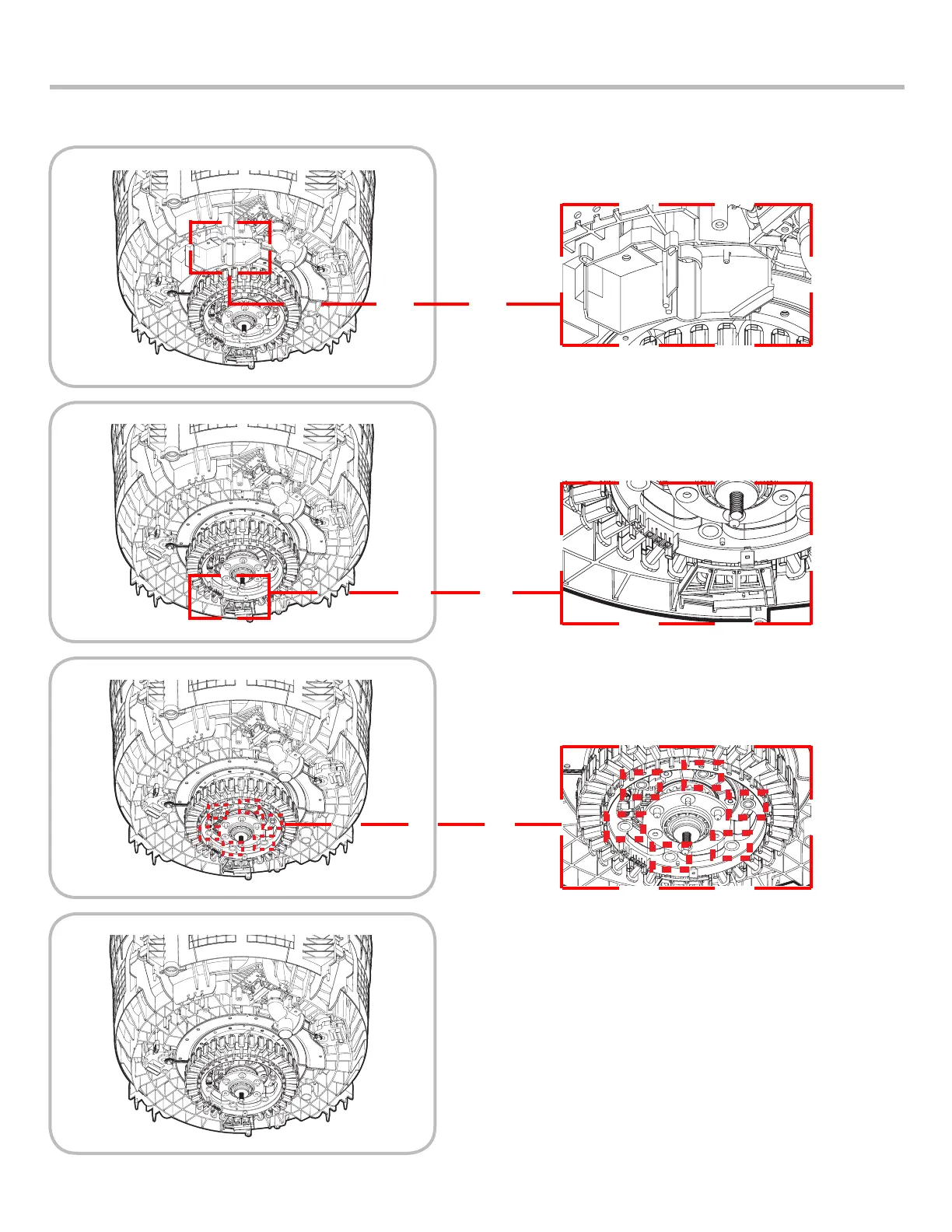

④ Disconnect the hall sensor and stator connection
before removing the stator in the subsequent step.
25
⑤
Remove the six screws securing the rotor.
⑥
Check the position of the snap ring, being sure it
faces the rotor and stator.
⑦
To keep from dropping the stator, loosen the six
bolts almost all the way; then hold the stator in one
hand while removing the bolts with the other.
⑧
Be careful during removal and replacement to avoid
cutting, nicking, or pinching any of the wires. This
could cause a short or electrical noise in the
machine.
③ Remove the screws that secure the water guide.
