OUTDOOR UNIT INFORMATION
13
ENGLISH
OUTDOOR UNIT INFORMATION
Powe Supply : 1Ø, 220-240 V~, 50/60 Hz / 3Ø, 380-415 V~, 50/60 Hz
Installation of outdoor unit
- If an awning is built over the unit to prevent
direct sunlight or rain exposure, make sure
that heat radiation from the condenser is not
restricted.
- Ensure that the spaces indicated by arrows
around front, back and side of the unit.
- Do not place animals and plants in the path
of the warm air.
- Take the air conditioner weight into account
and select a place where noise and vibration
are minimum.
- Select a place so that the warm air and noise
from the air conditioner do not disturb
neighbors.

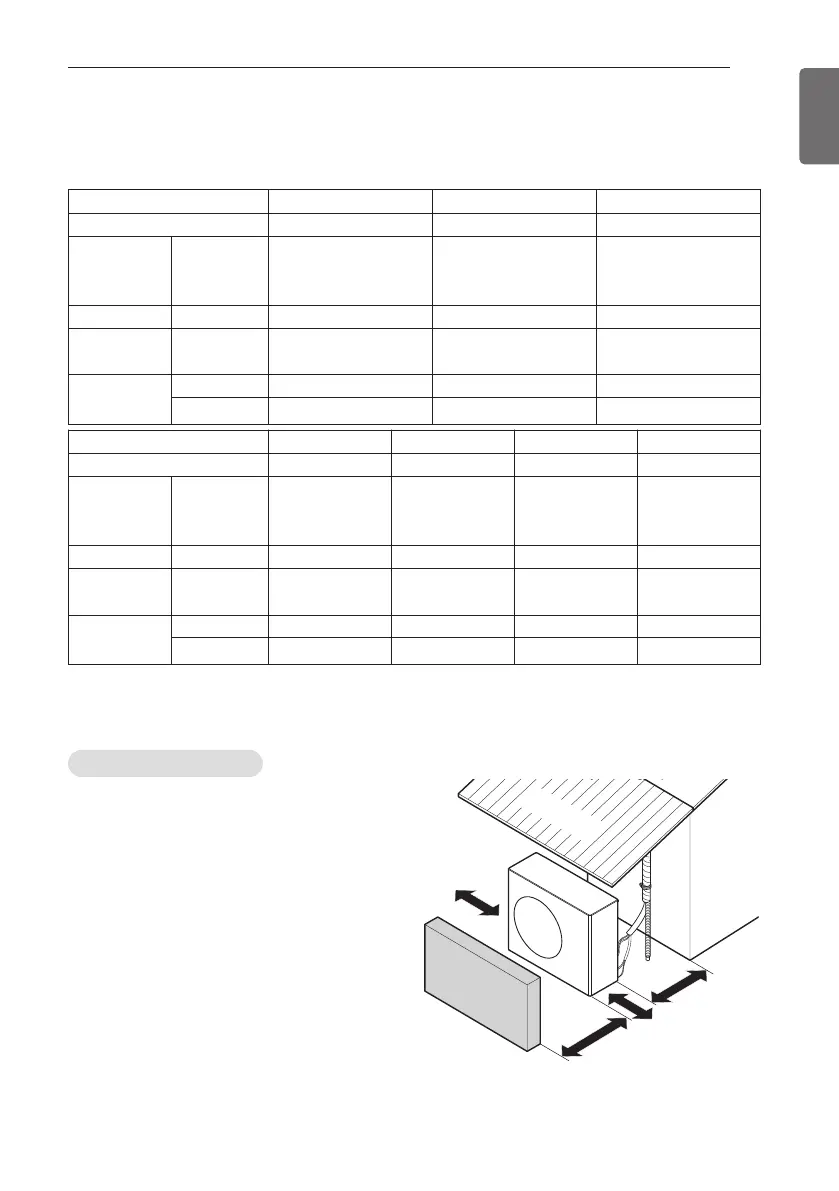

Installation Places
Model ZUUQ36GA0 ZUUQ36LA0 ZUUQ60GA0 ZUUQ60LA0
Phase 1P 3P 1P 3P
Refrigerant
Precharged
Amount
kg 1.8 1.8 2 2
Net Weight kg 59.5 60.8 66.9 65.1
Dimensions
(W x H x D)
mm 950 x 834 x 330 950 x 834 x 330 950 x 834 x 330 950 x 834 x 330
Piping
Connections
Liquid Pipes Ø9.52 (3/8) Ø9.52 (3/8) Ø9.52 (3/8) Ø9.52 (3/8)
Gas Pipes Ø15.88 (5/8) Ø15.88 (5/8) Ø15.88 (5/8) Ø15.88 (5/8)
Model ZUUQ12GA0 ZUUQ18GA0 ZUUQ24GA0
Phase 1P 1P 1P
Refrigerant
Precharged
Amount
kg 0.75 0.98 1.25
Net Weight kg 24.2 30.9 41.5
Dimensions
(W x H x D)
mm 717 x 483 x 230 770 x 545 x 288 870 x 650 x 330
Piping
Connections
Liquid Pipes Ø 6.35 (1/4) Ø 6.35 (1/4) Ø 9.52 (3/8)
Gas Pipes Ø 9.52 (3/8) Ø 12.7 (1/2) Ø 15.88 (5/8)
More than
300
Fence or
obstacles
More than
600
More than 700
Unit : mm
More than 300
More than 300
More than 300
Awning
OUTDOOR
OUTDOOR
UNIT
UNIT
OUTDOOR
UNIT
