2 - INSTALLATION
23
INC and DEC signals: signals coming from the machine to increase or
decrease the working voltage or shift from one working voltage to another
(admitted voltage values for the high logic level: 11V to 40V).
N.B.:
INC and DEC pulse times shall least exceed 10ms (see chapter 4.2.5
“RS-IncDec Resol”).

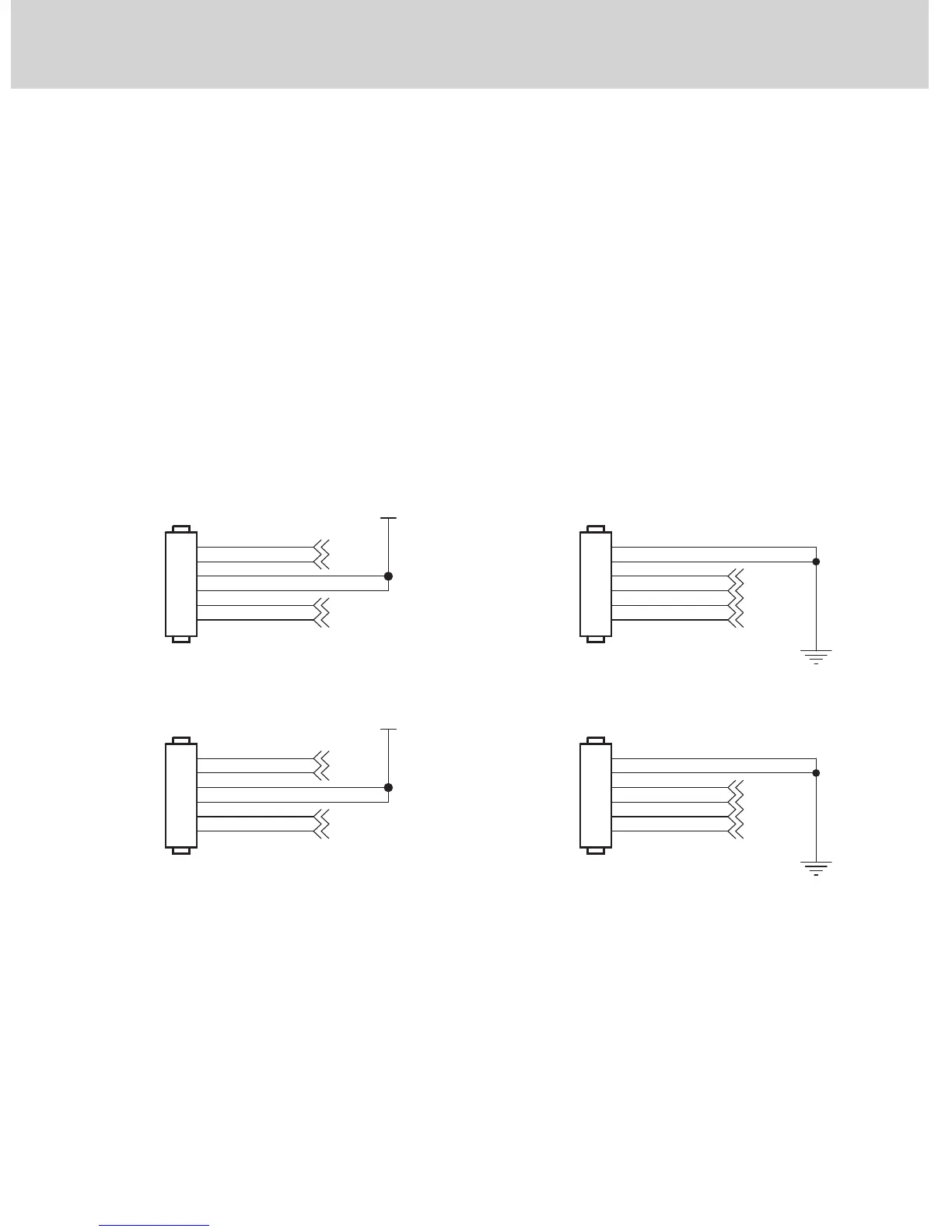

Possible connections for INC and DEC
(5)
1
2
3
4
5
6
DEC-
INC-
STOP B
STOP A
+V
DEC+
INC+
(6)
1
2
3
4
5
6
DEC-
INC-
STOP B
STOP A
+V
DEC+
INC+
(5)
1
2
3
4
5
6
DEC+
INC+
STOP B
STOP A
DEC-
INC-
(6)
1
2
3
4
5
6
DEC+
INC+
STOP B
STOP A
DEC-
INC-
POSITIVE COMMON WIRE NEGATIVE COMMON WIRE
GROUP 1 GROUP 1
GROUP 2 GROUP 2
