LGL Electronics SPIN1 - Page 27

27
SW2
CN3
CN1
CN2
CN4
CN5
J1
J2
J3
J4
1 2 2
8
7
654
1
2
3
1
2
VIN +
VIN
-
1
2
ESC -
+
3
4
+
ANALOG INPUT -
1
2
DEC -
INC -
3
4
5
6
DEC +
INC +
STOP B
STOP A
1
2
3
3
4
1
2
SW 1
R22
100R
+34VDC
CN4
RS485 or CAN BUS
COMMUNICATION CONNECTOR
DIP SWITCH TO INSERT THE
TERMINATION RESISITOR ON RS485
ANALOG INPUT
ESC

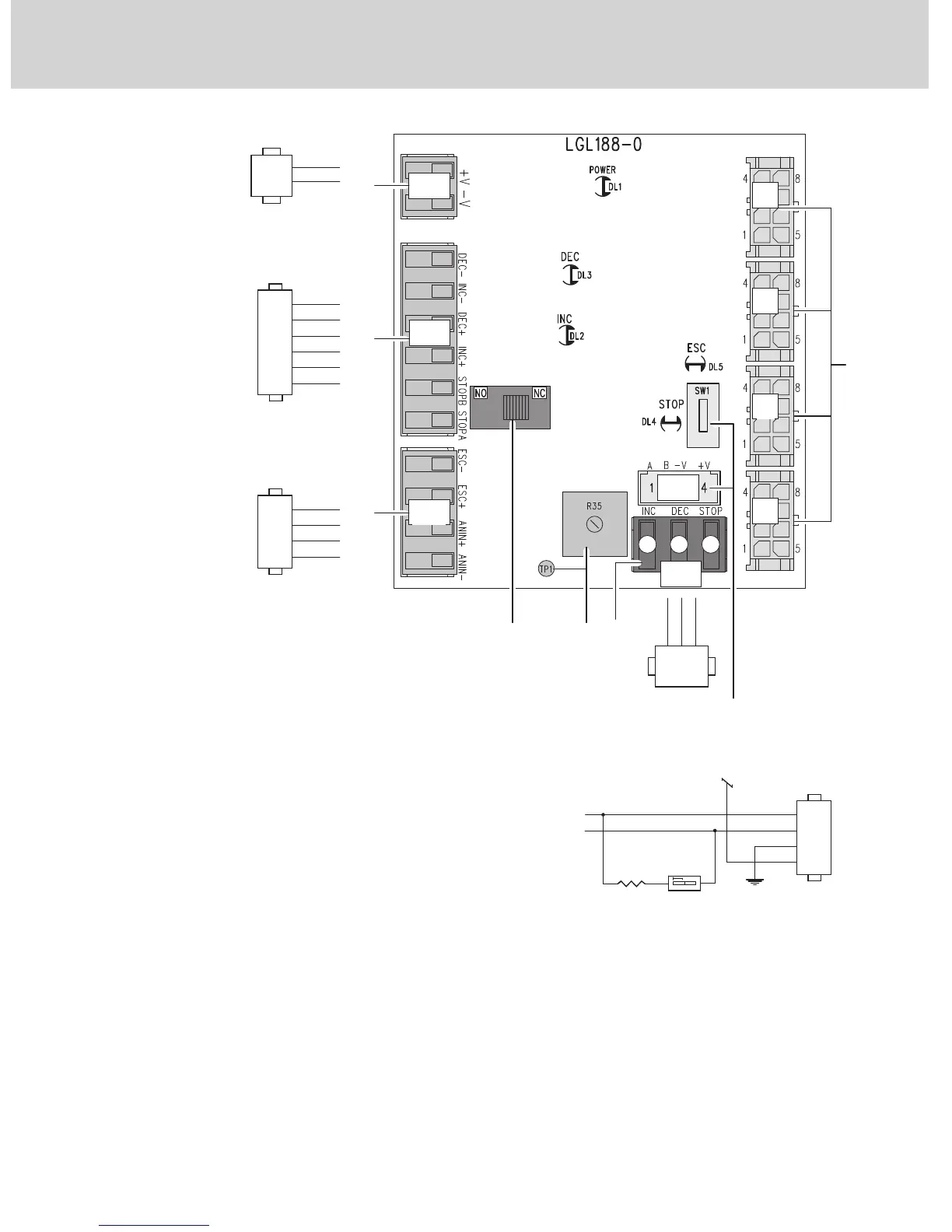

1. POWER CONNECTOR
ADMITTED POWER SUPPLY VOLTAGE RANGE:
- from 23Vdc to 40Vdc.
2. KNITTING MACHINE INC DEC STOP CONNECTOR
INC DEC ACTIVATION VOLTAGE:
- from 5Vdc to 40Vdc.
- from 12Vac to 28Vac.
3. EXCLUSION CONNECTOR
EXCLUSION ACTIVATION VOLTAGE:
Digital Input (on pin1 and 2)
- from 5Vdc to 40Vdc.
- from 12Vac to 28Vac.
Analogue input (on pin 3 and 4):
- from 0V to 10V.
4. NO NC STOP Switch
5. EXCLUSION SETTING
VARIABLE THRESHOLD:
- from 0V to 6,1V (With34V on VBus)
6. EXTRA INC DEC STOP SPIN SIDE: If you wish to add other SPINs to the same signals in
addition to the 4 already connected ones, you can add other modules and connect to each
other and connect the clamps CN5 of these modules to one another. In this manner, the INC
DEC signal that comes from the machine to CN3 of the first module can be made available
to the other modules so as to allow other SPINs to take advantage of the same signal.
7. RS485 or CAN BUS COMMUNICATION CONNECTOR
DIP SWITCH FOR INSERTION OF TERMINATION RESISTANCE ON RS485
8. SPIN CONNECTORS
2 - INSTALLATION
