LGMG SR2669D Service Manual

Service Manual of Rough Terrain Mobile Elevating Work Platform
79
Idle load

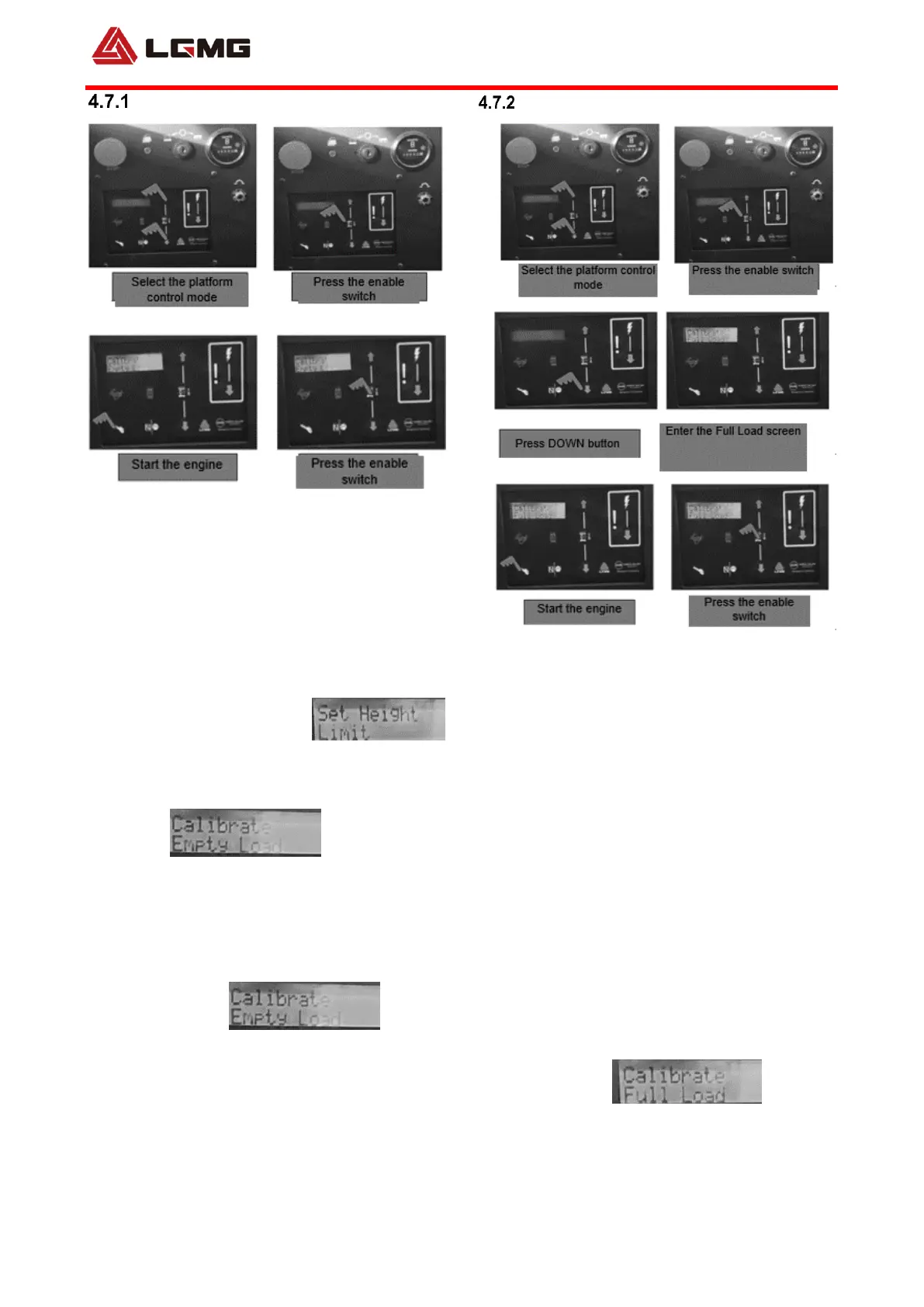

Fig. 4.15 Idle load calibration
1. Turn on the emergency stop switches of PCU
and GCU, press UP and DOWN buttons with
both hands simultaneously, and turn the key to
the GCU position;
2. Press UP button until the display screen
shows “Calibrate Mode”, and then press the
enable switch to enter
screen;
3. Press DOWN button until the display screen
shows ;
For purpose of calibration, the oil
temperature should be 40°C. In case of low
oil temperature, lift the fork several times to
raise the oil temperature.
4. After entering screen,
press the ignition button to start the engine;
5. Press the enable switch to initiate idle load
calibration of the machine.
Rated load
Fig. 4.16 Rated load calibration
1. Turn on the emergency stop switches of PCU
and GCU, press UP and DOWN buttons with
both hands simultaneously, and turn the key to
the GCU position;
2. Press UP button until the display screen
shows “Calibrate Mode”, and then press the
enable switch to enter the corresponding
screen;
3. Press DOWN button until the display screen
shows “complete”.
For purpose of calibration, the oil
temperature should be 50°C. In case of
low oil temperature, lift the fork several
times to raise the oil temperature.
4. After entering screen,
press the ignition button to start the engine;
5. Press the enable switch to initiate load
calibration of the machine.
