17

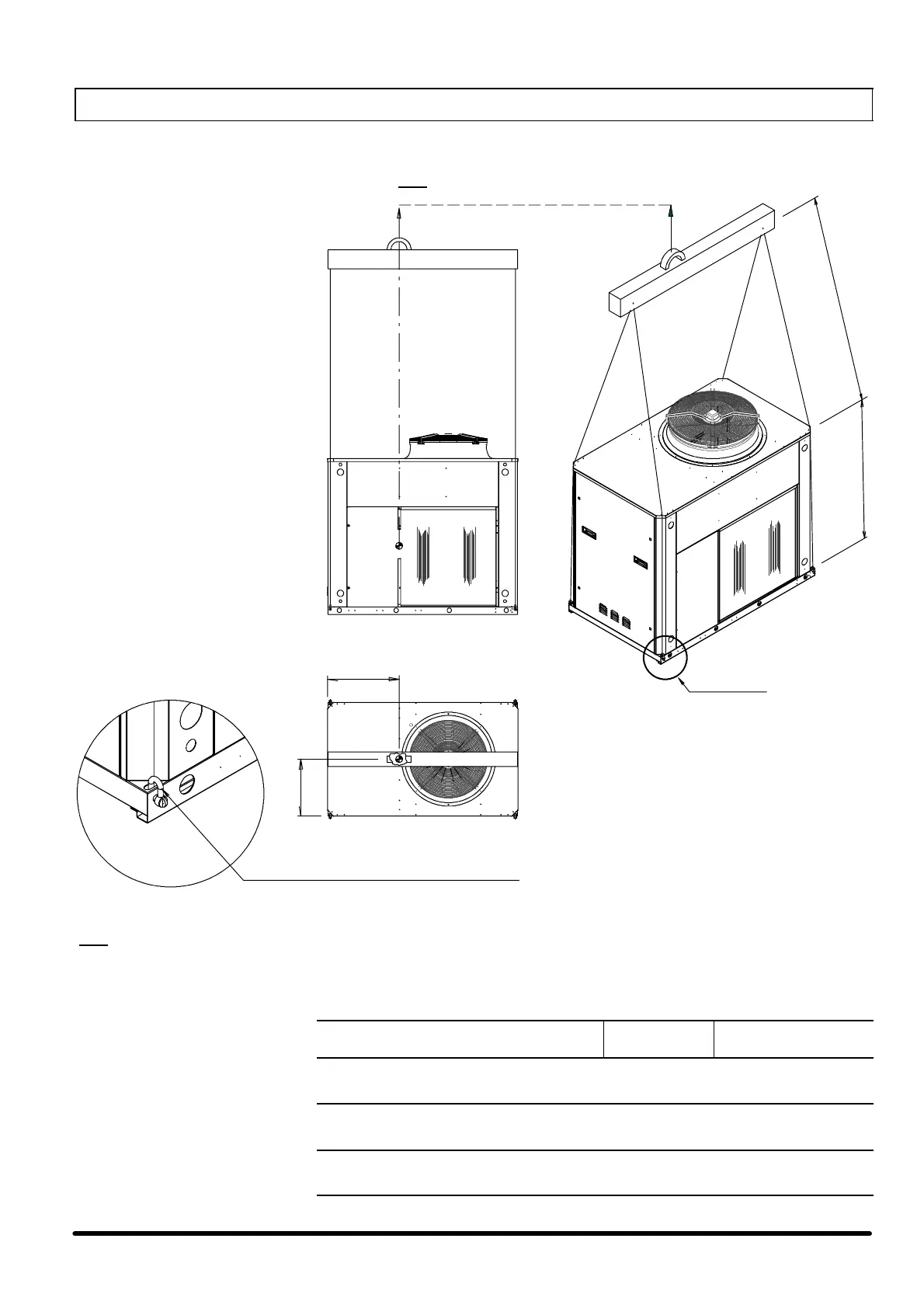

Fig. 3 --- Lifting instructions with straight shackle
N.B: The capacity of the lifting gear must be adequate to lift the load in question. Check the weight of the unit, the capacity of the
lifting gear and ropes and the condition and suitability of the aforementioned equipment.
L
ift the unit with a speed suitable for the load to be moved, so as not to damage the structure.
”G”
”G”
”Xg”
”Yg”
”A1”
”A2”
STRAIGHT SHACKLE Ø 14 (UNI 1947) “A” TYPE
(OPTIONAL)
LIFTING SYSTEM WITH
STRAIGHT SHACKLE
N.B.: LIFTINTHEBARICENTRELINE“G”OFTHEUNIT
PART. “A”
PART. “A”
Lifting
Models Fans number
“A1 + A2 ”
(m)
CBH / SBH 004---006---007---204---206---207
CLH / SLH 004---006---204---206
CQH / SQH 004---204
1 ' 5
CBH / SBH 008---011---014
CLH / SLH 007---207---008---011
CQH / SQH 006---007---206---207---008
2 ' 6
CBH/SBH016
CLH / SLH 014---016
CQH / SQH 011---014---016
3 ' 6
