Liebert MATRIX S 004-016 - Drawings

15

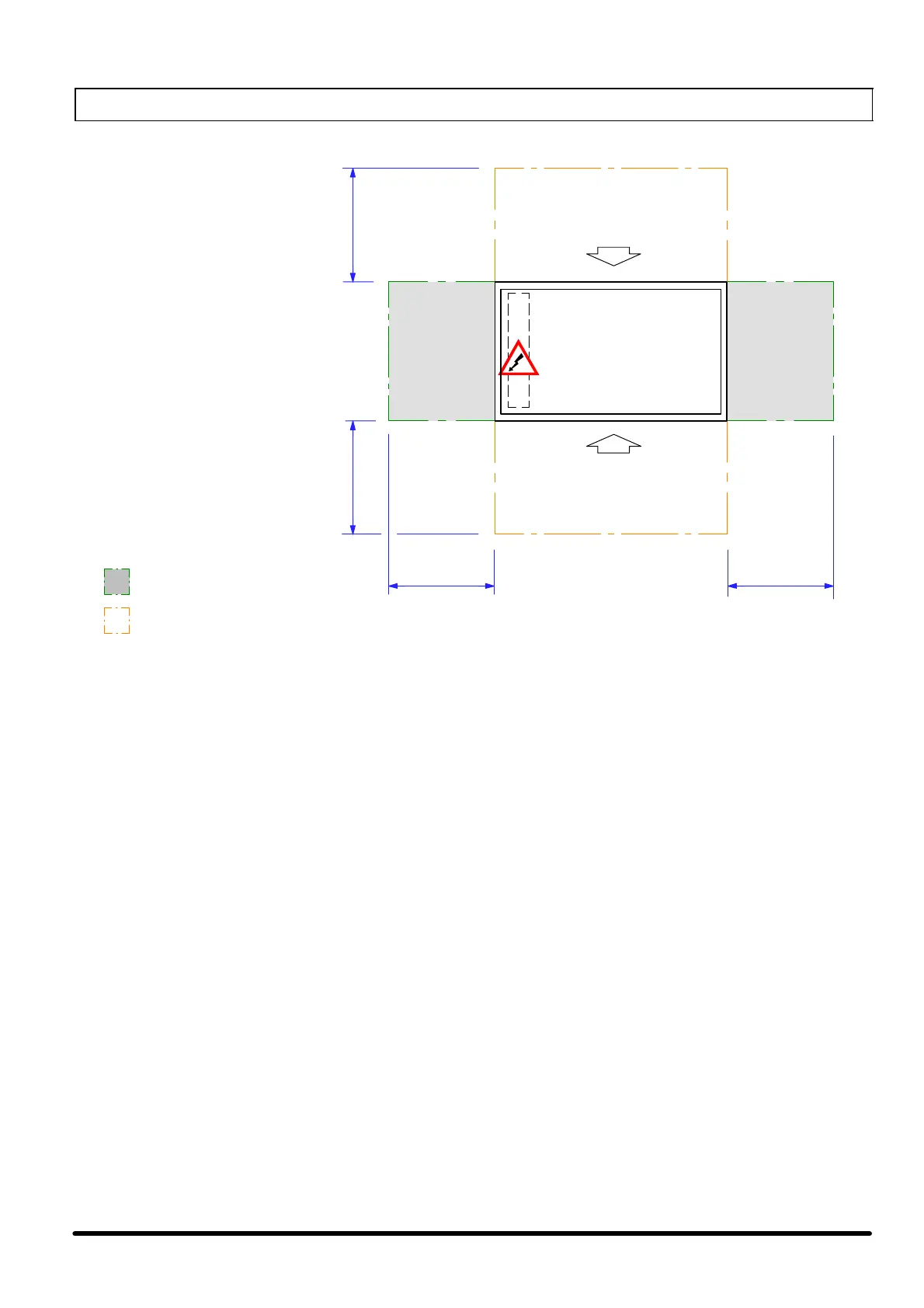

Fig. 1 --- Service areas (top view)
Ordinary
maintenance area
Extraordinary
maintenance area
1000 1000 (*)
10001000
AIR
AIR
Notes:
Minimum distance between 2 units from condensing coil side = 2m
Do not obstruct the air exiting the fans for a minimum distance of 2.5m
(*) 1500 mm (with 160 --- 200 Lt Tank); 2500 mm (with 400 Lt Tank)
