Chapter 9 Optional Parts
104
Layout for No.2~4 floors
Layout for No.1 floors
General Layout

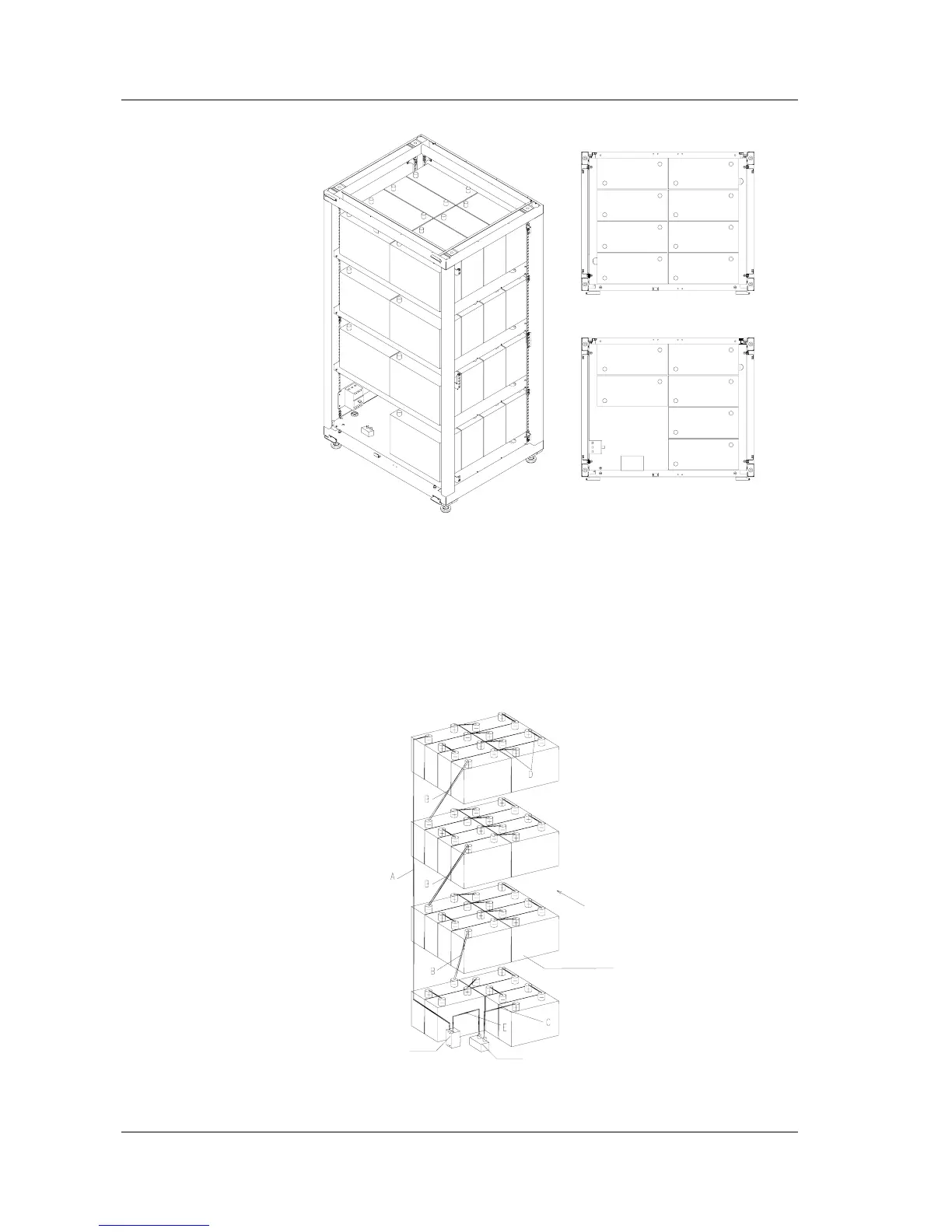

Fig.9-3 Battery layout inside battery cabinet
UF-B0100-30 can hold 30 12V/100Ah maintenance free batteries. The voltage can
be 360V after the batteries are connected in series. The batteries are placed in 4
floors as shown in Fig.9-4.
Follow the steps below to connect the batteries between different floors and
connect the battery switch:
Front view
30 12V battery cells
output
switch
filter inductor
Fig. 9-4 Wiring of the batteries inside the UF-B0100-30 battery cabinet
To Next Page
