Chapter 5 Operation of Display Panel
48
5.2 The displayed information
5.2.1 Opening display

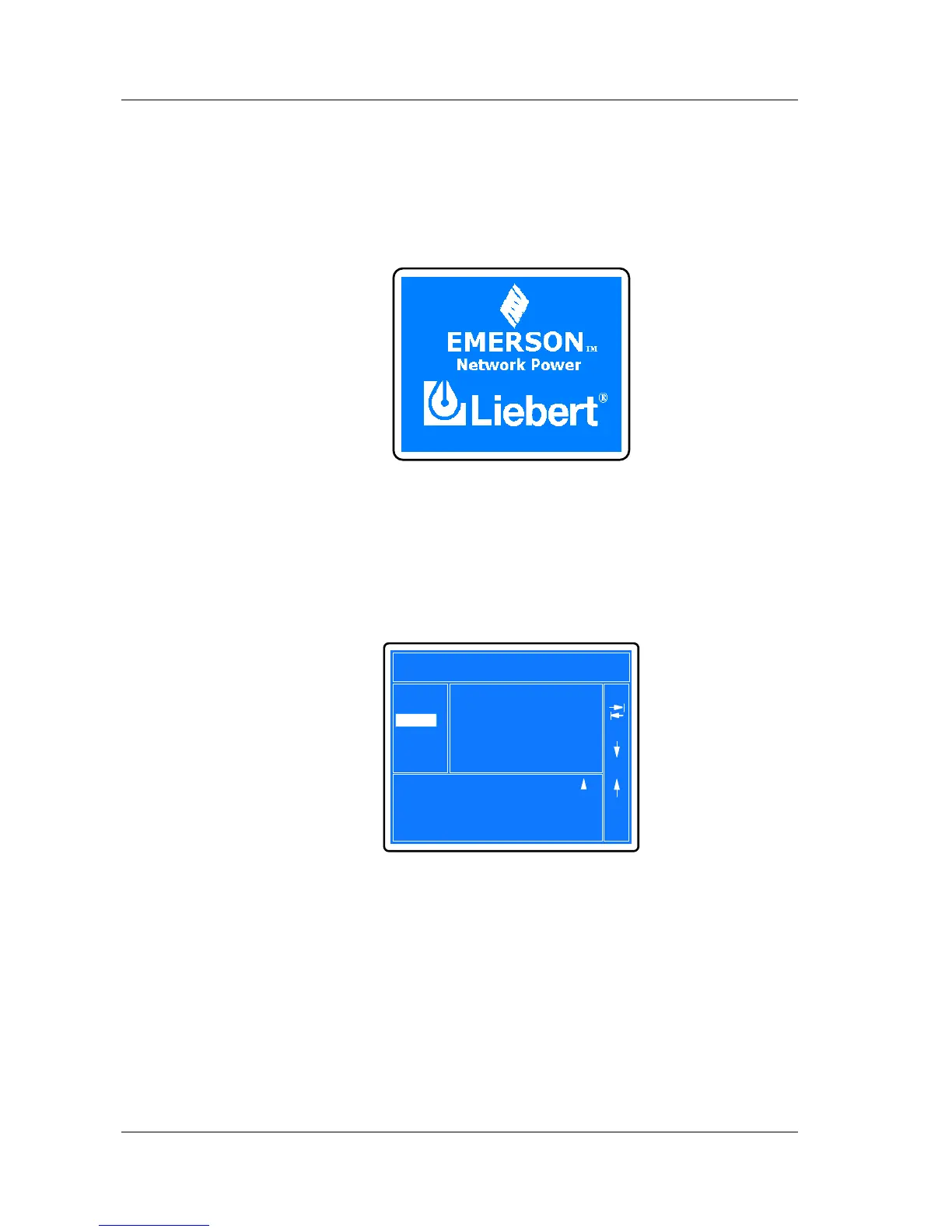

At power up of the UPS, the opening display is shown in Figure 5-5.
Fig. 5-5 Opening Display
5.2.2 Main Menu Display
After the UPS is power up and self test is completed, the main menu will be
displayed, as shown in Figure 5-6. Use the arrow-up and arrow-down key to scroll
the menu and the history log.
2001-11-08
UL33-0400L
12:30:20
Inv. On Units: ID 1
A(B)
B(C)
C(A)
221
11.8
12.3
12.5
50.2
50.1
50.1
1.41
1.40
1.41
Input Breaker Close
11£ -08 12:09
Output Breaker Open
UPS in Normal Mode
Batt. Boost Charging
11£ -08 12:09
11£ -08 12:09
11£ -08 12:09
11£ -08 12:09
Bypass
Local
System
Battery
220 221
Byp. Breaker Close
Out
Power KW
Cap.
KVA
Load%
Crestor
Factor
Records
Fig. 5-6 Main Menu
5.2.3 UPS Basic Information
The current basic UPS information will be displayed by pressing the F1 and F4
keys together.
