10. 9V Terminal and Smoke Alarm Remote Control
9V Terminal
WARNING: THIS TERMINAL IS NOT ISOLATED FROM THE MAINS SUPPLY.
This 9V terminal is a 9V DC positive output and can be used for the following applications:
1. As an output to operate the smoke alarm as part of an early warning system.
The 9V terminal in this smoke alarm is intended for use with a security/fire alarm panel where a signal
from that panel can be used to activate a single Smoke Alarm or interconnected Smoke Alarms to
alert residents/occupants that an alarm has been activated elsewhere and there may be cause to
evacuate the area.
2. To provide power to ancillary devices.

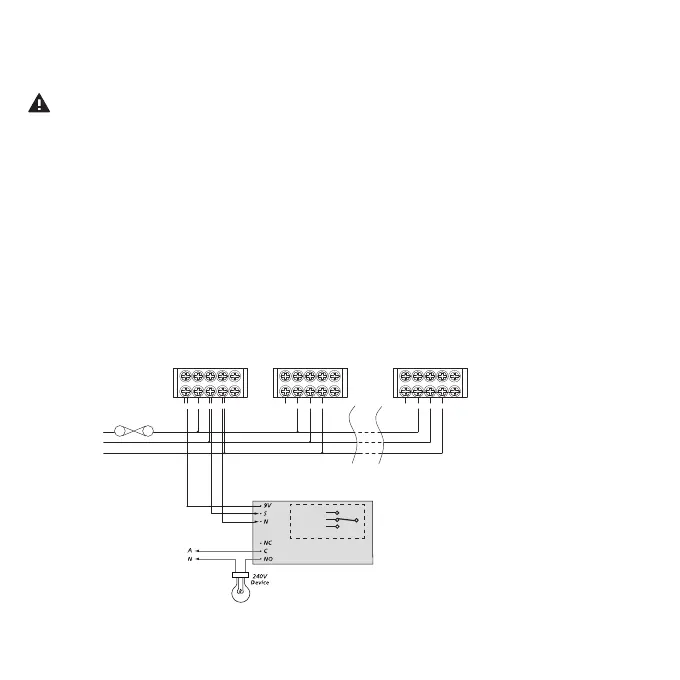

Connecting the 9V, SW and N terminals to the smoke alarm isolation relay LIFSAIR or LIFSAIRMB
allows the smoke alarm to activate devices such as emergency exit lights, sirens, strobes, bells, or
exhaust fans which do not exceed 240AC @ 5A. Refer to the diagram below.
• Secondary Contacts NO and NC are activated
by smoke alarm interconnect switch wire
6000/6000RL smoke alarms
• Contacts are rated 240V AC 5Amps
SM pulse
SWTICH
SM latching
CO
LOOP
N
SW
A
9V
LOOP
N
SW
A
9V
LOOP
N
SW
A
9V
1
2
24
YELLOW
RED
WHITE
BLUE ORANGE ORANGE
YELLOW
RED
WHITE
BLUE
CONNECTION TO A
MAXIMUM OF 24 SMOKE ALARMS
FUSE ON
CIRCUIT
BREAKER
Isolation Relay LIFSAIR/LIFSAIRMB.
Refer to manual for more details.
