Lifetime 2871 User Manual

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
8
SEC
SEC
1.1
SEC
1.3
SEC
1.2
1
FRAME ASSEMBLY:
BCF
BAU
BAU
BCE
BCE
BAN
BAN
BAV
BAV
BAM
BAM
BAY
BCF
BAN
BAN
BAX
BAW

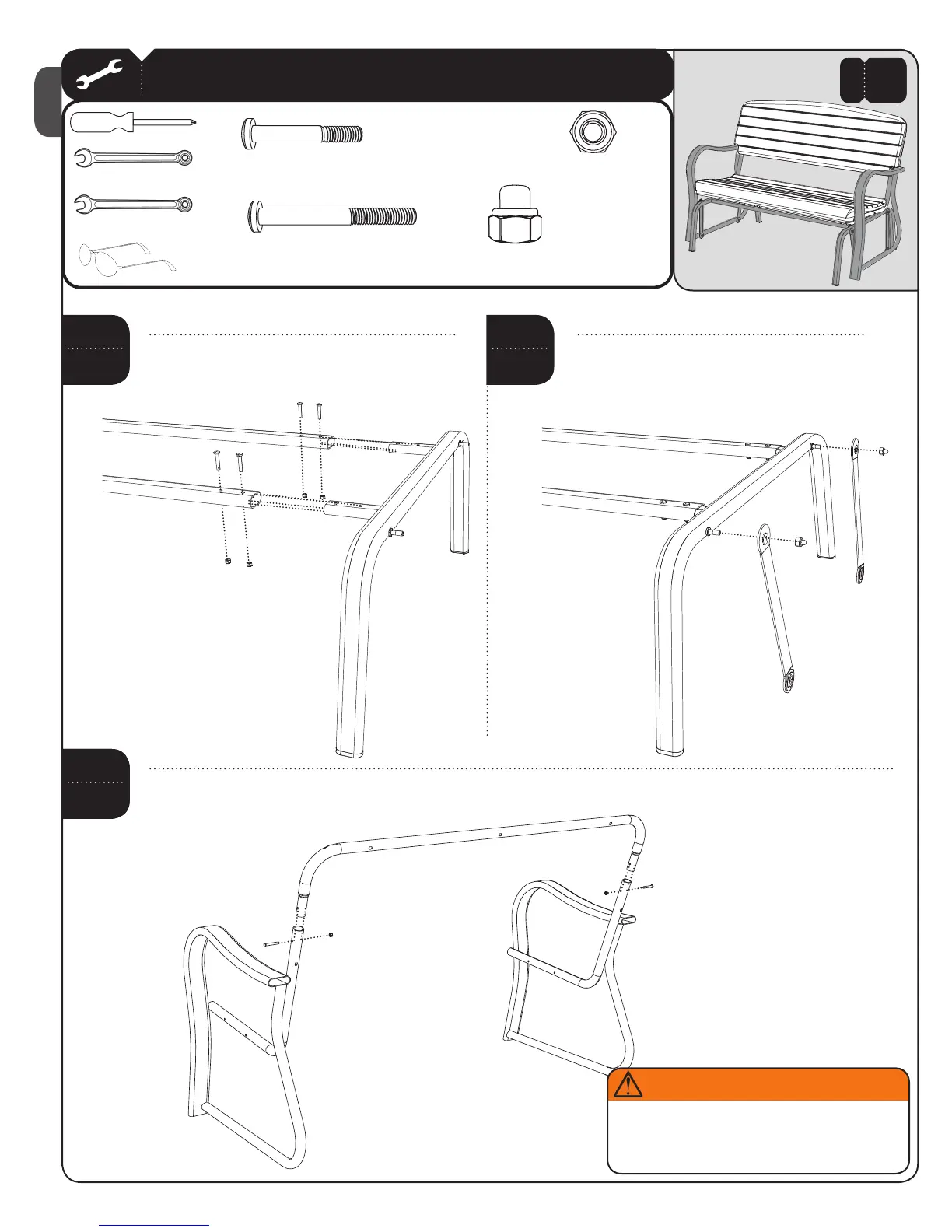

OrienttheBearing Arms (BAV)sotheyangleaway
fromtheLegswhenattached.ConnectBearing
Armsusingthehardwareshown.Completefor
bothLegs.
AttachtheLeg Cross Supports (BAU)totheRight and
Left Legs (BAS and BAT)usingthehardwareshown.
ConnecttheBack Cross Support (BAY)totheRight and Left Arms (BAW and BAX)usingthehardwareshown.
BAS
BAS
WARNING
DonotovertightentheCapNut.Iftheendof
theBoltbreaksthroughtheplasticcap,callour
CustomerServiceDepartment.Exposedthreads
ontheendoftheBoltmaycauseseriousinjuries.
SEC
1.3
BAM(x4)
BAN(x10)
BCE(x8)
7/16”
5/16”
BCF(x2)
1.

Lifetime 2871 Specifications
