11

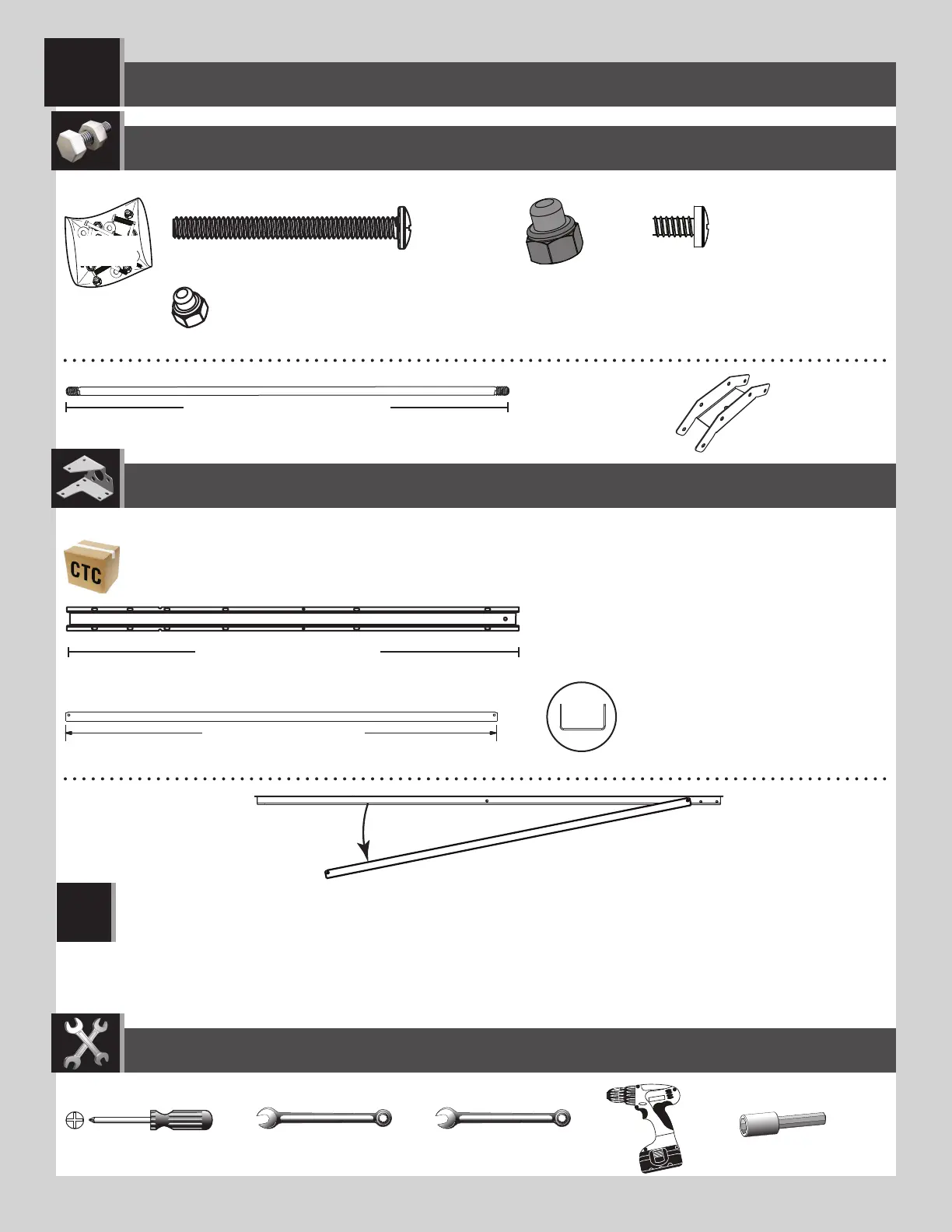

TRUSS ASSEMBLY / ASSEMBLAGE DES FERMES / ENSAMBLE DE LAS CERCHAS
2
ADH (x1)
DSR (x2)
AFG (x1)
ADY (x4)
ADK (x8)
ADJ (x2)
50 9/16 in/po (≈1,28 m)
48 in/po (≈1,22 m)
DTK (x4)
7/16 in/po (≈11 mm) (x2) 3/8 in/po (≈10 mm)
BEA
Metal Parts / Pièces en métal / Piezas de metal
Hardware Bag / Sac de quincaillerie / Bolsa de herraje
TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO
PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS
HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO
3/8 in/po (≈10 mm)
AIP (x1)
AIP (x1)
11 9/16 in/po (≈29,4 cm)
DSR
AFG
• Sometimes during shipping, the Truss Brace (AFG) slides over the back of the Truss Gutter Channel (DSR). The two pieces are the same color. If you think
you’re missing a Truss Brace, check to see if is stuck to the back of the Truss Gutter Channel, and separate the two.
• Durant le transport, parfois le support de ferme (AFG) glisse par-dessus l’arrière du canal de ferme (DSR). Les deux pièces sont du même colour. Si vous
pensez que vous n’avez pas de support de ferme, vérifi ez s’il y a un support de ferme adhéré à l’arrière du canal de ferme, et séparez les deux.
• Durante el transporte, a veces el soporte de cercha (AFG) deslice sobre el dorso del canalon de cercha (DSR). Las dos piezas son de la misma color. Si pienza que le
falta un soporte de cercha, verifi que si haya un soporte pegado al dorso del canalón de cercha, y separe las dos.
!
11 9/16 in/po (≈29,4 cm)
