TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
11
SEC
2
SEC
2.1
SEC
2.2

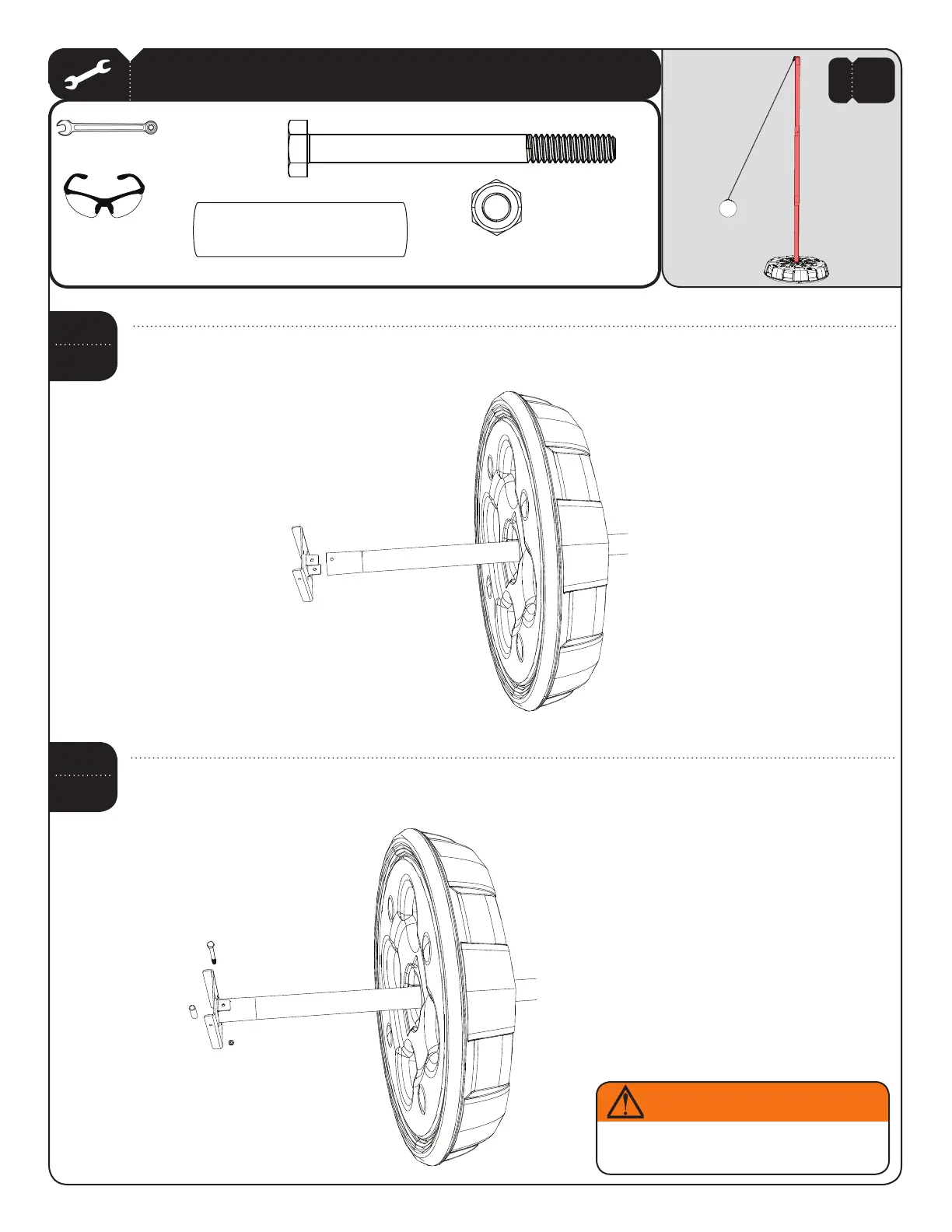

Turn the Base (AZM) on its side and slide the flared end of the Pole Assembly through the hole in the Base. Align the
tabs of the Base Plate (AZX) with the holes on the flared end of the Pole Assembly.
AZM
AZX
AAS
AZP
AZU
With the holes in the tabs of the Base aligned with the holes in the Pole Assembly, secure the Base Plate to the
Pole Assembly using the hardware shown. Tighten Nut (AZP) securely.
AAS (x1)
7/16” (x2)
AZU (x1)
AZP (x1)
POLE TO BASE ASSEMBLY
WARNING
Do not place the system in an upright position until
instructed. The system may fall over and could result in
serious personal injury or property damage.
