Lifetime 90135 - Step 3.1: Assemble Wing Tip Seats; Step 3.2: Attach Wing Support Brace

28
TOOLS AND HARDWARE REQUIRED
X SECTION 3 (CONTINUED)
CVZ
ATB
ATB
ATB
DXX
DXX
CVZ
CQD
CQD
CQF
CQE
X
CVZ (x9)
ATB (x9)
DXX (x9)
3.1

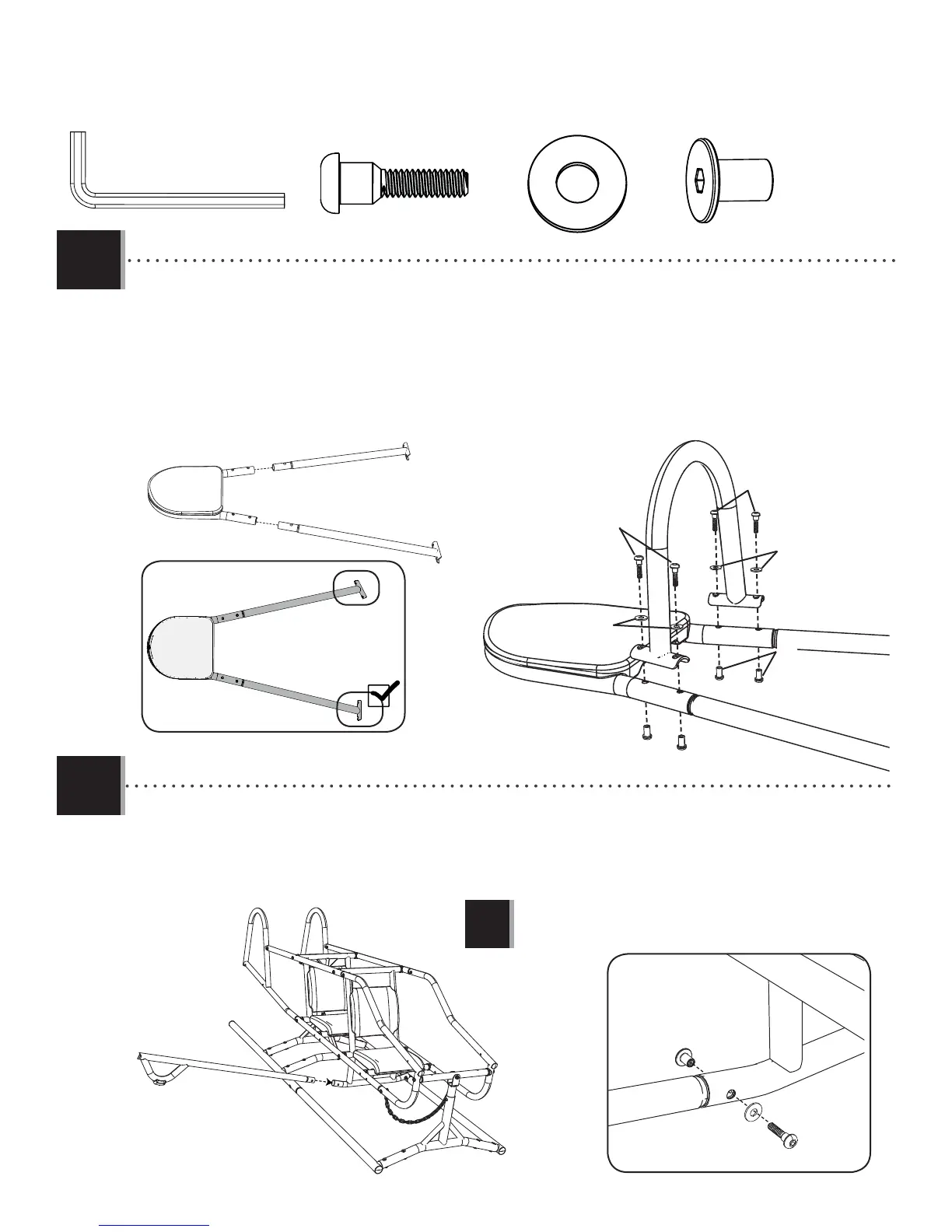

• Slide the Wing Pieces (CQD) into the Wing Tip Seat (CQF) as shown. Place the Wing Handle (CQE) onto the Wing Tip Seat and
secure with the hardware shown. The hardware also secures the Wing Pieces to the Wing Tip Seat. Repeat this step to
assemble the other Wing Seat Assembly.
3.2
DXX
CVZ
ATB
CQC
CPW
• Only fi nger-tighten this hardware.
!
• Slide the Wing Support Brace (CQC) into the bottom tube of the Front Seat Back Support (CPW) as shown. Secure with
the hardware shown.
3/16 in/po (≈5 mm)
(2)
