Lifetime 90135 - Step 3.4: Secure Wing Assembly to Fuselage

29
TOOLS AND HARDWARE REQUIRED
X SECTION 3 (CONTINUED)
3.3
3.4
ATB (x2)DXX (x2)
CVZASB
ASB CVZ
CVZ (x2)

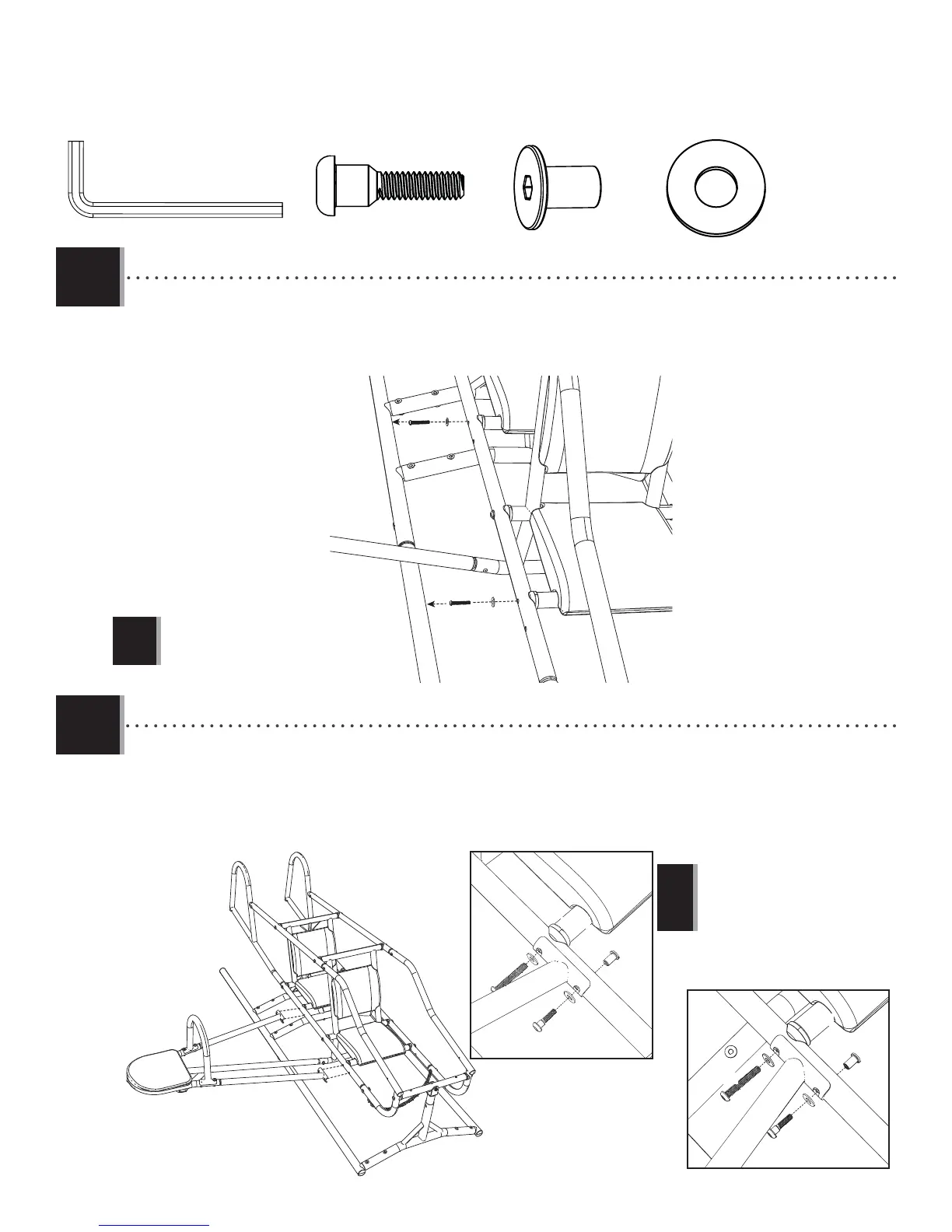

• Remove the Bolts (ASB) and Washers (CVZ) from the seat support (on the side of the Fuselage shown) that were
placed in Sec 2.7 and 2.9.
• Secure the Wing assembly to the Fuselage using the hardware that was removed in Sec 3.3, and adding the rest of the
hardware as shown. Make sure the Bolts (ASB) go into the Cockpit Seat Support (CQA).
ASB
CQA
CVZ
CVZ
DXX
ATB
CQA
ASB
CVZ
CVZ
DXX
ATB
• Only fi nger-tighten this hardware.
!
• Only fi nger-tighten this hardware.
!
3/16 in/po (≈5 mm)
(2)
