Lifetime 90135 - Step 3.5: Position Wing Assembly on Brace; Step 3.6: Attach Second Wing Support Brace

30
TOOLS AND HARDWARE REQUIRED
X SECTION 3 (CONTINUED)
3.5
3.6
ASB (x1)
CVZ (x2)
ATB (x1)
DXX (x1)
ASB
CVZ
• Only fi nger-tighten this hardware.
!

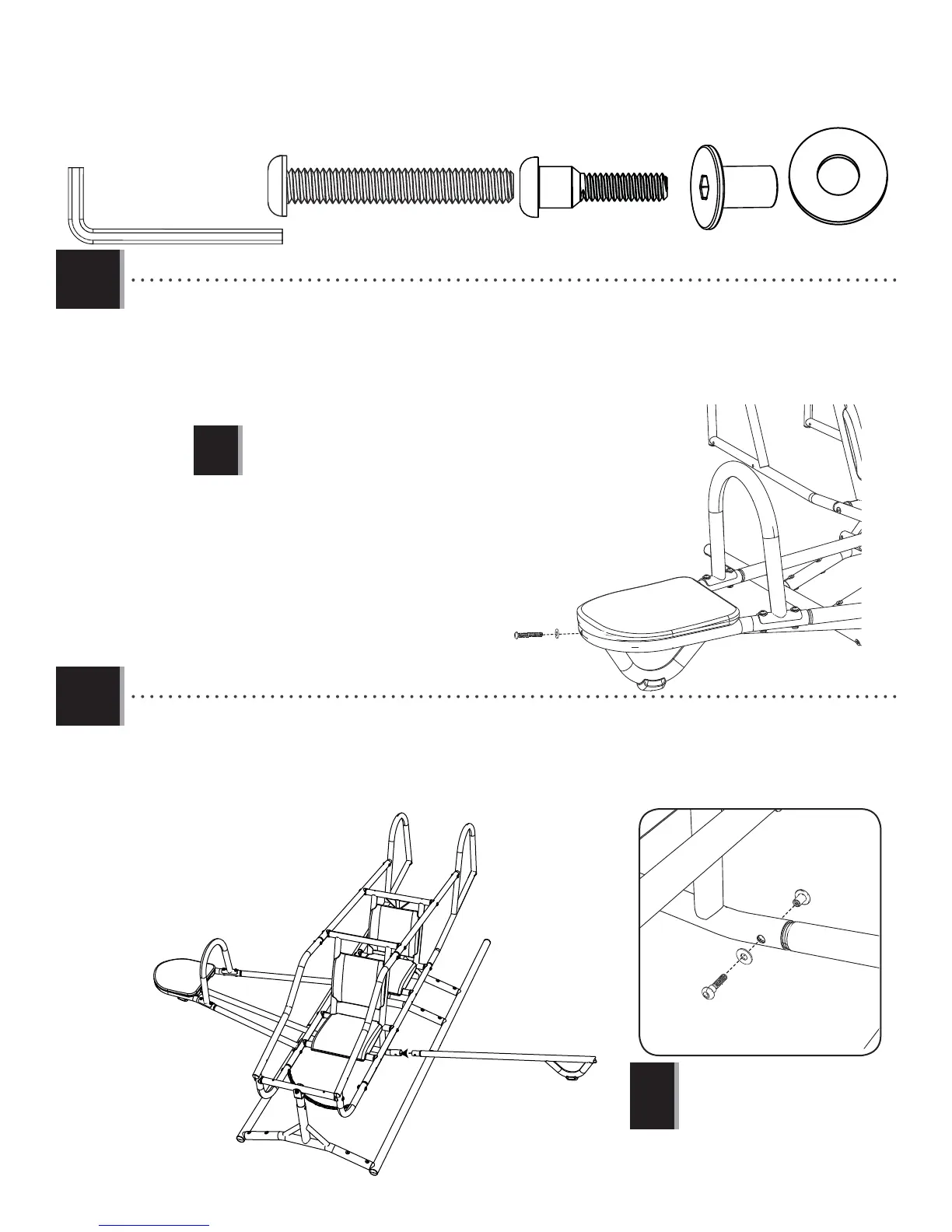

• Position the Wing Assembly into the notch at the end of the Wing Support Brace (CQC) and secure the Wing
Assembly to the Wing Support Brace with the hardware shown.
.
• Slide the other Wing Support Brace (CQC) into the bottom tube of the Front Seat Back Support (CPW) as shown. Secure
with the hardware shown.
CVZ
ATB
CQC
DXX
• Only fi nger-tighten this hardware.
!
3/16 in/po (≈5 mm)
(2)
