31
TOOLS AND HARDWARE REQUIRED
X SECTION 3 (CONTINUED)
3.7
CVZ (x2)
ATB (x2)
DXX (x2)

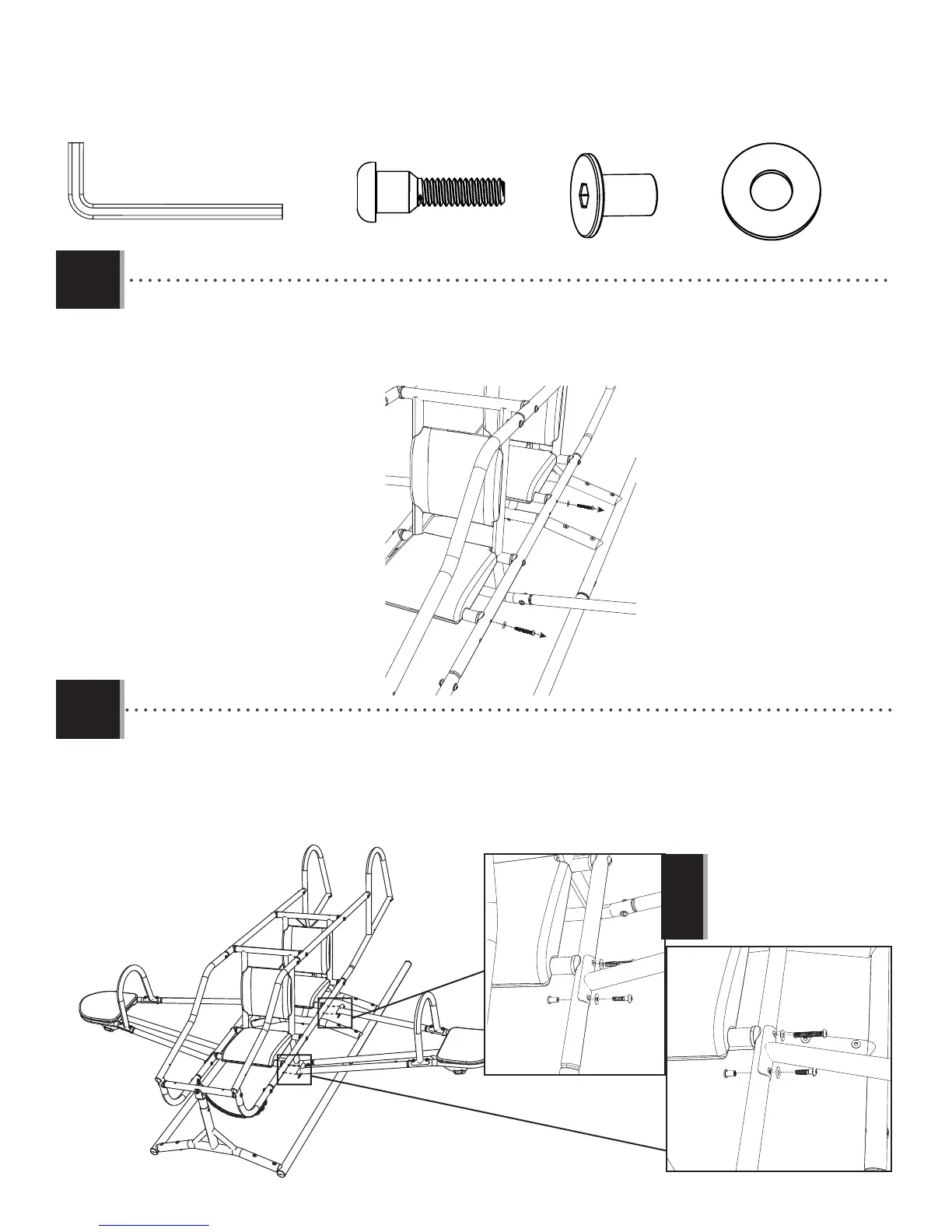

• Remove the Bolts (ASB) and Washers (CVZ) from the seat support (on the side of the Fuselage shown) that were
placed in Sec 2.7 and 2.9.
ASB
ASB
CVZ
CVZ
3.8
• Secure the Wing assembly to the Fuselage using the hardware that was removed in Sec 3.7, and adding the rest of the
hardware as shown. Make sure the Bolts (ASB) go into the Cockpit Seat Support (CQA).
DXX
CVZATB
ATB
CVZ
CVZ
DXX
ASB
CVZ ASB
• Only fi nger-tighten this
hardware.
!
3/16 in/po (≈5 mm)
(2)
To Next Page
