Lifetime 90135 - Step 3.9: Position Wing Assembly; Step 3.10: Attach Tail Section

32
TOOLS AND HARDWARE REQUIRED
X SECTION 3 (CONTINUED)
CVZ (x5)
ATB (x4)
DXX (x4)
3.10

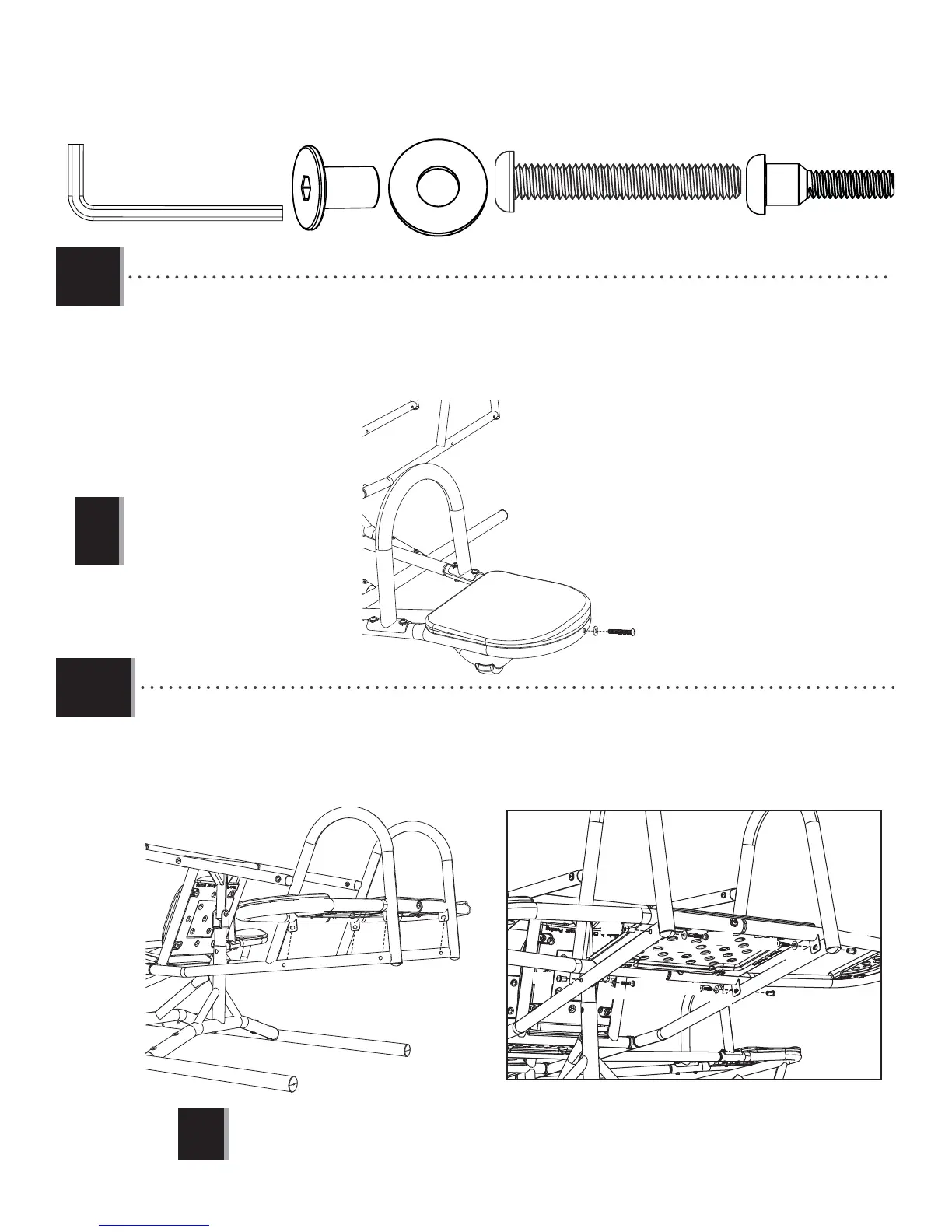

• Position the Wing Assembly into the notch at the end of the Wing Support Brace (CQC), and secure the Wing to the
Wing Support Brace with the hardware shown.
ASB
CVZ
CQC
• Only fi nger-tighten this hardware.
!
• Place the Tail (CQG) in the location shown. Align the holes in the Tail brackets with the holes in the Fuselage.
Secure with the hardware shown.
DXX
CVZ
ATB
ATB
ATB
ATB
CVZ
CVZ
CVZ
DXX
DXX
DXX
CQG
• Before moving to the next step, securely tighten all hardware used in this Section.
!
ASB (x1)
3.9
3/16 in/po (≈5 mm)
(2)
