Lifetime 90135 - Step 4.1: Install Nose and Dashboard; Step 4.2: Attach Propeller to Steering Tube

34
TOOLS AND HARDWARE REQUIRED
X SECTION 4 (CONTINUED)
ATJ (x4)
CVZ (x5)
CQH
CQB
ATJ
ATJ ATJ
ATJ
CVZ
CVZ
CVZ
CVZ

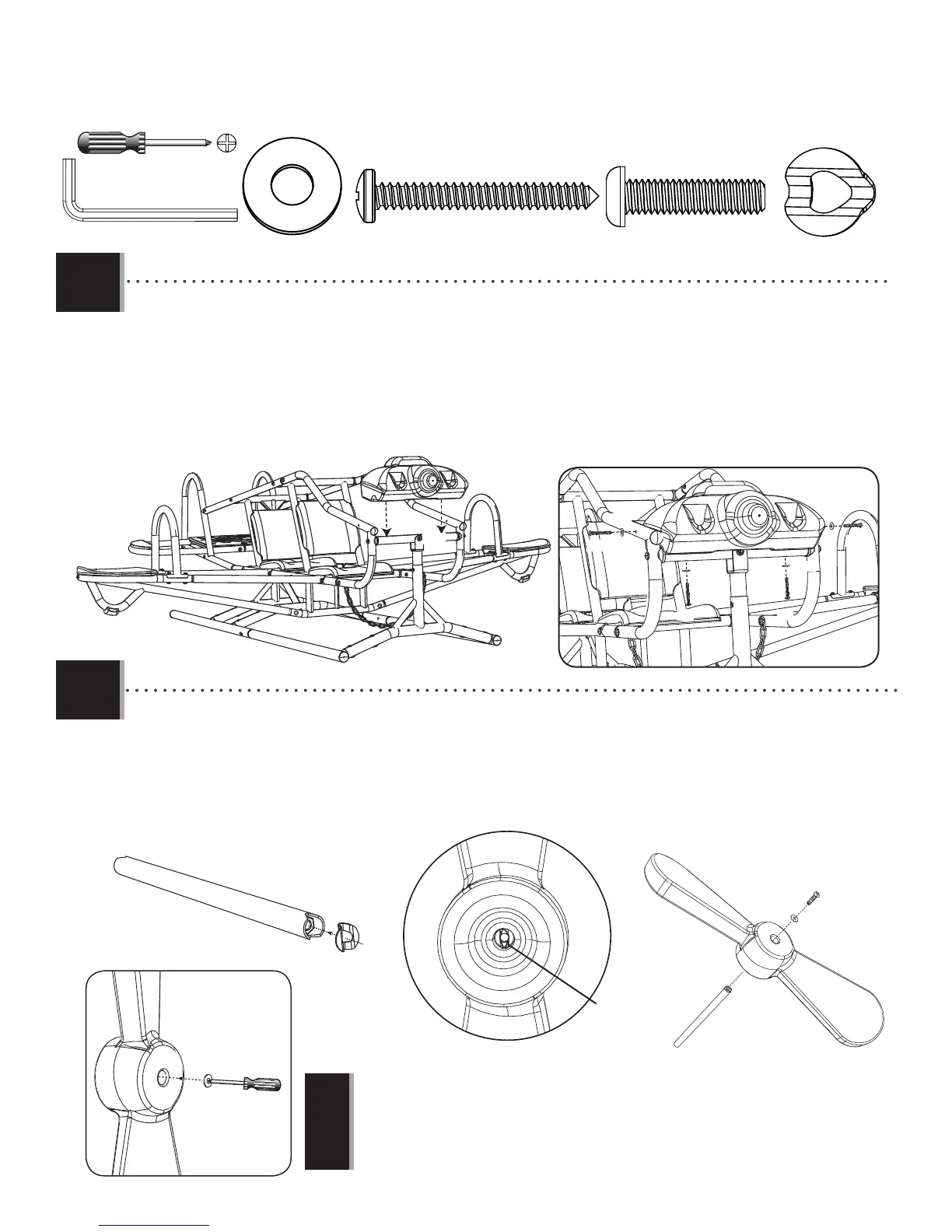

4.1
• Place the Nose and Dashboard Assembly (CQH) on the front of the fuselage and Position it over the Front Horizontal Pivot
(CQB). The nose should be snug. Attach the Nose and Dashboard Assembly to the front of the fuselage with the
hardware shown.
4.2
• Place the Formed Washer (ATK) at the end of the Steering Tube (CQI) and attach the Propeller (CQK) to the Steering Tube. For proper
placement, the notch in the Steering Tube should be aligned over the nub in the Propeller as shown.
CQK
CQI
ARX
CVZ
Nub
Saillie
Pedazo
CQI
ATK
CVZ
!
• You may need to use a screwdriver to press the Washers into the recess in the plastic.
ARX (x1)
ATK (x1)
3/16 in/po (≈5 mm)
(2)
(1)
