Lifetime 90135 - Step 1.1: Connect Front Skids; Step 1.2: Connect Rear Skids

14
TOOLS AND HARDWARE REQUIRED
X SECTION 1 (CONTINUED)
CVZ (x12)
DXY (x12)
ATB (x12)
CPP
CPP
CPL
DXY
ATB
ATB
DXY
CVZ
CVZ

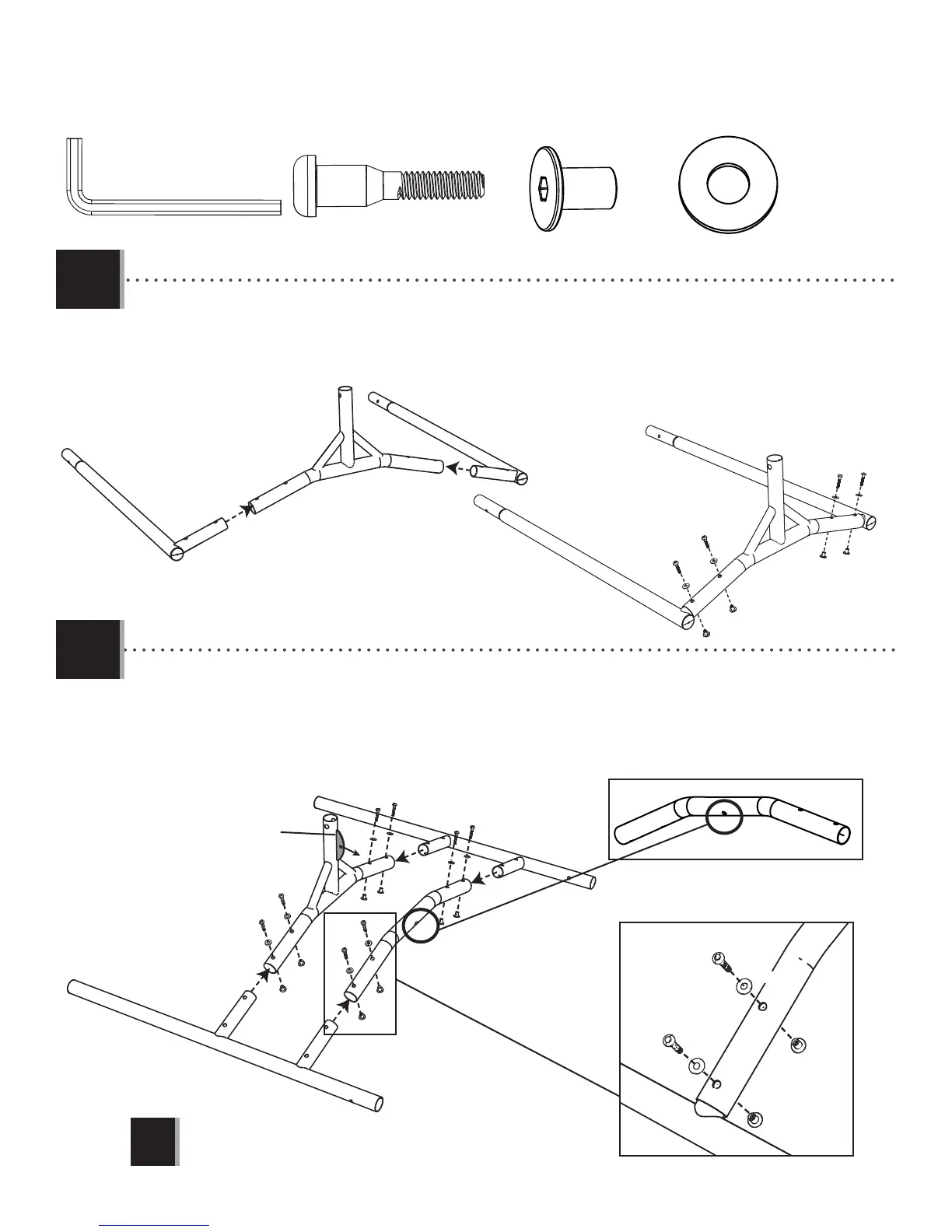

1.1
• Connect the two Front Skids (CPP) to the Front Cross Brace (CPL) with the hardware shown.
• Connect the two Rear Skids (CPQ) to the Rear Cross Brace (CPM) and the Middle Cross Brace (CPN). Secure with the
hardware shown.
ATB
CVZ
ATB
DXY
DXY
CVZ
CPQ
CPQ
CPM
CPN
• Only fi nger-tighten this hardware.
!
Orient this bracket in the
direction shown.
This hole should be facing down.
1.2
3/16 in/po (≈5 mm)
(2)
