28
X SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN)
TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / HERRAMIENTAS Y HERRAJE REQUERIDOS
5.11

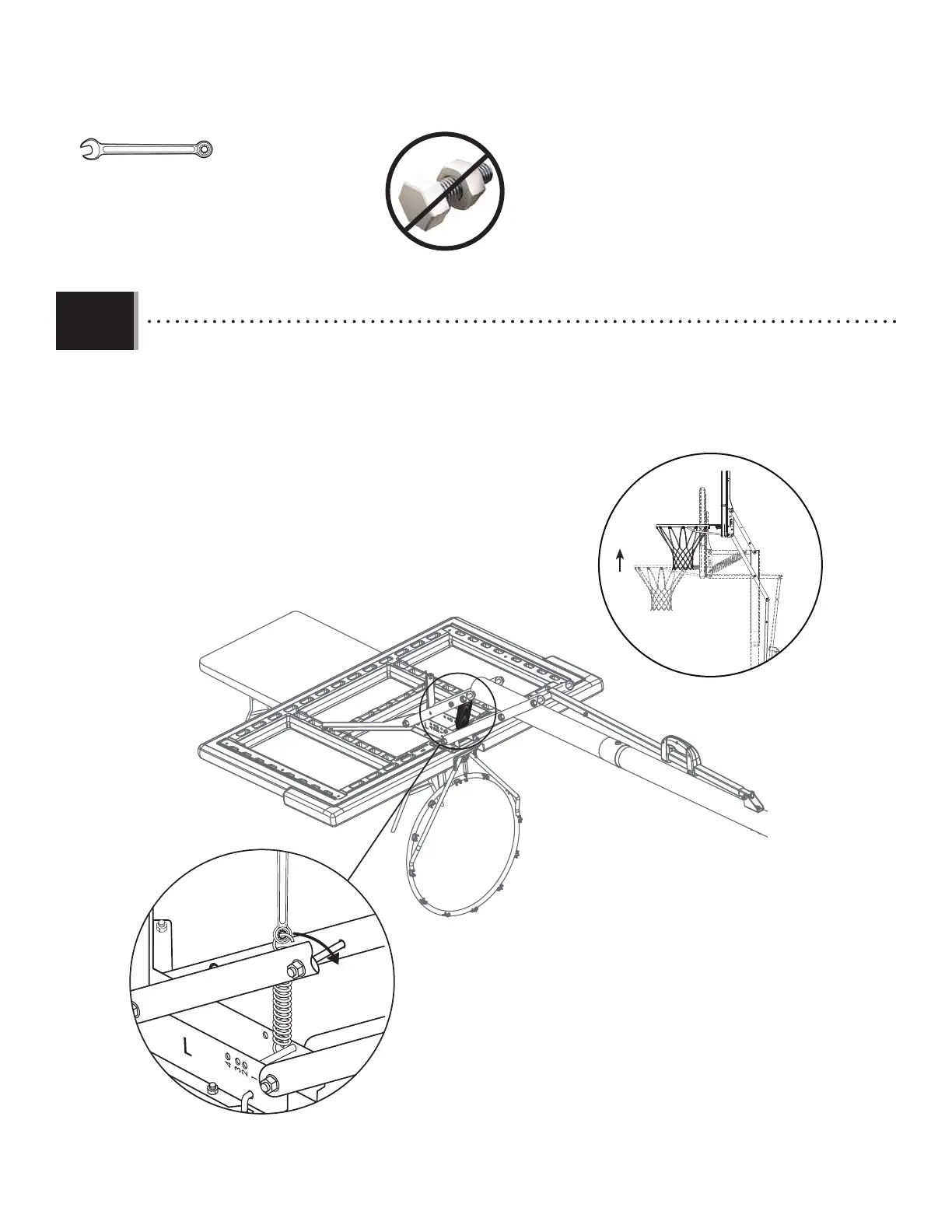

Raise the backboard to the highest position. Using the closed end of a wrench, stretch the counterbalance spring (AJY) up
and over the hex bolt (ABA) as shown.
Soulevez le panneau au niveau le plus haut. En ustilisant l’extrémité fermée d’une clé, stretch le ressort de
contrebalance (AJY) par-dessus le boulon hexagonal (ABA) comme illustré.
Levante el tablero al nivel más alto. Usando el extremo cerrado de una llave, extiende el resorte de contrapeso (AJY)
arriba y encima del perno hexagonal (ABA) como ilustrado.
ABA
AJY
