LightmaXX Shaft 5R Beam Moving Head ______
3. Accessories
1x Manual
2x Camlock Mounting bracket
1x Signal line
1x Power Supply
1x Lamp (installed)
4. Installation information
4.1 Equipment mounting bracket installation

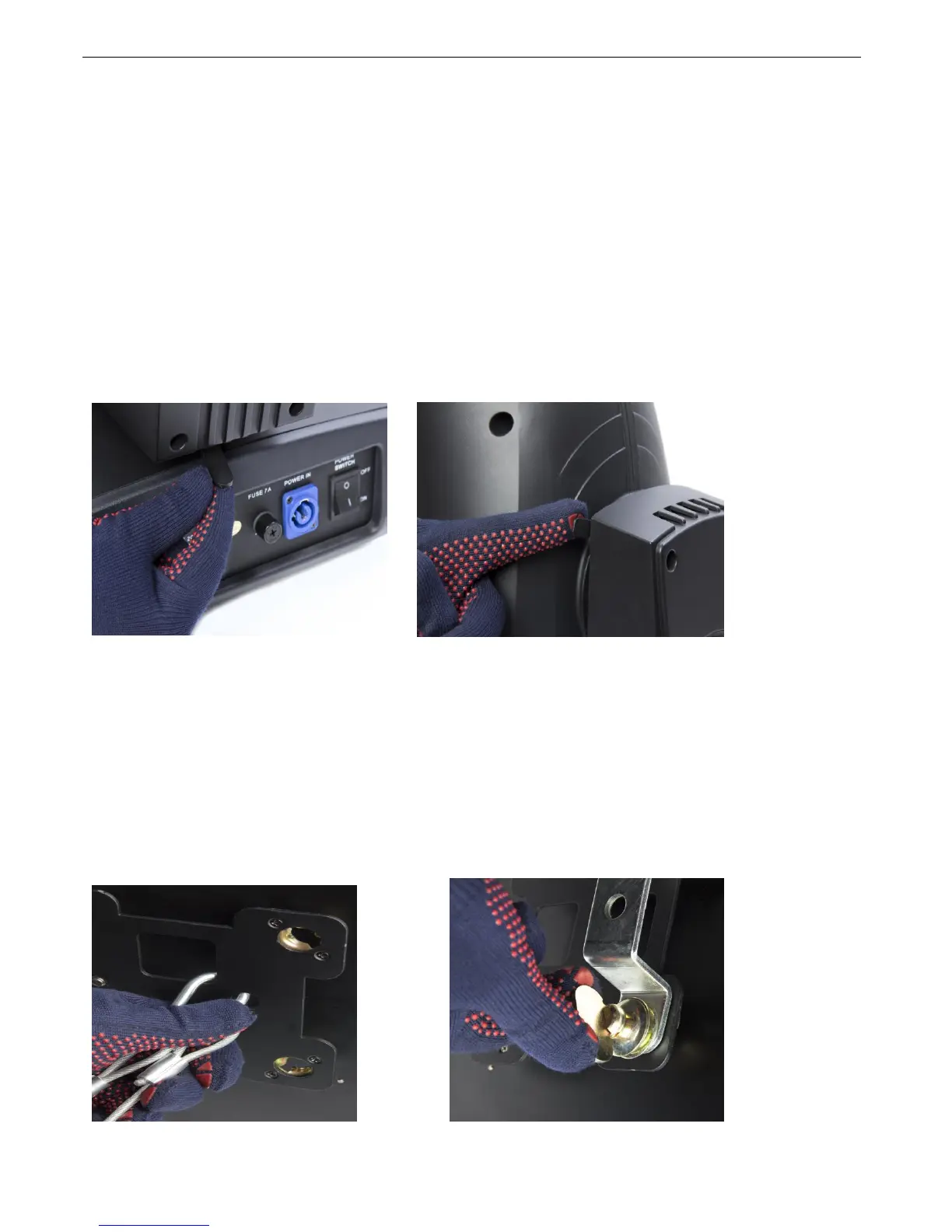

Please lock the X and Y axis transport protection, to alleviate the installation.
(Picture 1 & 2)
X-axis of the lock-bit pattern
Y-axis of the lock-bit pattern
Caution：
1. Before mounting the device, make sure the clamps and drawbridges are adequate to bear up 10 times the
weight of the equipment. Please check for Truss Installation the load limits of the respective Manufacturer.
2. Fix the clamps and drawbridge with the M12 screw and nuts.
3. Install the drawbridge to the light base with the fixing device and Screw the fastener clockwise.
4. The Projector can get installed in standing and hanging positions.
5. Always use Safety Ropes while using device in a hanging position.
6. Verify, that there are no flammable items around the device which are closer than 0, 5 meters.
7. Unlock the protection lock after the installation, otherwise it won’t work normally and may cause damage.
19
