Operating Mode DMX:
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX chain. Always use DMX cab-
le with a 110 Ohm resistor for this connection. Address the device according to your DMX
configuration. The device has a DMX mode with 8 channels, which is based on the following
functions:
Operation:
All connections of the device should be made before switching on. Use only high-quality
cables that are as short as possible for the connections.

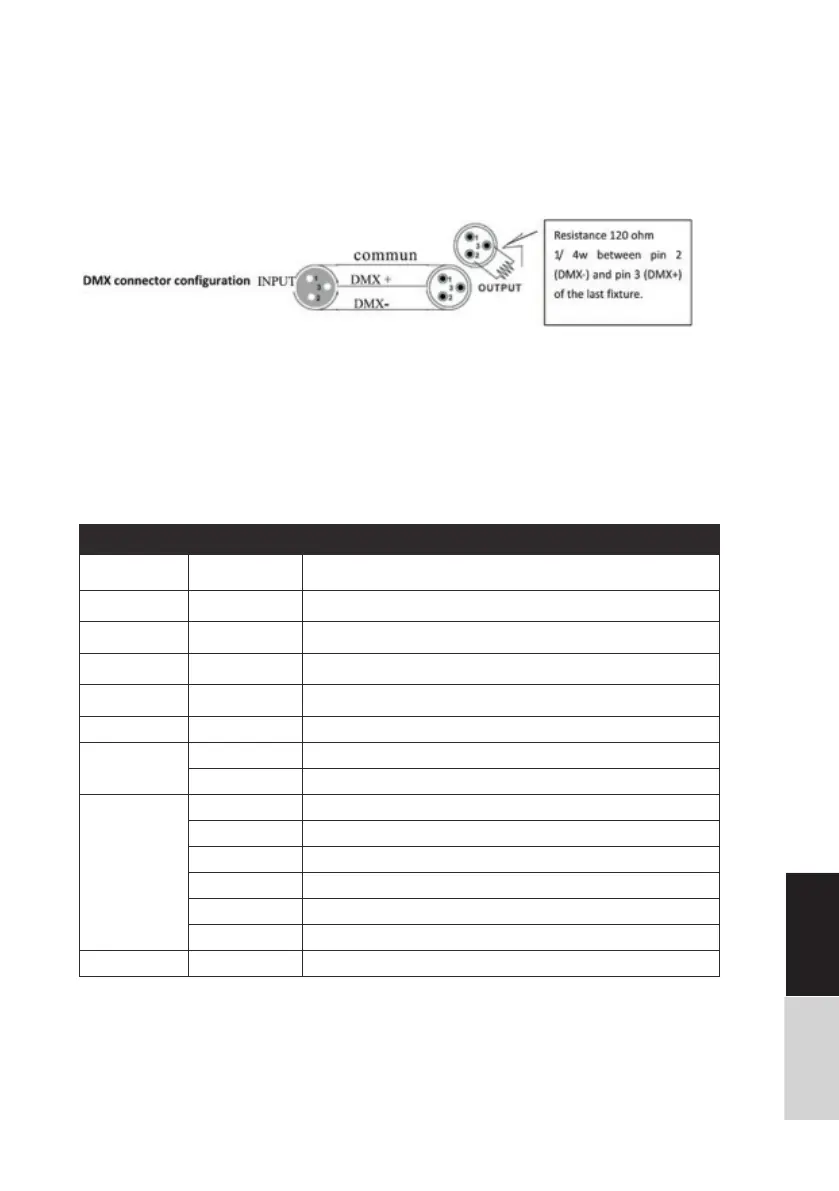

Configuration of the DMX plugs:
Channels Value Description
1 0~255 Dimming
2
0~255 Red
3
0~255 Green
4
0~255 Blue
5
0~255 White
6
0~255 Amber
7
0~9 No strobe
10~255 LED Strobe (From slow to fast)
8
0~50 Manual mode, the first 7 channels are effective
51~100 Jump variable, the same as „FF**“ mode, CH9 adjust speed
101~150 Gradual variable, the same as „CC**“ mode, CH9 adjust speed
151~200 Pulse variable, the same as „EE**“ mode, CH9 adjust speed
201~250 Auto mode, the same as „Auto“ mode
251~255 Sound mode, the same as „Sound“ mode
9
0~255 Adjust speed, only have effective to CH8 correlation mode
To Next Page
