Lightning Audio S2.200 - INSTALLATION; Stereo;Mono Operation and Impedance

- 11 -
+–
4Ω min.
–
+
–
+
2Ω min. 2Ω min.
InstAllAtion

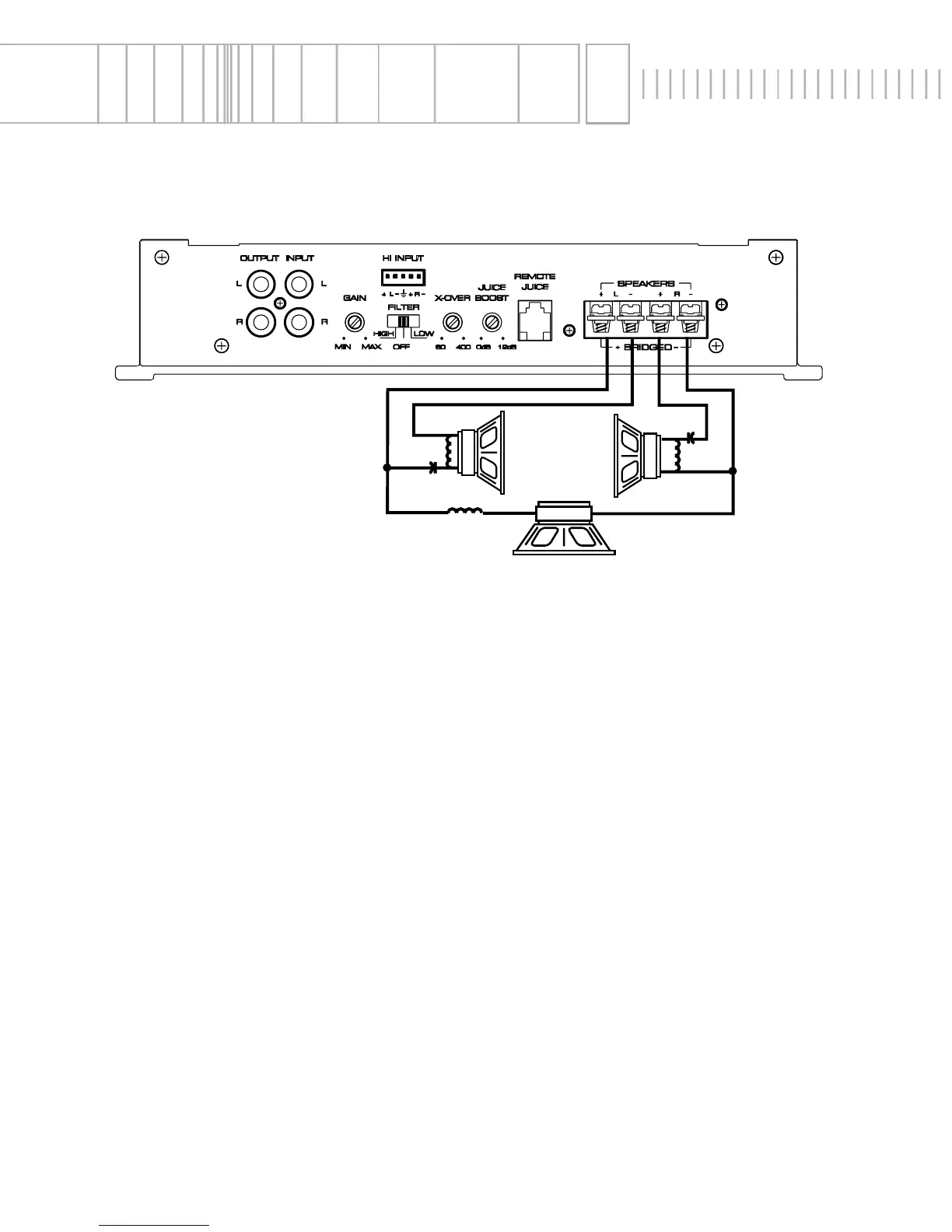

Stereo/Mono OperAtion
• RCA inputs are connected to both left and right channels.
• Gain for left and right channels are set equally to balance the subwoofer.
• Impedance for each channel should be 2Ω minimum.
• Impedance for mono channel should be 4Ω minimum.
• Crossover is set for Full Range.
• Passive Crossovers are needed for proper stereo/mono operation. .
