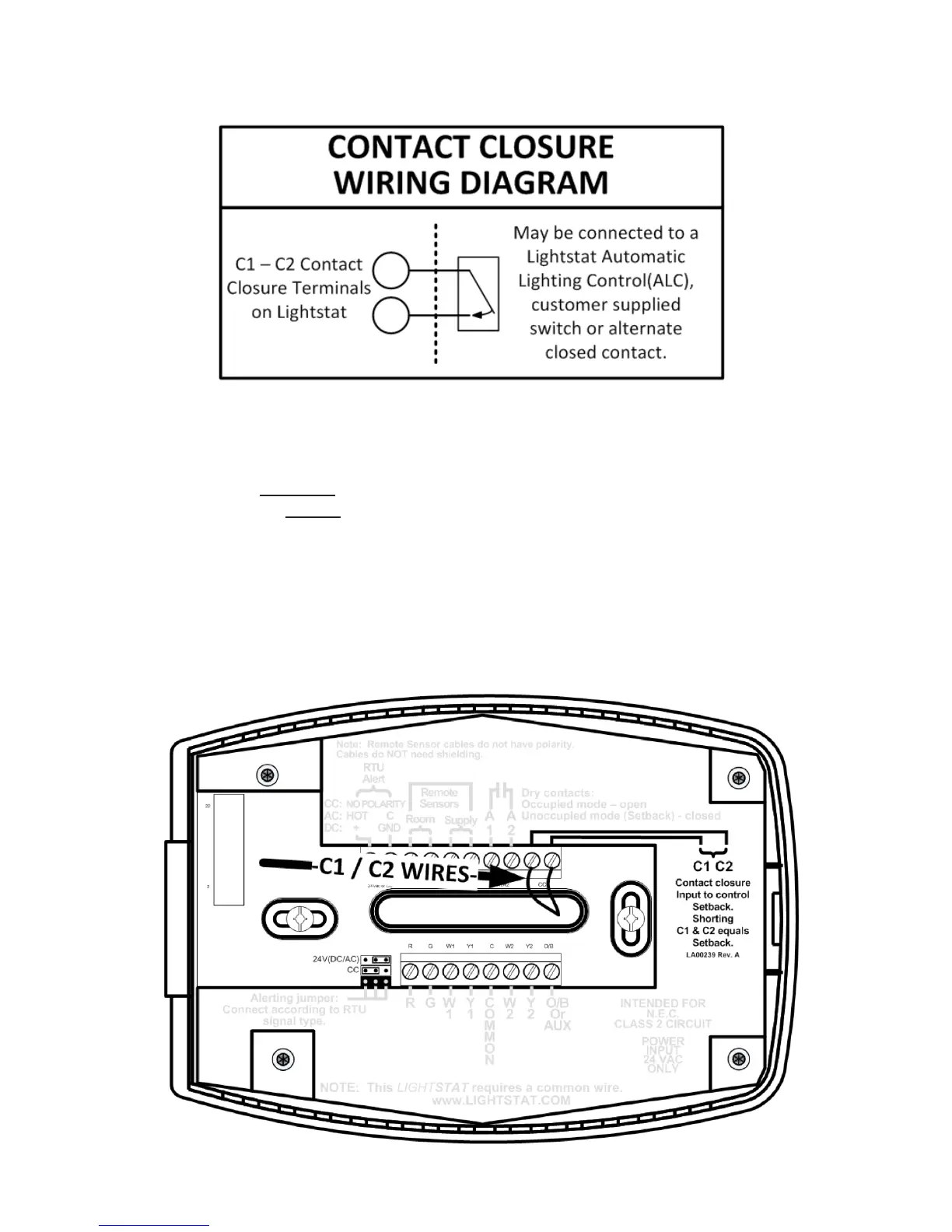

Non Lightstat Automatic Lighting Control Connections
Use #18 gauge 2-conductor twisted pair cable between the Lightstat TME and
the customer supplied switch or alternate closed contact.
C1- C2 cable does not have polarity, either wire may be connected to either
terminal. Cables do not have to be shielded.
At the Lightstat TME end connect the cable to the two terminals marked C1
and C2. At the other end connect it to the customer supplied switch or alternate
closed contact.
The C1 and C2 terminals are contact closure terminals and should not be
connected to any power.
