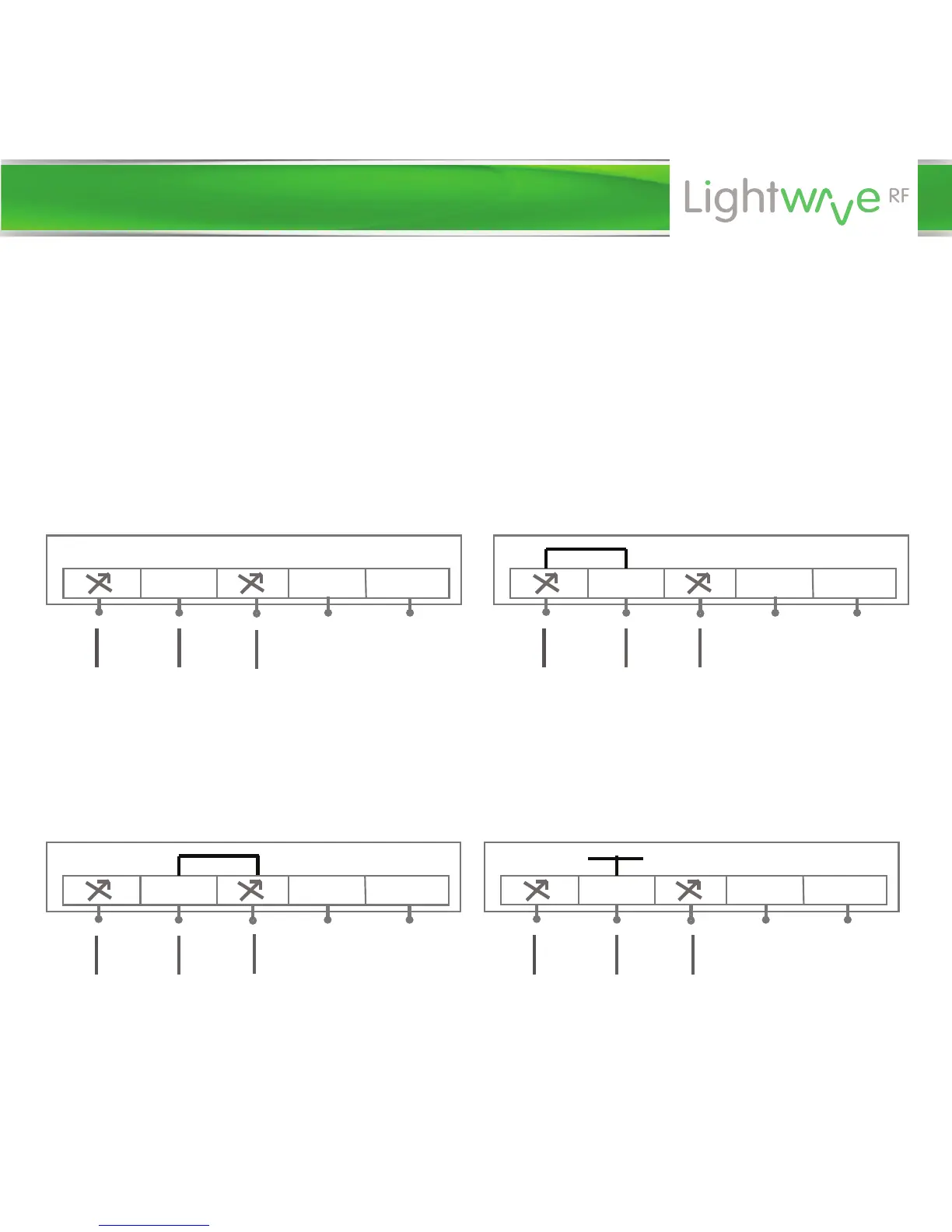

Installation
COM L N
L N
COM L N
L N
Position 1 - circuit 1 connected
COM L N
L N
Position 2 - circuit 2 connected
Switching between two Circuits
If a second load wire connected to another circuit is attached to the second
switched live terminal (see diagram), the relay can be used to switch between
two circuits. In addition to the on and o positions, there is also a ‘stop’
position which breaks contact with both of the right and lefthand circuits.
COM L N
L N
Stop Position (no circuit connected)
Circuit
live wire
Circuit
switched
live 1 (to
device)
Circuit
switched
live 2 (to
device)
