3. 4 - CHANGING FUSES
3.4 -
CHANGING FUSES
FUSES

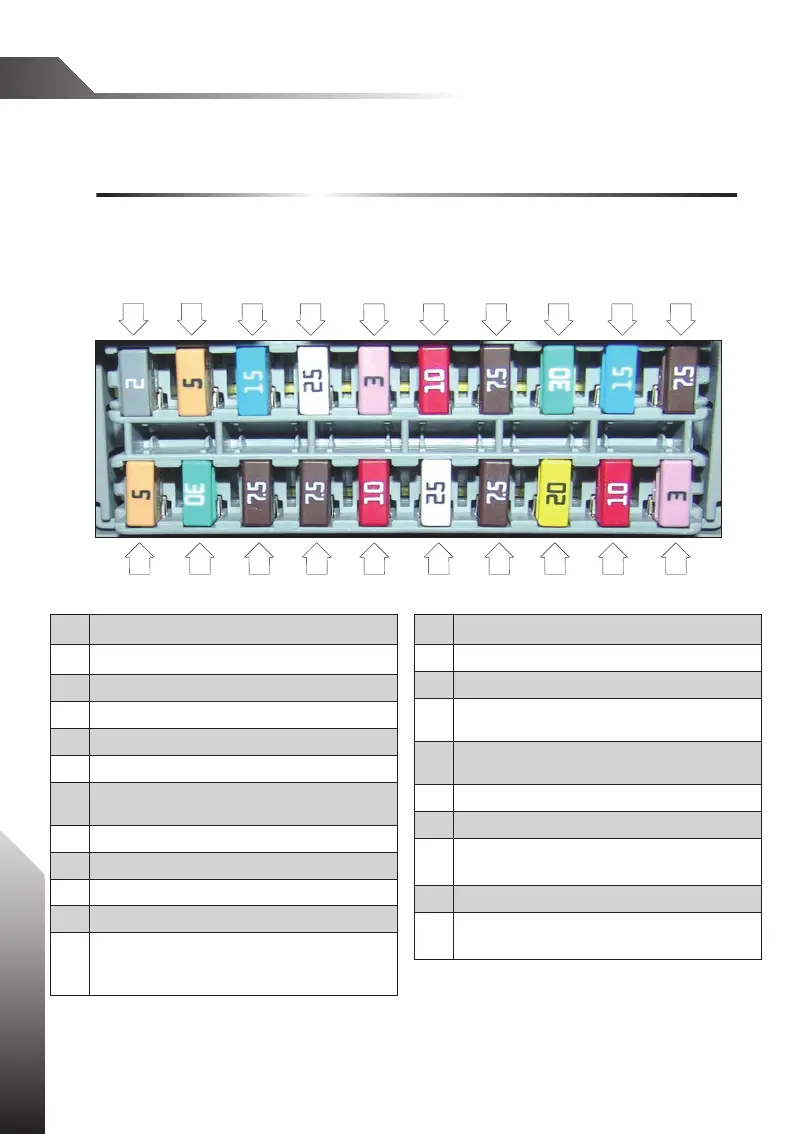

If there is no electrical power, first check the fuses which are located under
the dashboard on the passenger side
N°
Function
1 Indicators supply
2 Central locking
3 Preheating supply
4 Fuel pump supply
5 Ventilation supply (DCI engine)
6
Headlight adjustment control and motor +
APC central locking
7 Window opening control
8 12 V socket
9 Car radio
10 Speedometer unit accessory input
11
APC speedometer unit, indicator control
lever relay supply and APC supply to
engine cluster
N°
Function
12 Dci ECU or Progress alternator control
13 Ventilation motor for vehicle interior
14
Brake lights, gear lever lamps and reversing
lights
15
Defrost power supply, defrost relay and
windscreen wiper control
16 Headlight control power supply
17 Speedometer unit power supply
18
Power supply to front and rear windscreen
wiper return
19 Ceiling light and car radio power supply
20
Power supply to relay control and constant
+ to engine cluster
1
2
3
4
5
6
7
8
9
10
14
13
12
11
15 16
17
18 19
20
