Lilliput 664W - Wiring Instructions

* Option for product model with"/P" only.
11
V-mount battery plate (optional): Please refer to GP-L130AB type
battery specifications.
Anton Bauer mount battery plate (optional): Please refer to
GP-L130B type battery specifications.

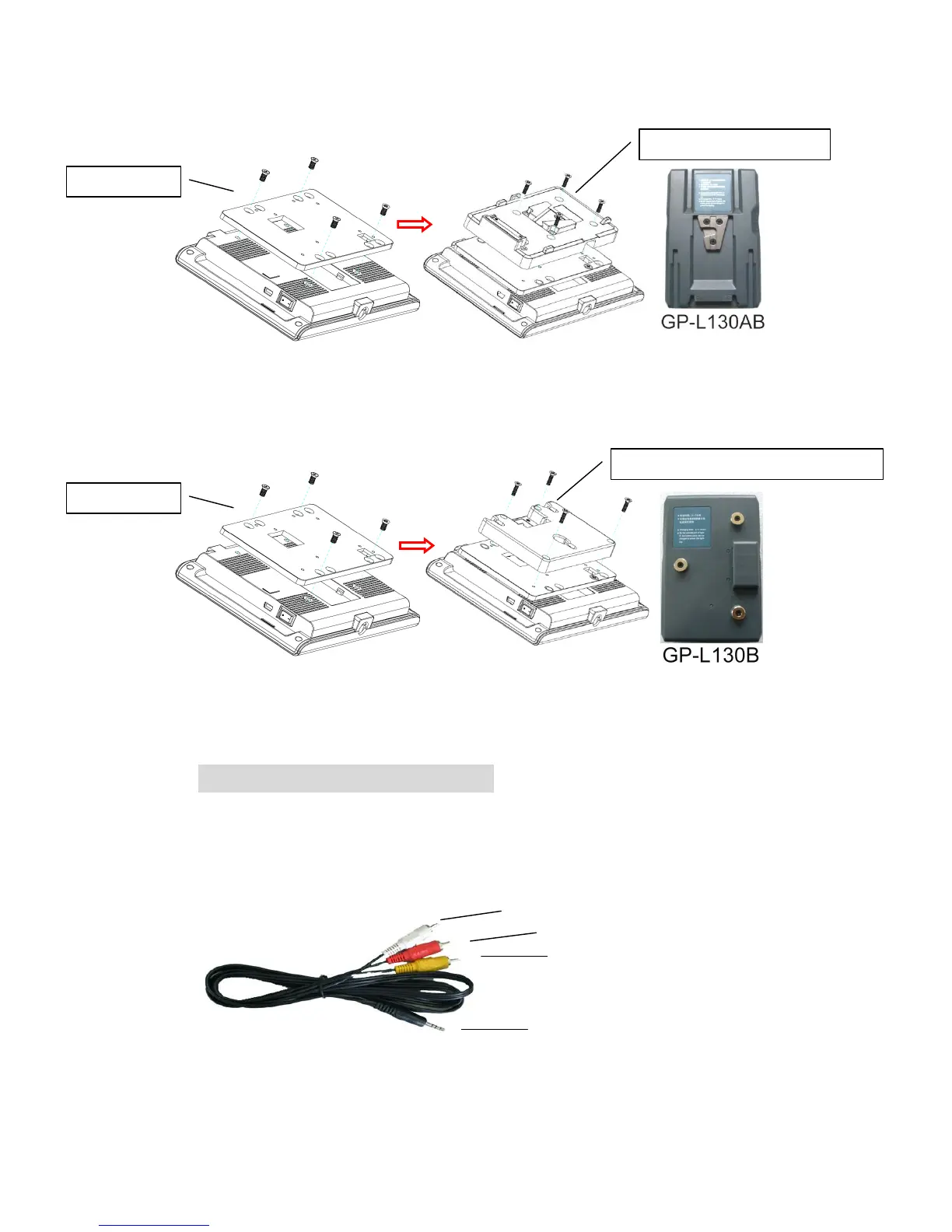

5. WIRING INSTRUCTIONS
Composite cable
White: audio L
Red: audio R
Yellow: video
A/V signal input
Plate Bracket
V-mount Battery Plate
Plate Bracket
Anton Bauer Mount Battery Plate
