Lilliput A7S User Manual

3

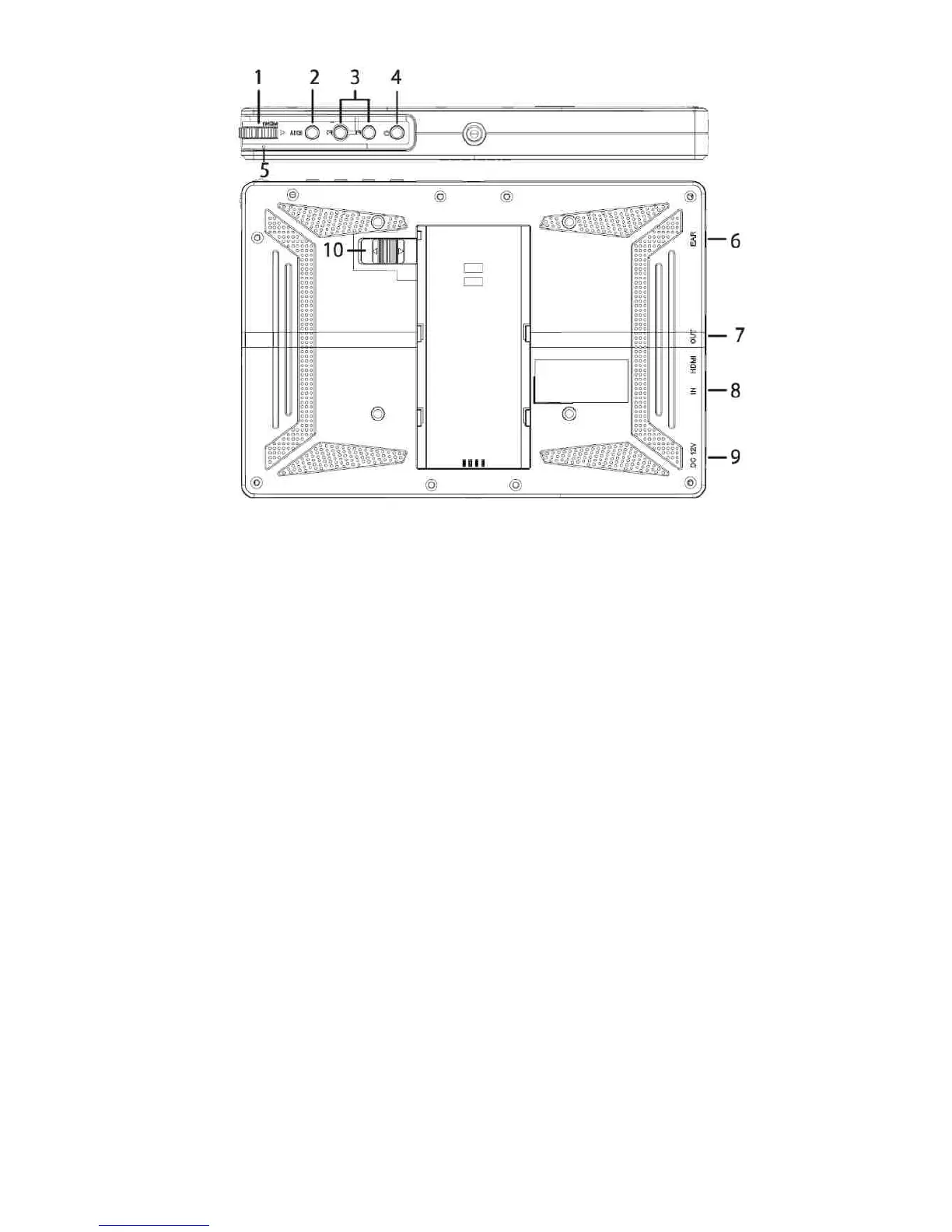

1. PRODUCT DESCRIPTION
1．MENU Dial:
Menu key: press the dial to display menu on the screen when
screen is lit.
Options key: left or right sliding the dial in the menu screen to
select the desired menu option.
Confirm key: press the dial to confirm the selected option.
2． EXIT：
To return or exit the menu function.
3． F1、F2 User-definable buttons
F1：Peaking F2： Lever Meter
4. Power on/off.
5．Battery indicator light.
6．Speaker.
7. HDMI output interface.
8. HDMI input interface.
9. DC 12V power input.
10. Battery plate switch.

Lilliput A7S Specifications

General

Screen Size	7 inches
Resolution	1920 x 1200
Aspect Ratio	16:10
Brightness	500 cd/m²
Contrast Ratio	1000:1
Inputs	HDMI
Power Consumption	12W
Input Voltage	7-24V
Viewing Angles	160°/160°
Weight	0.48 kg
