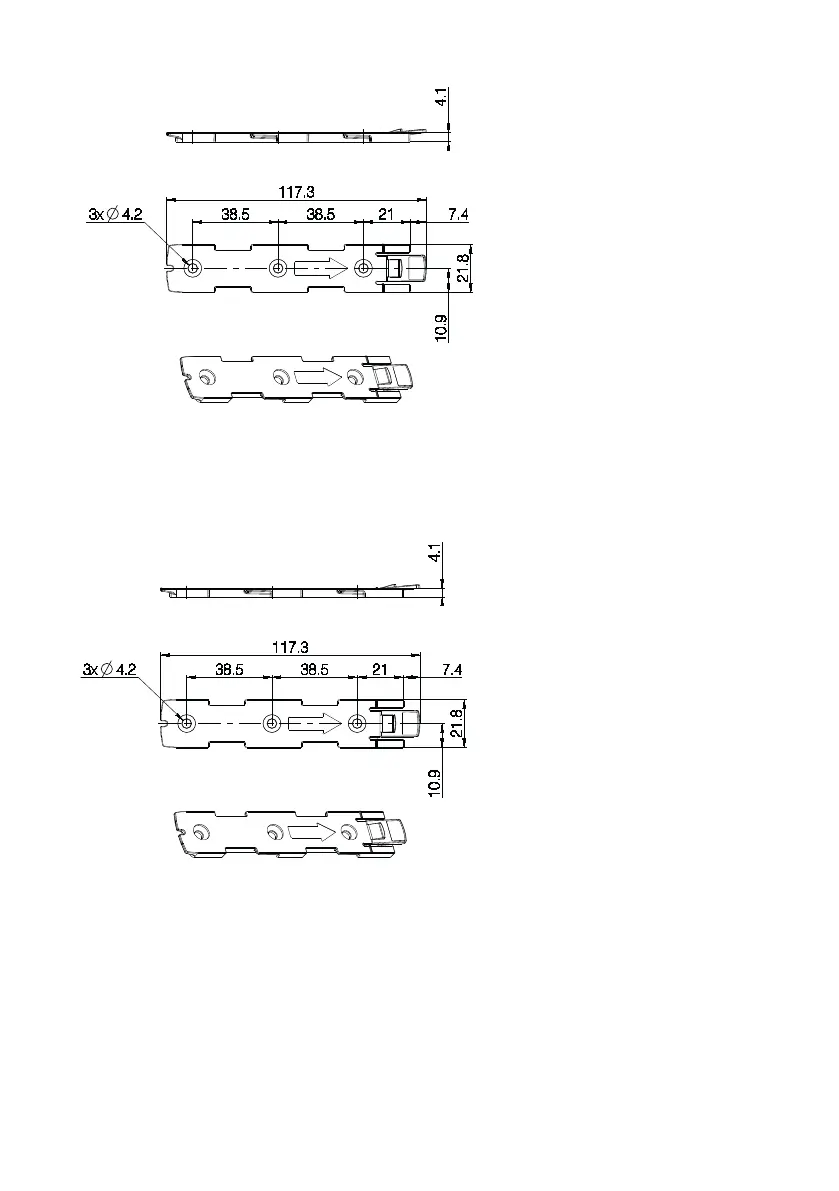

Drawing No.: 1015W4001
Mounting bracket (frame flat)
(Article No. 1015W1001)
Drawing No.: 1015W4009
Mounting bracket (frame flat) w/M4 nuts
(Article No. 1015W9009)
It is recommended to mount the CA20 in a position that allows water to escape.
Recommended torque: 0.6 Nm +/-0.1
The bracket can be mounted to the bed frame or any other application by means of one of the following mounting procedures:
1) M6 nut to be placed in bracket and fixed with M6 bolt from the rear side.
2) M5 machine screw with flat washer to be fixed through bracket with nut on the rear side.
3) Self-tapping screw to be placed through bracket and onto the frame.
