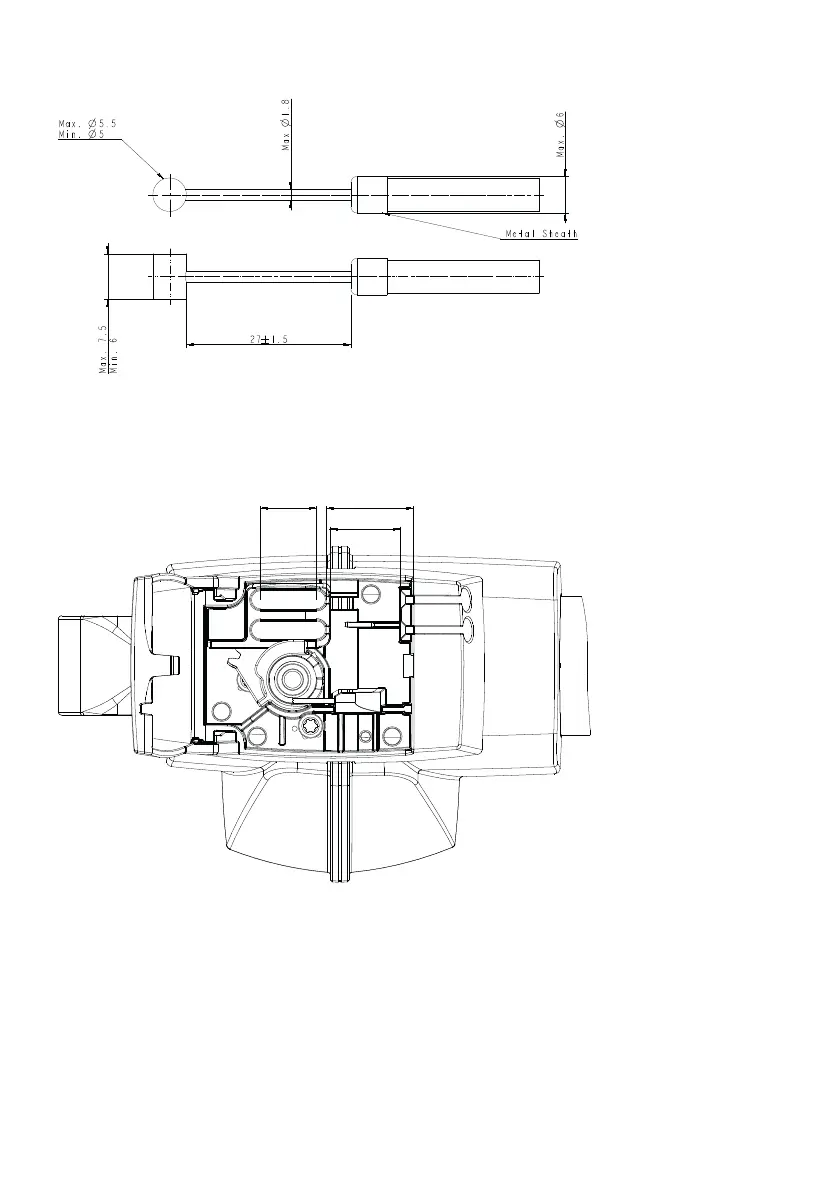

Mounting of the quick release cable:
Cable dimensions inside the quick
release housing required to ensure
correct operation.
Drawing no.: 0404016-1
20
25
15.7
Drawing no.: 0404017-1
Quick release mechanism in its
nonactivated position.
Note that the cable fixture has a
maximum travel distance of 20 mm
until it hits the housing wall that acts
as end stop.
The application design must ensure
that the quick release cable cannot be
pulled the full travel to end stop with
excessive pull force.
This is to protect the quick release
unit.
