At the point when the quick release
is activated with certainty, the cable
fixture has 7 mm travel left before it
hits the end stop.

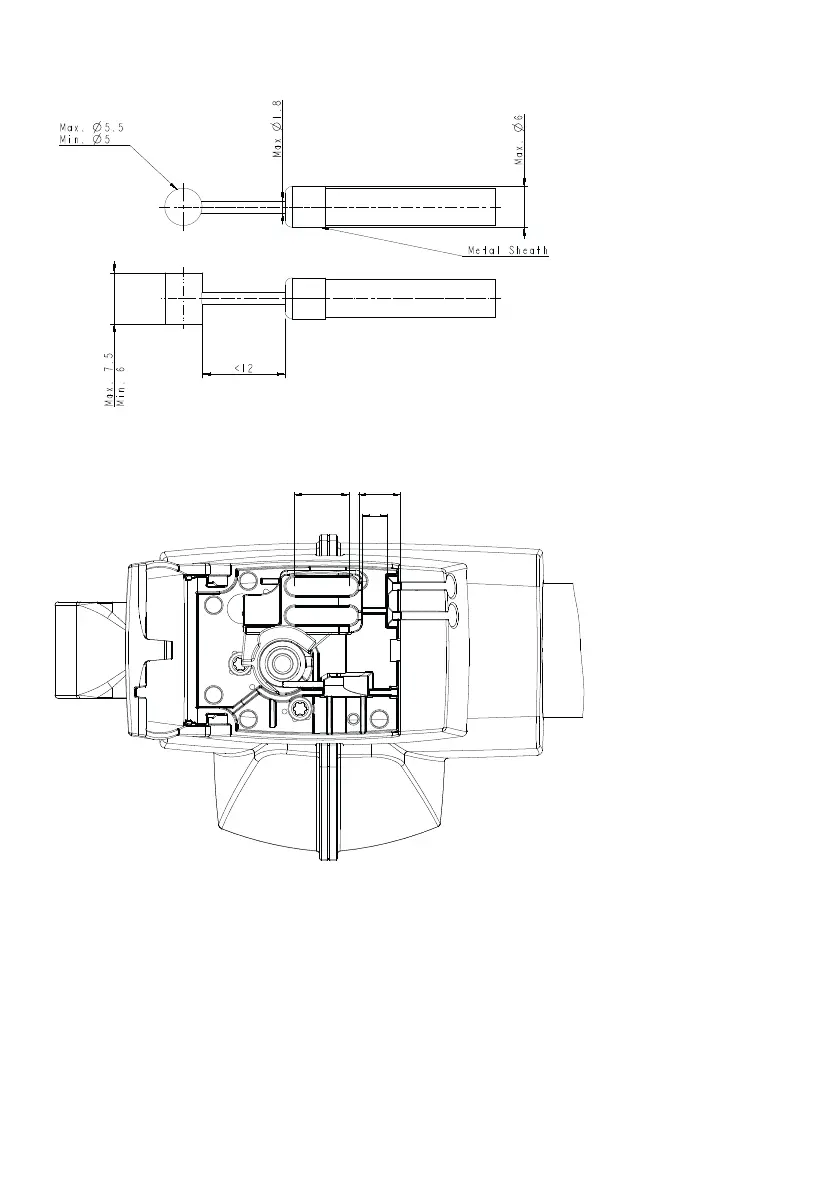

Drawing no.: 0404017-2
Drawing no.: 0404016-2
When the cable is pulled, the quick
release is activated with certainty
when the cable has less than 12 mm
travel distance to give.
12
7
15.7
