Page 236 of 295
Port 5
Port 4
Port 2
Port 1
OpenBus™ connection /
S1 pin 2 & 8 / S2 pin 2 & 9
OpenBus connection /
S1 pin 2 & 8 / S2 pin 2 & 9
OpenBus connection /
S1 pin 2 & 8 / S2 pin 2 & 9
OpenBus connection
Not available in version with internal UBL
Port 3

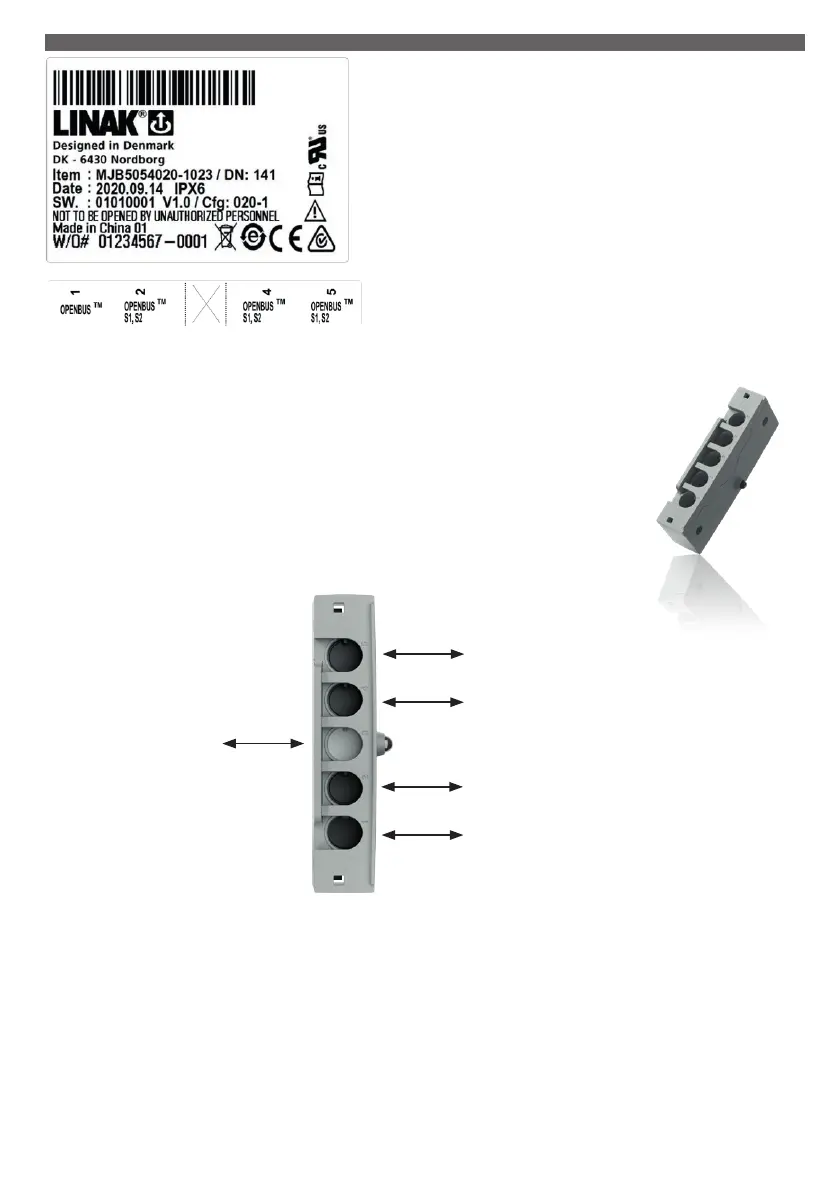

The modular junction box MJB5 Plus is designed for use together with OpenBus™
control boxes.
The MJB5 Plus makes it possible to connect multiple hand controls and attendant
controls. It can even be used for charging or to connect the Under Bed Light and 3
rd
party products.
MJB5 Plus with Under Bed Light (int.) and Switch Input (S1/S2)
MJB5 Plus versions 505-010 and 505-020:
The MJB5 Plus is a modular junction box with 3 different options, Under Bed Light
(UBL) and 2 different switch inputs, S1 and S2, which can be used for an external
switch.
UBL: The MJB5 Plus with UBL gives a guiding light when the patient leaves the bed and
makes it easy to find the way back to bed at night without disturbing other patients.
The MJB5 Plus has an LED integrated in the MJB5 Plus housing which makes it easy to
use.
External Switch (S1/S2): It is possible for the customer to connect a switch directly
to the MJB5 Plus. This can be used with a customised switch or control.
Usage
Compatibility: All OpenBus products
Operation temperature: +5
o
C to +40
o
C
Storage temperature: -10
o
C to + 50
o
C
Relative humidity: 20% to 80% non-condensing
Atmospheric pressure: 700 to 1060 hPa
Operational meters above sea level: Max. 3000 meters
Latex free: Yes
Approvals: IEC60601-1, ANSI/AAMI ES60601-1, CAN/CSA-22.2 No 60601-1,
Standard functionality:
UBL: The UBL LED can be switched on and off via the patient control (Key 1) or theattendant control (Key 2).
External Switch (S1/S2): The external switch is connected to S1: Pin 2 & 8/S2: Pin 2 and 9 on Port 2, Port 4 or Port 5.
The Switch input functionality can be enabled/disabled via the attendant control. The enable/disable status (switch status) is indicated on the OpenBus.
The switch input functionality is as standard to be used with a NO switch. When the switch is activated (NC), a notification is sent on the OpenBus (switch
notification).
12. MJB5 Plus UBL (int) (MEDLINE
®
